内置输入/输出系统
| S/PDIF输出端口 |
Y |
| ATX电源接头 |
Y |
| 并行ATA连接器 |
1 |
| SATA III连接器数量 |
5 |
| 火线接口数量 |
1 |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| COM连接器数量 |
1 |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
| EATX电源接头数量 |
1 |
| USB 2.0接口 |
4 |
处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
图像
| 最大图形显示内存 |
1024 MB |
| 板载图形适配器 |
Y |
| 图形适配器系列 |
AMD |
内容包装
| 试用软件 |
Antivirus |
| 包括驱动器 |
Y |
| 快速安装向导 |
Y |
性能
| 主板南桥 |
AMD SB850 |
| 音频系统 |
Realtek ALC 892 |
| 组件应用 |
PC |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
1 |
| HDMI端口数量 |
1 |
| eSATA端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| IEEE 1394/Firewire(火线)端口数量 |
1 |
扩展槽
| PCI Express x16 插槽 |
2 |
| PCI 插槽 |
3 |
| PCI Express × 1插槽 |
1 |
| PCI Express插槽版本 |
2.0 |
内存参数
| 内存通道支持 |
Dual |
| 最大内部存储 |
16 GB |
| 內存插槽数量 |
4 |
基本輸出輸入系統/BIOS
| ACPI的版本 |
2.0a |
| BIOS内存大小 |
16 MB |
| 基本输入输出系统类型 |
AMI |
另外
| 主板晶片 |
AMD 880G |
| 图形适配器 |
Radeon HD 4250 |
| 以太网路(RJ-45)连接接口数量 |
1 |

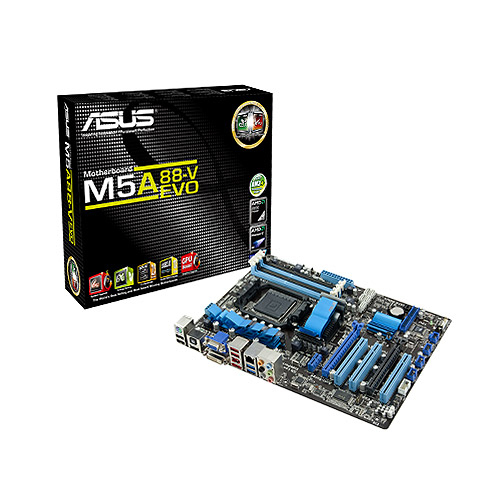

M5A88-V EVO, AMD AM3+, AMD 880G/SB850, 4 x DIMM DDR3, 5 x SATA 6.0Gb/s, 1 x eSATA 6.0Gbs, 1 x UltraDMA, 2 x PCI-E 2.0 x16, 1 x PCI-E 2.0 x1, 3 x PCI, Radeon HD 4250, 7.1ch HDA, Gigabit LAN, 2 x IEEE 1394a, 2 x USB 3.0, 12 x USB 2.0/1.1, ATX
<b>M5A88-V EVO</b>
<b>Maximized performance & energy optimization with Dual Intelligent Processors</b>
- AM3+ CPU Support Ready
- Dual Intelligent Processors - TPU & EPU
- Core Unlocker - Unlock the Potential, Turbocharge your Performance!
- GPU Boost Instant - iGPU Level Up!
- Turbo Unlocker - On demand real-time system tuning
<b>AMD® FX™ /Phenom™II /Athlon™II /Sempron™ 100 Series Processors</b>
This motherboard supports AMD® AM3+multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 32nm manufacturing process.
<b>AMD® 880G</b>
AMD® 880G Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM3+ and multi-core CPUs to provide excellent system performance and overclocking capabilities.
<b>CrossFireX Support</b>
Flexible Multi-GPU solutions, Your Weapon of Choice!
ATI’s CrossFireX™ boosts image quality along with rendering speed, eliminating the need to scale down screen resolution to get high quality images. CrossFireX™ allows higher antialiasing, anisotropic filtering, shading, and texture settings. Adjust your display configurations, experiment with the advanced 3D settings, and check the effects with a real-time 3D-rendered previews within ATI Catalyst™ Control Center.
<b>HDMI Support</b>
Enjoy Full HD 1080p Multimedia Home-Theater Entertainment
High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.
<b>DDR3 2000(O.C.)/1866(O.C.)/1600(O.C.)/1333/1066 support</b>
This motherboard supports DDR3 memory that features data transfer rates of 2000(O.C.)/1866(O.C.)/1600(O.C.)/1333/1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
<b>USB 3.0 support</b>
Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 - the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10x faster and is also backward compatible with USB 2.0 devices.
<b>Serial ATA 6.0 Gb/s support</b>
The AMD® SB850 Southbridge natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems.
<b>TPU</b>
The Ultimate Turbo Processor
Unleash your performance with ASUS’ simple onboard switch or TurboV utility. ASUS Auto tuning feature can intelligently optimize the system for fast, yet stable clock speeds, and the TurboV gives you the freedom to adjust CPU frequencies and ratios to optimize performance under varied system conditions.
<b>EPU</b>
Energy Efficiency All Around
Tap into the world's first real-time PC power saving chip through EPU utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity!
<b>Core Unlocker</b>
Intelligently Unlocks True Core Performance
ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just a simply switch. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes.
<b>GPU Boost</b>
Instant iGPU Level Up!
GPU Boost overclocks the integrated GPU in real time for the best graphics performance. User-friendly UI facilitates flexible frequency and voltage adjustments. Its ability to deliver multiple overclocking profiles also provides rapid and stable system-level upgrades.
<b>TurboV</b>
Feel the adrenaline rush of real-time OC-now a reality with the ASUS TurboV. This easy OC tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface makes overclock with just a few clicks away. Moreover, the ASUS OC profiles in TurboV provides the best O.C. settings in different scenarios.
<b>Auto Tuning</b>
Auto System Level Up
Auto Tuning is an intelligent tool that automates overclocking to achieve a total system level up. This tool also provides stability testing. Even O.C. beginners can achieve extreme yet stable overclocking results with Auto Tuning.
