性能
| 主板元件 |
ATX |
| 主板芯片组系列 |
Intel |
| 音频输出通道数量 |
8.1 channels |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 组件应用 |
PC |
| 可支持的Windows操作系统 |
Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8.1 Enterprise x64, Windows 8.1 Pro x64, Windows 8.1 x64 |
内存参数
| 可支持内存时钟速度 |
2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3733, 3866 MHz |
| 无错误检测和更正 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
64 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
128 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| ACPI的版本 |
6.0 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| S/PDIF输出端口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
2 |
| SATA III连接器数量 |
4 |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
2 |
| EATX电源接头数量 |
1 |
| 前面板音频接头 |
Y |
| M.2 (M) 插槽数量 |
2 |
联网
| 网路唤醒功能 |
Y |
| 局域网控制器 |
Realtek RTL8111H |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
2 |
| USB2.0端口的数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
扩展槽
| PCI Express X16（Gen 2.x）插槽 |
2 |
| PCI Express x1（Gen 3.x）插槽 |
4 |
处理器
| 处理器插槽 |
LGA 1151 (Socket H4) |
| 兼容处理器 |
Celeron, Core i3, Core i5, Core i7, Pentium |
另外
| 主板晶片 |
Intel Z270 |
| Intel Optane technology ready |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

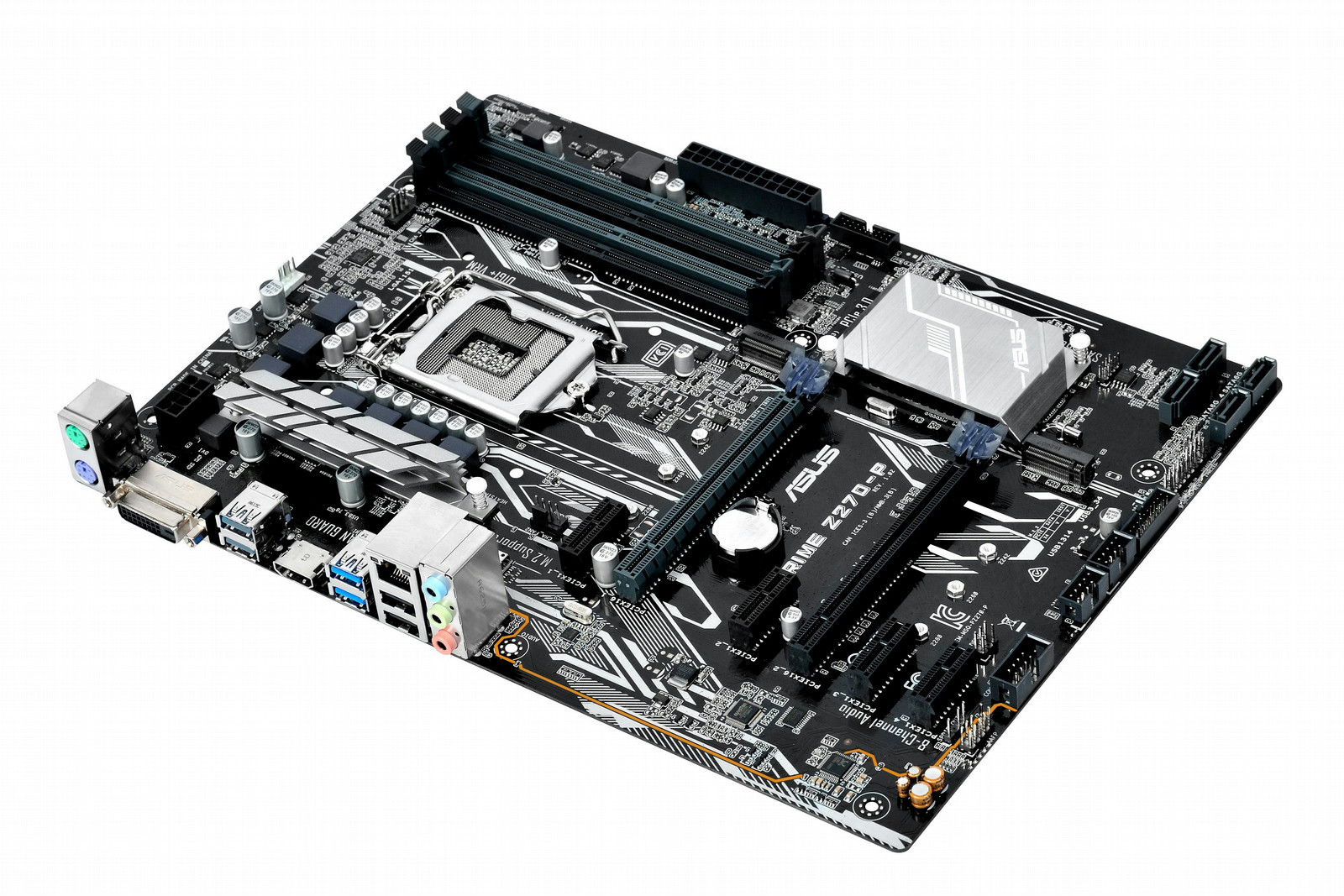

Intel Z270, 4 x DIMM, Max. 64GB, BIOS, ATX
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible - maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.
Built to Last
ASUS is the world's foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
