基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
| ACPI的版本 |
2.0 |
其他功能
| 控制器(2级)接口类型 |
UltraDMA 100 |
| 控制器接口类型 |
SATA 3 Gb/s |
内置输入/输出系统
| USB 2.0接口 |
2 |
| 串列ATA连接器数量 |
4 |
| 并行ATA连接器 |
1 |
| ATX电源接头 |
Y |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| EATX电源接头数量 |
1 |
| 前面板音频接头 |
Y |
内存参数
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
2 |
| 最大内部存储 |
8 GB |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
2 |
背板输出端口
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| COM接口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
另外
| 图形适配器 |
GMA X4500 |
| 以太网路(RJ-45)连接接口数量 |
1 |

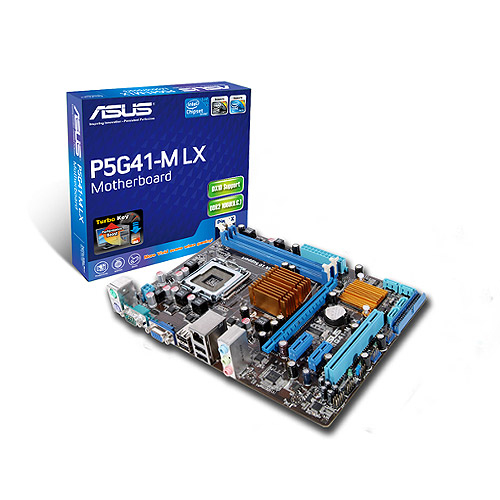

P5G41-M LX - Intel® Socket 775, Intel® G41 /ICH7, 1333/1066/800 MHz, 2 x240 DIMM Max. 8 GB DDR2 1066/800/667 Non-ECC, 1 x PCIe x16, 2 x PCIe x1, 1 x PCI, Intel® GMA X4500, 1 xUltraDMA 100, 4 xSATA 3 Gb/s, Fast Ethernet, ALC662-VC1 6-ch., uATX
LGA775 Intel® Core™2 Processor Ready
This motherboard supports Intel® LGA775 Core™ 2 Quad/ Core2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1333/ 1066/ 800 MHz FSB. This motherboard also supports Intel® CPUs in the 45nm manufacturing process.
Intel® G41 Chipset
The Intel® G41 Express Chipset is the latest chipset designed to support dual-channel DDR2 1066(O.C)/800 / 667 architecture, 1333 / 1066 / 800 FSB (Front Side Bus), and multi-core CPUs. It is embeded with the next-generation Intel® Graphics Media Acceleratior X4500. The Intel® G41 Express Chipset delivers optimized 3D graphics performance and support for Microsoft DirectX10. Shader Model 4.0 and OpenGL 2.1. It especially includes Intel® Fast Memory Access technology the significantly optimized the use of available memory bandwith and reduces the latency of the memory accesses.
Intel® IT Director Technology
Intel IT Director is a reactive software product that monitors security,data protection and health of a PC or network of PCs. It includes a centrally monitored dashboard for overseeing a network of wired or wireless PCs within a Local Area Network.
ASUS CrashFree BIOS 3
ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to restore a corrupted BIOS file using the bundled support DVD or USB disk that contains the latest BIOS file.
Turbo Key
ASUS Turbo Key allows you to turn the PC power button into an overclocking button. After you easy setup, Turbo Key boosts performances without interrupting ongoing work or games, simply through pressing the button.
EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility.
MyLogo 2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
High Definition Audio
Enjoy high-end sound system on your PC!
The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
ASUS Q-Fan
ASUS Q-Fan technology intelligently and automatically adjusts CPU fan speeds according to system load and temperature, enabling users to work in a distraction-free environment with minimal noise.
GreenASUS
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
