基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| ACPI的版本 |
2.0 |
内置输入/输出系统
| USB 2.0接口 |
4 |
| S/PDIF输出端口 |
Y |
| 串列ATA连接器数量 |
4 |
| COM连接器数量 |
1 |
| 机箱风扇接头数量 |
1 |
内存参数
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
2 |
| 最大内部存储 |
8 GB |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
1 |
背板输出端口
| PS/2连接埠数量 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
另外
| 图形适配器 |
GMA X4500 |
| 以太网路(RJ-45)连接接口数量 |
1 |

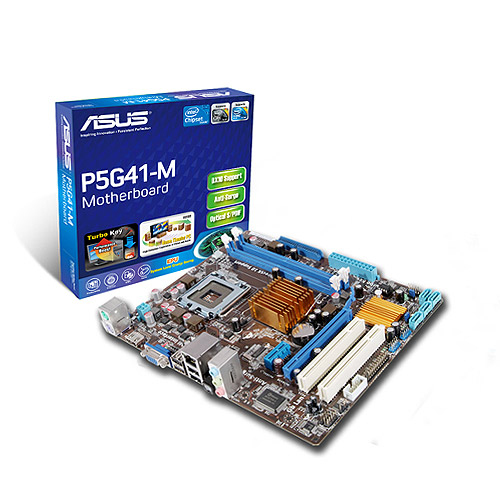

P5G41-M - Intel® Socket 775, 1333/1066/800 MHz, Intel® G41 /ICH7, Intel® GMA X4500, PCIe Gb LAN, uATX
LGA775 Intel® Core™2 Processor Ready
This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1333/1066/800MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.
HDMI™ Interface
HDMI (High-Definition Multimedia Interface) is the first and only industry-supported, uncompressed, all digital audio and video interface via a single cable and is HDCP compliant allowing playback of HD DVD, Blu-ray Disc and other protected content.The interface of this motherboard supports dual VGA output both HDMI and RGB.
Intel® G41 Chipset
The Intel® G41 Express Chipset is the latest chipset designed to support dual-channel DDR2 1066(O.C)/800 / 667 architecture, 1333 / 1066 / 800 FSB (Front Side Bus), and multi-core CPUs. It is embeded with the next-generation Intel® Graphics Media Acceleratior X4500. The Intel® G41 Express Chipset delivers optimized 3D graphics performance and support for Microsoft DirectX10. Shader Model 4.0 and OpenGL 2.1. It especially includes Intel® Fast Memory Access technology the significantly optimized the use of available memory bandwith and reduces the latency of the memory accesses.
EPU-L
The ASUS EPU (Energy Processing Unit) provides total system power management by detecting current PC loadings and intelligently moderating power in real-time. It automatically provides the most appropriate power usage to save power and money!
ASUS Innovative FeaturesFeatures
ASUS Q-Fan
Adjusts both CPU fan and chassis fan speeds according to system loading
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.
Turbo Key
Touch n Boost!
ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!
MyLogo 2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
ASUS CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
EZ Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
