内存参数
| 可支持内存时钟速度 |
1066 MHz |
| 无错误检测和更正 |
Y |
| 內存插槽数量 |
2 |
| 最大内部存储 |
4 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| ACPI的版本 |
2.0 |
背板输出端口
| 并口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| COM接口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
其他功能
| 操作特性 |
WOL,PXE,RPL,WOR,PME Wake Up |
内置输入/输出系统
| USB 2.0接口 |
2 |
| S/PDIF输出端口 |
Y |
| 串列ATA连接器数量 |
4 |
| ATX电源接头 |
Y |
| 软盘驱动器接口 |
Y |
| 周边（莫仕）电 源连接器（4针） |
1 |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
扩展槽
| PCI 插槽 |
2 |
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
1 |
另外
| 图形适配器 |
GMA 3100 |
| 以太网路(RJ-45)连接接口数量 |
1 |

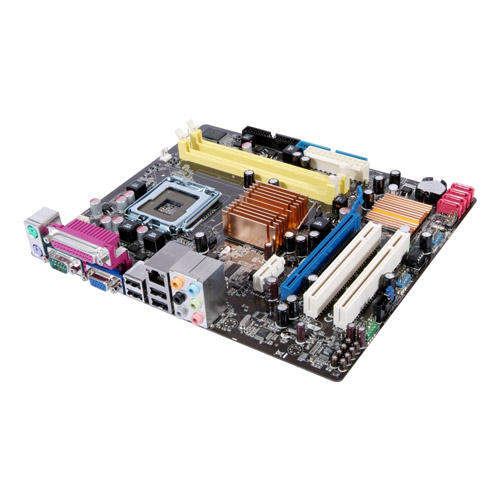

P5KPL-AM - uATX, Intel G31 Intel ICH7, 2 x DIMM Max. 4 GB, DDR2 1066, PCIe x16, PCIe x1, 2 x PCI, Intel GMA 3100, 4 xSATA 3 Gb/s, 8 USB 2.0, VGA
P5KPL-AM with Intel G31 chipset inside supports Intel Quad-core CPU and features 1600(OC)/1333/1066/800MHz FSB, PCI Express x 16, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 1066(O.C.)/800/667 memory, and 8 Channel HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5KPL-AM is the most affordable all-in-one solution platform for Intel® Core™2 Processor with Intel G31 chipset inside.
Intel® Quad Core Processor Ready
This motherboard supports the latest Intel® Quad-core processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. It´s excellent for multi-tasking, multi-media and enthusiastic gamers with 1600(O.C.)/1333/1066/800 MHz FSB. Intel® Quad-core is one of the most powerful CPU in the world.
LGA775 Intel® Core™2 Processor
This motherboard supports the latest Intel® Core™2 processors in LGA775 package. With new Intel® Core™ microarchitecture technology and 1600(O.C.)/1333/1066/800 MHz Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world.
Intel® G31 Chipset
The Intel® G31 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel® Graphics Media Accelerator 3100. It supports 1333MHz FSB (front-side-bus), and delivers breakthrough advances in 3D and 2D graphics; and video capabilities. This integrated chipset is able to meet the changing display requirements of visually rich applications and features the Intel® Clear Video Technology - which trailblazes new standards in high-definition video, crisp imaging, and accurate color control.
FSB 1600 support (O.C.)
ASUS´s exclusive overclocking design now unleashes the ultimate potential of the Intel® Core™2 processor. With the new Intel 45nm micro-architecture technology and FSB 1600 (O.C.) / 1333 / 1066 / 800 MHz, this motherboard allows you to enjoy the latest technology supported by one of the most powerful and energy efficient CPUs in the world.
Dual-Channel DDR2 1066(O.C.)
Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market.
PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 and x4 also outperforms PCI interface with its exceptional high bandwidth. The high speed PCI Express interface creates new usages on desktop PCs.
8 Channel High Definition Audio
Enjoy high-end sound system on your PC! The onboard HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.
SATA 3Gb/s
Serial ATA3.0Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility.
MyLogo2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
EZ Flash2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a floppy disk before entering the OS.
CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
ASUS Q-Fan
ASUS Q-Fan technology intelligently adjusts CPU fan speeds according to system loading to ensure quiet, cool and efficient operation.
Compliance with the RoHS Directive
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
