性能
| 主板元件 |
ATX |
| 音频系统 |
VIA 1708S |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1333, 1600, 1866, 2000, 2200 MHz |
| 无错误检测和更正 |
Y |
| 错误更正代码 |
Y |
| 内存通道支持 |
Dual |
| 內存插槽数量 |
4 |
| 最大内部存储 |
16 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
16 MB |
| 基本输入输出系统类型 |
AMI |
| ACPI的版本 |
2.0a |
其他功能
| 控制器(2级)接口类型 |
UltraDMA 133/100 |
| 控制器接口类型 |
SATA 3.0 Gb/s |
内置输入/输出系统
| USB 2.0接口 |
2 |
| S/PDIF输出端口 |
Y |
| 并行ATA连接器 |
1 |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| SATA II连接器数量 |
6 |
| CD/AUX音频输入 |
Y |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| EATX电源接头数量 |
1 |
| 前面板音频接头 |
Y |
扩展槽
| PCI 插槽 |
3 |
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
3 |
| PCI Express插槽版本 |
2.0 |
背板输出端口
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
另外
| 主板晶片 |
Intel H55 |
| 以太网路(RJ-45)连接接口数量 |
1 |

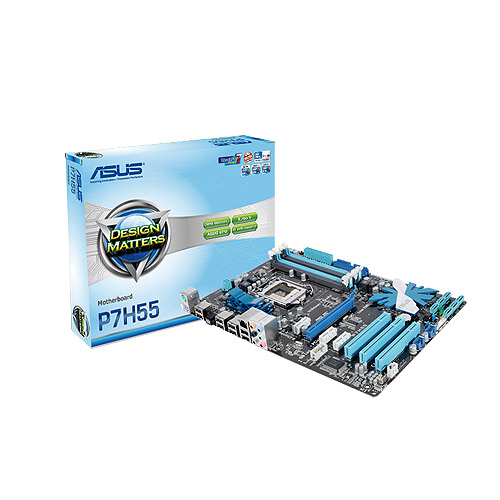

P7H55 - Intel Socket 1156, Intel H55 Express, 4 x DIMM, Max. 16 GB, DDR3 2200/2000/1866/1600/1333 ECC/Non-ECC, 1 x PCIe 2.0 x16, 3 x PCIe 2.0 x1 (2.5GT/s, gray slots), 3 x PCI, 6 xSATA 3.0 Gb/s, 1 xUltraDMA 133/100, Gigabit LAN, VIA 1708S 8-Ch., ATX
LGA1156 Intel® Lynnfield/Clarkdale Processor Ready
This motherboard supports the latest Intel® Lynnfield and Clarkdale processors in LGA1156 package, which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing higher graphics performance.
PCIe 2.0
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance.
Intel H55
The Intel® H55 Express Chipset is the latest one-chipset design to support latest 1156 socket Intel® Core™ i7/ Core™ i5/Core™ i3/ Pentium® Processors. Intel® H55 chipset improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability.
Dual-Channel DDR3 2200 (O.C.) / 2000 / 1866 / 1600 / 1333 / 1066 support
The motherboard supports DDR3 memory that features data transfer rates of 2200 (O.C.) / 2000 / 1866 / 1600 /1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
Turbo Key
Touch-n-Boost!
ASUS Turbo Key allows the user to turn the PC power button into an overclocking button. After the easy setup, Turbo Key can boost performances without interrupting ongoing work or games - with just one touch!!
ASUS TurboV
Easy, Real-Time O.C. Tunings
Feel the adrenaline rush of real-time O.C. - now a reality with the ASUS TurboV. This easy O.C. tool allows you to overclock without exiting or rebooting the OS; and its user-friendly interface makes overclock with just a few clicks away. Moreover, the ASUS OC profiles in TurboV provides the best O.C. settings in different scenarios.
ASUS EPU
System Level Energy Saving
The new ASUS EPU - the world´s first power saving engine, has been upgraded to a new six engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card / integrated GPU, memory, chipset, hard drives and CPU cooler / system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking - helping save power and money.
ASUS Express Gate
0 to Internet in Seconds!
Express Gate™ is an ASUS exclusive OS that provides you with quick access to the Internet and key applications before entering Windows®.
MemOK!
Any Memory is A-OK!
MemOK! quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of a button to patch memory issues. MemOK! determines failsafe settings and dramatically improves your system boot success. Get your system up and running in no time!
ASUS Fanless Design - Heatsink solution
The crystal-shaped heatsink features 0-dB thermal solution that offers users a noiseless PC environment. Not only the beautiful shape upgrades the visual enjoyment for motherboard users, but also the heatsink design lowers the temperature of the chipset and power phase area through high efficient heat-exchange. Combined with usability and aesthetics, the ASUS crystal-shaped heatsink will give users an extremely silent and cooling experience with the elegant appearance!
EZ-Flash 2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility.
O.C. Profile
Conveniently store or load multiple BIOS settings
Freely share and distribute favorite overclocking settings The motherboard features the ASUS O.C. Profile that allows users to conveniently store or load multiple BIOS settings. The BIOS settings can be stored in the CMOS or a separate file, giving users freedom to share and distribute their favorite overclocking settings.
CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to external home theater audio systems via optical S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It allows to transfer digital audio without converting to analog format and keeps the best signal quality.
Gigabit Lan support
The on-board LAN controller is a highly integrated GbLAN controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems.
8-channel Audio
Enjoy high-end sound system on your PC!
The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology.
GreenASUS
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
