性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 音频系统 |
Realtek ALC887 |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1333, 1600, 1800, 1866, 2133, 2200 MHz |
| 无错误检测和更正 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存通道支持 |
Dual |
| 內存插槽数量 |
4 |
| 最大内部存储 |
16 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
AMI |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
2.0a |
其他功能
| 操作特性 |
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE |
内置输入/输出系统
| USB 2.0接口 |
3 |
| 并行ATA连接器 |
1 |
| ATX电源接头 |
Y |
| SATA II连接器数量 |
6 |
| PS电源接口 （8针） |
Y |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
| 机箱风扇接头数量 |
1 |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
2 |
| PCI Express插槽版本 |
2.0 |
背板输出端口
| PS/2连接埠数量 |
1 |
| 耳机输出端口 |
1 |
| S/PDIF输出接口 |
Y |
| 麦克风/音频输入插孔 |
Y |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
另外
| 主板晶片 |
Intel H55 |
| 以太网路(RJ-45)连接接口数量 |
1 |

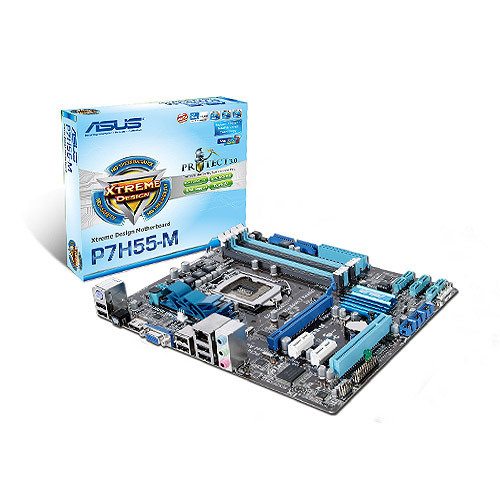

P7H55-M, Socket 1156, Intel H55, DDR3, SATA III, USB 2.0, Gigabit Ethernet, Micro ATX
This motherboard supports the latest Intel® Lynnfield and Clarkdale processors in LGA1156 package, which has memory and PCI Express controller integrated to support 2-channel (4 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes providing great graphics performance. Intel® Lynnfield and Clarkdale processors are the most powerful and energy efficient CPUs in the world. Moreover, Intel® Clarkdale integrated Graphics Processing Unit (GPU) processors which goes with Intel® H55 chipset with VGA out can bring you to the whole new experience of the next generation VGA performance. It also provides separated 3D, 2D and Video Engines to execute different graphic control in hardware.
The Intel® H55 Express Chipset is the latest one-chipset design to support latest 1156 socket Intel® Core™ i7/ Core™ i5/Core™ i3/ Pentium® Processors. Intel® H55 chipset provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Using Intel Core™ i5 6 Series, Core™ i3 5 Series and Pentium® CPU with H55 Express Chipset to enjoy the latest Intel integrated graphic performance!
The motherboard supports DDR3 memory that features data transfer rates of 2200(O.C.) / 2133 / 2000/ 1866 / 1800/ 1600/ 1333/ 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
The new ASUS EPU—the world’s first power saving engine, has been upgraded to a new 4 engine version, which provides total system power savings by detecting current PC loadings and intelligently moderating power in real-time. With auto phase switching for components (which includes the CPU, VGA card/ integrated GPU, hard drives and CPU cooler / system fans), the EPU automatically provides the most appropriate power usage via intelligent acceleration and overclocking—helping save power and money.
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while minimizing the impact on the environment.
