内置输入/输出系统
| 通过内部接头的串行端口 |
Y |
| 迷你SATA端口数量 |
1 |
| USB 2.0接口 |
3 |
| ATX电源接头 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| SATA III连接器数量 |
4 |
| CPU风扇接口 |
Y |
| COM连接器数量 |
1 |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
性能
| 主板元件 |
Mini ITX |
| 主板芯片组系列 |
Intel |
| 英特尔®图形技术处理器 |
Y |
| 音频系统 |
Realtek ALC887-VD |
| 组件应用 |
Nettop |
| 冷却方式 |
Passive |
内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
SO-DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
16 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
2.0a |
扩展槽
| Mini PCI Express插槽 |
2 |
| PCI Express X4（Gen 3.x）插槽 |
1 |
| Mini PCI Express插槽（半） |
1 |
| Mini PCI Express插槽（全） |
1 |
背板输出端口
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
处理器
| 英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-4xxx, i5-4xxx, i7-4xxx |
另外
| 主板晶片 |
Intel Q87 |
| PCI Express插槽数量 |
3 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
2 |

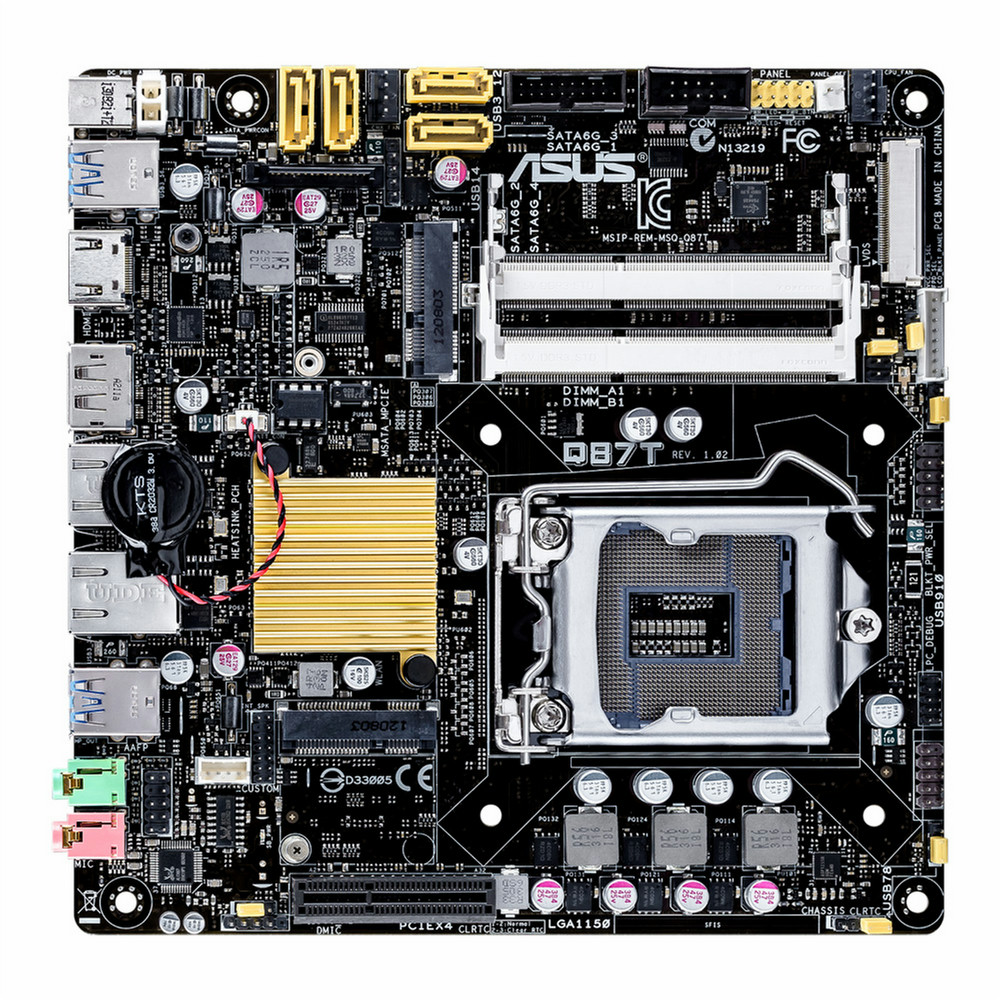

Q87T, LGA1150, Q87, 2x SO-DIMM, SATAIII, mSATA, Gigabit Ethernet, Realtek ALC887-VD, USB 3.0, HDMI, DP, Thin Mini ITX
Q87-based Thin Mini-ITX motherboard for DIY all-in-one (AIO) or ultra-slim systems
- New UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info added
- USB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0
- Network iControl: Real-time network bandwidth management
- Fan Xpert 2: Comprehensive controls for the perfect cool and quiet balance
- CrashFree BIOS 3: Restore corrupted BIOS data from USB storage
- AI Suite 3: One-stop access to innovative ASUS features
Build slim. Build with Q87T.
Want to build a DIY PC without the depth? Then you need Q87T – the first Thin Mini-ITX motherboard from ASUS. Measuring less than 2.5cm tall and with a built-in connector for external DC power, it is the perfect choice for all-in-one (AIO) PCs and other slimline builds. Building ‘thin’ is simpler than you might think. For more information and help with putting together slimline systems with ASUS Q87T Thin Mini-ITX motherboard, visit
New UEFI BIOS – friendlier and more Intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
USB 3.0 Boost (UASP Support)
170% faster transfer speeds than traditional USB 3.0
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction.
- World’s 1st USB 3.0 UASP support – instantly 170% faster.
- Complete USB 3.0 solution – performance boost under Turbo Mode or UASP Mode for most USB devices.
- Simple plug and boost – auto detection design ensures best performance.
AI Suite 3
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
