内存参数
| 可支持内存时钟速度 |
1333, 1600 MHz |
| 支持UDIMM时钟速度 |
1066, 1333 MHz |
| 内存通道支持 |
Quad |
| 支持UDIMM模组容量 |
2GB, 4GB, 8GB |
| 最大内部存储 |
512 GB |
| DIMM插槽数量 |
16 |
| 支持的内存类型 |
DDR3-SDRAM |
| 支持RDIMM模块的容量 |
16GB, 2GB, 4GB, 8GB |
| 支持RDIMM时钟速度 |
1066, 1333, 1600 MHz |
| 最大RDIMM内存 |
512 GB |
内置输入/输出系统
| TPM（可信任安全平台模组）接口 |
Y |
| USB 2.0接口 |
3 |
| 并行接口 |
N |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
8 |
| 串行端口接头连接器 |
2 |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
4 |
处理器
| 可支持处理器数量 |
2 |
| 处理器生产厂商 |
Intel |
| 可支持的处理器的核心数量 |
4, 8 |
| 英特尔® 至强® 系列 |
E5-2600 |
| 支持QPI |
6.4, 7.2, 8 GT/s |
图像
| 板载图形适配器内存 |
16 MB |
| 板载图形适配器 |
Y |
扩展槽
| PCI Express x16 插槽 |
6 |
| PCI Express配件 |
1x16 |
| PCI Express插槽版本 |
3.0 |
背板输出端口
| PS/2连接埠数量 |
1 |
| 麦克风/音频输入插孔 |
N |
| VGA（D-SUB）端口数量 |
1 |
存储控制器
| 硬盘接口 |
Serial ATA II, Serial ATA III |
联网
| 以太网接口类型 |
Gigabit Ethernet |
| 无线局域网连接 |
N |
另外
| 主板晶片 |
Intel C602 |
| PCI Express插槽数量 |
6 |
| 以太网路(RJ-45)连接接口数量 |
3 |
| 以太网连接器 |
Y |

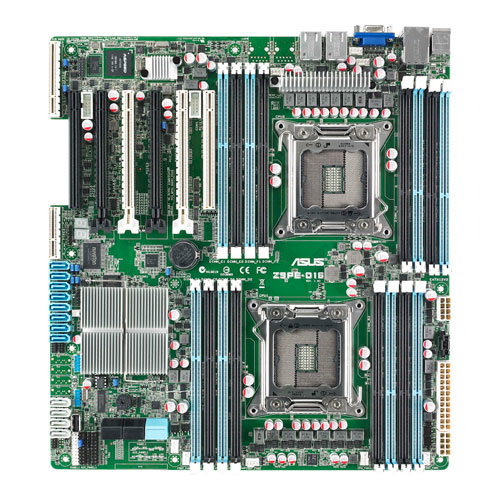

Z9PE-D16/2L, 2x Socket 2011, Intel Xeon processor E5-2600, Intel C602-A PCH, 16 Slots (4-channel per CPU, 8 DIMM per CPU), Maximum 512GB RDIMM
Innovative technologies deliver easy expandability, complete storage and high power efficiency
Complete storage support
The Z9PE-D16/2L boasts multiple SAS/SATA implementation, from Intel® AHCI to ASUS PIKE, supporting the latest SATA/SAS 6Gb/s technology. While ASUS optional PIKE provides slim-sized and flexible storage options, direct SAS RAID upgrades can be achieved via a unique slot — without sacrificing expansion capability. ASUS PIKE further provides customers with multiple I/O options and RAID functionality, and various storage expansion choices for different applications.
Green and highly power efficient
Z9PE-D16/2L voltage regulation manages up to 90% peak power efficiency, with 88%+ during heavy CPU loading. This ensures high power efficiency for the entire system to help customers save operating costs.
Build in BMC engine, KVM-over-IP enabled by ASMB6 module for easy troubleshooting
The ASMB6-iKVM enables dashboard system health monitoring, remote power on/off and control, virtual media over LAN, and management LAN fail-over support. In addition, the ASMB6 function is based on BIOS-level access, so even if the server operating system is down or offline, the KVM module can still provide round-the-clock remote monitoring and diagnosis through a user-friendly web-based graphical interface through all major browsers.
Cutting-edge architecture
The Z9PE-D16/2L supports the latest Intel® E5-2600 series processors (Sandy Bridge-EP). Through ASUS design and research expertise, it has been adapted to support upcoming E5-2600 V2 processors (Ivy Bridge-EP) to protect customer investment. Featuring 16-DIMM slots, it can take up to 512GB of DDR3 1600/1333/1066 RDIMM, and DDR3 1333/1066 UDIMM/LRDIMM memory, providing high computing capability. Additionally, with PCI Express 3.0 support, the Z9PE-D16/2L enables higher bandwidth to meet various demanding application requirements.
Server-class dual LAN connection
The new serverboard ships with the industry’s first fully integrated Intel® I350 dual-port Ethernet controller, which supports energy efficient Ethernet and DMA coalescing and offers reliable and fast network connections. With VT-d technology and new VMDq queuing, the Z9PE-D16/2Leasily manages virtualization applications while maintaining superior performance.
