BitFenix Aegis

BitFenix Aegis

MPN: BFC-AEG-300-WKWN1-RP
发送方式:
交货来源:
德国
更新价格... 📣 询问价格 Не поставляется
运输成本:
От

凡购买和价格 (Advertising *)

顶部
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

技术特点

顶部

冷却

最大前部风扇 3
最大后部风扇 1
支持的底部风扇直径 140, 120 mm
最大底部风扇 1
最大顶部风扇 3
支持的后部风扇直径 120 mm
安装的后部风扇 1x 120 mm

人体工程学

重启按钮 Y

设计

格式要素 Midi-Tower
最大PSU长度 220 mm
最大CPU散热器高度 170 mm
最大显卡长度 380 mm
侧窗 Y
类型 PC
3.5" 托架数量 4
2.5" 托架数量 4

电源

电源 N
电源位置 Bottom

端口 & 界面

USB 3.0(第 1代3.1)Type-A 端口数量 3

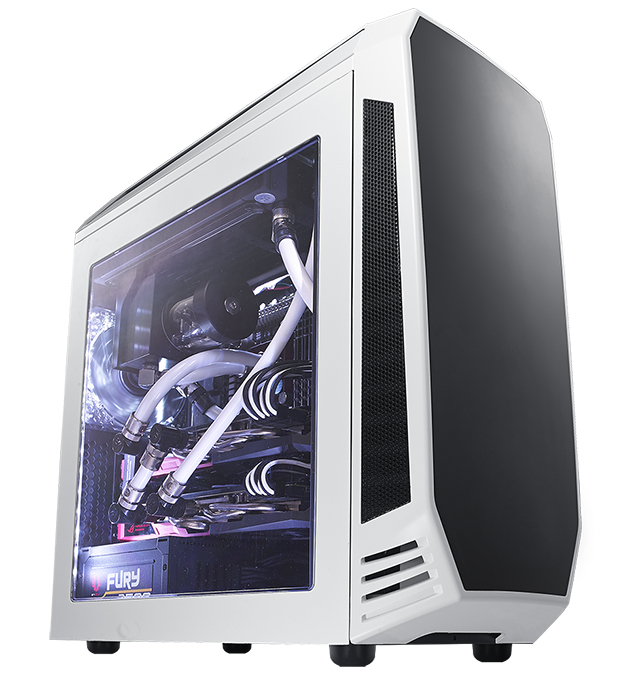

Aegis - Micro ATX, Mini-ITX, USB 3.0 x 2, HD Audio, 6.7Kg Aegis features a beautiful rounded shield-inspired front with the same fully customizable ICON display used on Pandora, and a sporty fresh design all around. AEGIS is our first case in a while with more focus on cooling performance and supports an impressive amount of fans and radiators: up to 8 120mm fans or 5 140mm fans, dual 280 radiators or a 360 and 240 combo.

<b>Noise Shield</b>
To block as much noise as possible without notably restricting airflow, AEGIS features a closed front panel that extends far from the case body, providing plenty of space for air to stream in through the side vents. Rounded and bent like a shield, it's not only functional but makes AEGIS look bold and imposing.

<b>BitFenix ICON Display</b>
Hidden behind the smooth closed front panel and invisible when powered off, sits our Bitfenix ICON™ 2.8" Logo Display. It connects directly to your motherboard via an internal USB header and lets you drag and drop any color image onto the display to customize your build. We published the entire sourcecode, opening the door for developers and tinkerers to create animated and interactive ICON apps.

<b>AEGIS CORE</b>
For purists who prefer a completely untouched black front panel we offer a CORE version of AEGIS without an ICON Display. The CORE version comes with all the same accessory as the full ICON display version, such as the modular drive cages, fan controller, pump bracket and reservoir bracket, and as an added bonus, with one of our infamous Aluminum Bitfenix Logo badges with 3M double sided tape, in case you prefer a traditional and more classy logo on your case.

<b>MAtX PERFORMANCE</b>
With up to eight 120mm fans or five 140mm fans for an ultra silent or extreme airflow build, and support for up to two slim 360mm radiators, a thick 360+280 or dual 280mm combo for a dual AIO or custom loop build, AEGIS is ready to outperform and outgun much larger cases.

<b>Dust Filters</b>
AEGIS comes with quality micro weave dust filters with a solid frame, that can be removed and cleaned quickly and easily. The top dust filter can be clipped on and off within a second, and the front and bottom magnetic dust filters cover all intake fan locations including the PSU, giving dust bunnies no chance to be settle in this case.

<b>Reservoir Bracket</b>
Keep your loop running without a refill for months on end, and give your build that extra bling. To enable fully fledged custom loop builds with a nice tube res we bundle a 240mm reservoir bracket that can be attached to either the case, or directly to a 240mm or 360mm radiator. Alternatively, the reservoir bracket can be used to install pump/res combos, such as the EKWB Xres, simplfying your loop notably.

<b>Pump Bracket</b>
With support for up to two 360mm radiators and 5 slots for dual VGA configs we know you dont want to skimp on the pump. Thats why AEGIS comes with its very own pump bracket, covered with a thick rubber pad, and featuring plenty of mounting holes. There are several locations on the bottom of the case that make it that much easier to get your custom loop up and running.

<b>Fan Controller</b>
Movie time? Need an airflow boost to overclock your system or an intense gaming session? Instantly adjust the fanspeed and resulting noise of your system and toggle between 3 different modes, High Performance (12v), Normal (7V) and Silent (5V).

<b>PSU Cover</b>
Hide your PSU and the modular cable plugs and wires coming out of it for an extremely clean and neat build. In case you own a particularly flashy or good looking PSU and want to show off its nicely sleeved cables, the PSU cover is completely removable.

<b>Preinstalled Mainboard Standoffs</b>
AEGIS comes with all necessary mainboard standoffs, factory installed, making a new build much less of a hassle and saving you valuable time. And if you plan to use an mITX mainboard, dont worry, none of the additional preinstalled standoffs will stand in your way. In case you want to remove them anyways for that extra clean look, we bundle a screwdriver adapter to remove them one by one.

<b>Huge CPU socket cutout</b>
Installing any high performance CPU cooler, whether its Air, AIO or a waterblock requires access to the back of the mainboard. AEGIS comes with support for up to 170mm tall Tower coolers and an extra large CPU socket cutout that provides plenty of space to install support brackets behind the CPU socket to securely install even the largest and heaviest CPU coolers on the market.

<b>Extreme Graphics Card support</b>
The longest VGAs on the market barely make it to 300mm, and even the tallest VGAs rarely surpass 130mm. AEGIS supports no less than 380mm long and 150mm tall VGAs, leaving plenty of space for front mounted fans, radiators and of course for air to move and stream through the system and cool all components.

<b>Dual VGA support</b>
Whether you have a multi monitor setup, a huge 4K monitor, or are addicted to 3D benchmark scores, AEGIS dual VGA ready to meet your insatiable performance demands. While most mATX cases come with 4 expansion slots, AEGIS features a fifth slot, to support highend mainboards that added a breathing space between both 16x graphics cards, keeping your graphics cards cool and stable.

<b>More Storage than you need</b>
The sheer amount of storage capacity you can install is breathtaking: AEGIS supports up to 40TB of HDD storage and up to 16TB of SSD space. It's good to know that you have more storage options than you need, and you can pick the most convenient, with the best airflow, or the best looking one. AEGIS comes with a special 2.5" slot next to the Mainboard, perfect for showing off your speedy highend SSD.

<b>Modular 2.5" Cage</b>
A removable cage with two completely tool less 2.5" slots provides quick access to a pair of SSDs or 2.5" HDDs. Thanks to its location at the top front of the case it can remain in place even with a front and top radiator installed.

<b>Modular 3.5" Cage</b>
AEGIS comes with not one, but two of these compact dual 3.5" drive cages, with tool free HDD trays featuring stainless steel pins secured to the plastic sleds with large vibration and noise dampening rubber pads. The bottom HDD cage can even be moved around and installed in different locations to accommodate long highend PSUs or make way for radiators in the front.

<b>Hidden SSD</b>
Whether you prefer a clean look, or want to remove all the HDD and SSD cages to make way for a custom watercooling loop with radiators in push pull, you will rest easy knowing there is a hidden 2.5" tray for an SSD or compact HDD behind the PSU.

<b>PSU Support</b>
To power a high-end build with an overclocked high end CPU and two top of the line graphics cards you need something big. Even with the bottom HDD cage in place, AEGIS supports even the longest PSUs on the market, such as the 225mm Corsair AX1500i . And Since the magnetic bottom dust filter is covering the entire length of the case, Any PSU, no matter how large, gets to breathe nice and clean air.
