电源
电源位置 |
Bottom |
ATX电源连接 器(20 +4针) |
Y |
电源 |
Y |
设计
侧窗 |
Y |
照明 |
Y |
类型 |
PC |
格式要素 |
Midi-Tower |
扩展插槽数 |
7 |
适用于 |
Gaming |
内部5.25支架数量 |
1 |
最大CPU散热器高度 |
175 mm |
最大显卡长度 |
400 mm |
3.5" 托架数量 |
6 |
5.25" 托架数量 |
1 |
内部3.5英寸托架数量 |
6 |
2.5" 托架数量 |
2 |
冷却
前部风扇安装 |
1x 120 mm |
安装的侧面风扇 |
2x 80 mm |
支持的后部风扇直径 |
120 mm |
安装的后部风扇 |
1x 120 mm |
支持的底部风扇直径 |
140, 120 mm |
最大底部风扇 |
1 |
最大顶部风扇 |
2 |
最大侧风扇 |
2 |
支持的侧面风扇直径 |
80 mm |
最大前部风扇 |
2 |
端口 & 界面
USB 3.0(第 1代3.1)Type-A 端口数量 |
2 |

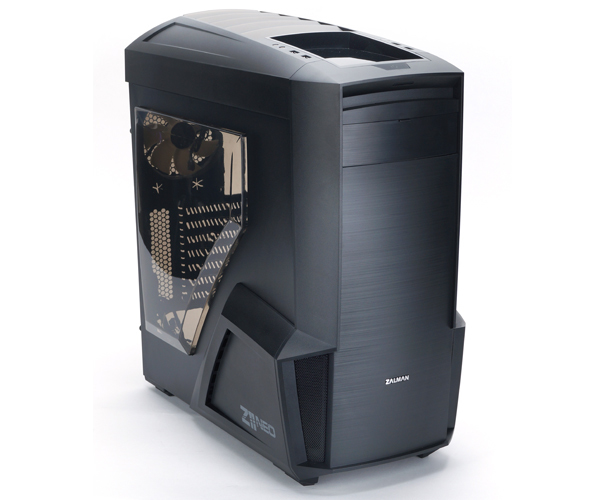

ATX Mid Tower, 7 slot Expansion, 1 x 5.25", 6 x 3.5", 2 x 2.5”
<b>Optimized Cooling Structure for Air Flow</b>
Strong cooling performance with low noise thanks to Zalman Cooling Solution
<b>Interactive Cooling System</b>
HDD bay emits the heated air on both sides and maximizes its cooling function that the Case can provide
<b>Maximum 8 system fans installable</b>
5 basic standard fans. 3 more fans can be installed on front/top/bottom vents
<b>Exclusive Cooling for Power Supply</b>
PSU located on the bottom for improvement of air flow and cooling performance
<b>Dual Radiator Water Cooler installable</b>
Spacious room for dual radiator water cooler installation
<b>Dynamic style design</b>
With brushed aluminum style frontal door and SFX styled top Air Vent gives off dynamic feel
<b>Transparent Acryl side</b>
Transparent Acryl side to show internal system
<b>One-touch Sliding ODD door</b>
One touch Sliding ODD door for simpler design
<b>Dust Filter Installed</b>
Dust filter applied on top& bottom
<b>Convenient Interface and USB 3.0 support</b>
USB 3.0 on Frontal Part (Top), Audio Port, Convenience enhanced by relocating power and reset button
<b>Tool Free HDD</b>
Can install and uninstall up to 8 HDD max without any additional tools
<b>High Performance Graphic Card</b>
High Specification VGA card can be installed within 400mm size maximum
<b>Excellent Expandability and Spacing</b>
Up to 8 ODD/HDD/SSD, 175mm tall CPU Cooler, dual radiator water cooler can be installed
<b>Hole for replacing CPU cooler and organizing cables</b>
CPU Cooler installing hole on M/B CPU part so that M/B doesn’t need to be separated when replacing CPU cooler.
Also cable hole for organizing cables
<b>Anti-vibration and noise absorption</b>
Rubber pods applied on the bottom of the case and power supply to prevent slipping and noise
<b>PCI slot expandability</b>
Great expandability with 7 PCI slots
