The ProClip is a mounting bracket for the vehicle's dashboard. Onto the ProClip you can install e.g. a holder for your mobile phone or PDA or a handsfree set etc. Safe and convenient -always within easy reach. The ProClip is car specific and easy to install. The installation is quick, no special tools or dismantle of the dashboard is required and it will not damage the interior of the vehicle. Made in black ABS plastic. Comes with detailed instructions. Angled mount Please read all of the instructions and look at the pictures before attaching the ProClip.
This ProClip consists of two parts.
Part 1. Attaching part
Part 2. ProClip face plate

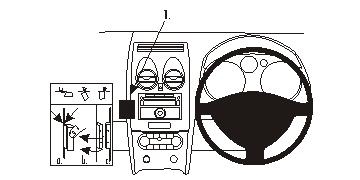

1. Use the enclosed alcohol pad to clean the area where the ProClip is to be installed. Peel off the adhesive tape covers on Part 1. Press the angled edge on Part 1 into the gap between the control panel and the surrounding frame.
2. Press Part 1 leftward so the angled edge hooks behind the control panel and the adhesive tape on the right end attaches to the control panel frame.
3. Open up the predrilled holes in Part 2 with a screwdriver (Philips). Peel off the cover of the adhesive tape on Part 2. Place Part 2 onto Part 1 so the holes fit and the adhesive tape is to the right. Screw part 2 onto Part 1 with the enclosed screws. Screw straight into Part 1, in the same angle as Part 1.
4. The ProClip is in place.
