性能
| 无线局域网连接 |
N |
| 滤波特性 |
-22 - -45 dB |
| 以太网LAN接口类型 |
Fast Ethernet |
| 电力线标准 |
HomePlug AV |
| 最高操作距离 |
300 m |
| 调制 |
64-QAM, 256-QAM, OFDM, BPSK, 1024-QAM, QPSK |
| 以太网的数据传输率 |
100, 10 Mbit/s |
| 支持服务质量（QoS） |
Y |
| 加密键 |
Y |
| 内置电源插座 |
Y |
另外
| 以太网连接器 |
Y |
| 数据传输率（最大） |
200 Mbit/s |
| 以太网路(RJ-45)连接接口数量 |
1 |

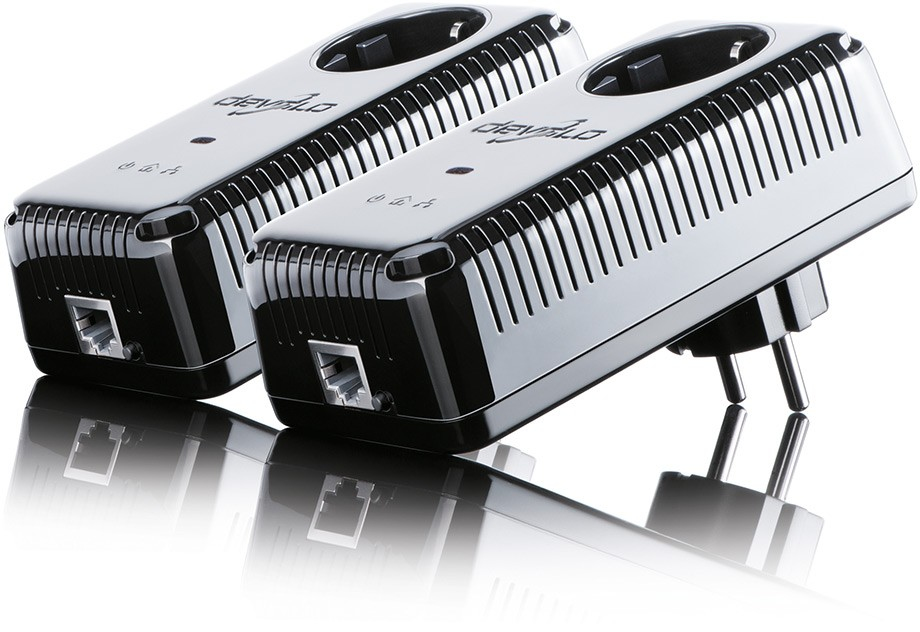

Starter Kit, 200 Mbps, 300m Distance Max, HomePlug AV, 1 x 10/100Mbps RJ-45, 2 Pack
devolo offers the dLAN 200 AVpro WP II specifically for commercial networking solutions via the existing power line. Based on the HomePlug AV standard, data, voice and video are transmitted over the power line at rates up to 200 Mbps. There is no need for investments in new cables for data transmission. In addition, the devolo adapter has an integrated socket for connecting terminals or a power strip as well as a filter for optimising the transmission capacity. The dLAN 200 AVpro WP II is the first powerline adapter to offer anti-theft protection in the form of a Kensington Lock connection. By connecting a standardised Kensington Lock, the device can be protected from theft easily and efficiently.
<b>Benefits at a glance</b>
- HomePlug AV adapter with transfer rates of up to 200 Mbps - ideally suited to broadband multimedia applications such as IPTV, Video on Demand and bandwidth-intensive Internet applications.
- Integrated socket for connecting power strips and terminal devices.
- Integrated mains filter for reducing interference on the powerline network.
- Remote management via dLAN 200 AVpro manager management software.
- Quality Indicator LED for determining broadband status.
- Integrated Quality-of-Service function (QoS) with automatic data prioritisation.
- PowerSave mode can be disabled by software.
- 1 Ethernet port Auto MDI/X.
- Dynamic neighbouring voltage.
- Mechanical antitheft protection by means of connection for Kensington Lock.
- Master/slave or peer-to-peer architecture.
- Scalable upgrades by deploying up to 63 slaves per master.
- Range: 300 m (656‘) over mains wiring.
- Secure data encryption at the touch of a button or centralised administration (encryption button can be enabled/disabled by software) .
- Comprehensive configuration options (notching, output power etc.) .
