性能
| 主板元件 |
Mini ITX |
| 主板芯片组系列 |
Intel |
| PC健康监测 |
CPU |
| 音频系统 |
High Definition Audio |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1333, 1600 MHz |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.5 V |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
SO-DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
16 GB |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
EFI AMI |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
2.0a |
内置输入/输出系统
| 迷你SATA端口数量 |
1 |
| USB 2.0接口 |
5 |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
1 |
| CPU风扇接口 |
Y |
| 串行端口接头连接器 |
1 |
扩展槽
| Mini PCI Express插槽 |
1 |
| PCI Express × 4插槽 |
1 |
背板输出端口
| 麦克风/音频输入插孔 |
Y |
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
另外
| 主板晶片 |
Intel H81 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

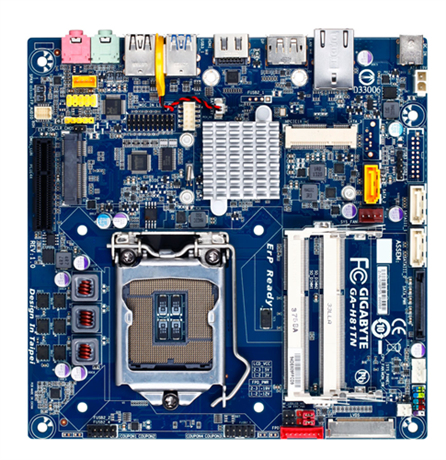

LGA1150, Intel H81 Express, DDR3 SO-DIMM, SATA, GbE LAN (10/100/1000 Mbit), HDMI, USB
GIGABYTE Thin Mini-ITX Motherboards
GIGABYTE Thin-Mini-ITX motherboards are the ideal platform for today’s All-in-One, small form factor and slim profile PCs. Offering a full featured PC experience in a minimal device footprint, GIGABYTE Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE Thin Mini-ITX motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
Selectable Panel Power Driver
GIGABYTE Thin Mini-ITX motherboards feature a selectable power driver allowing for both 3.3v and 5v configurations. This brings additional flexibility for LVDS panels that require both 3.3v and 5v drivers. Voltage settings are configured via an onboard jumper.
Selectable Back Light Power Module
GIGABYTE Thin Mini-ITX motherboards offer flexible backlight power delivery with both 12v and 19v options available via onboard jumpers. This enhances compatibility with the wide range of backlit displays available today.
Wide Range Voltage Input
Offering additional flexibility for system DC voltage input, GIGABYTE Thin Mini-ITX motherboards offer a broad voltage range of 12v to 19v, eliminating compatibility issues with many traditional IPC designs.
