性能
| 主板元件 |
ATX |
| 主板芯片组系列 |
Intel |
| 音频输出通道数量 |
7.1 channels |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 音频系统 |
Realtek ALC887 |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
2133, 2400 MHz |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 支持的内存模块容量 |
4GB, 8GB, 16GB |
| 內存插槽数量 |
4 |
| 最大内部存储 |
64 GB |
内置输入/输出系统
| USB 2.0接口 |
2 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| SATA III连接器数量 |
6 |
| PS电源接口 （8针） |
Y |
| 并行接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
| M.2 (M) 插槽数量 |
2 |
| 前面板接头 |
Y |
| 音频连接器 |
Y |
背板输出端口
| DVI-D接口数量 |
1 |
| USB3.1（第 2 代3.1）Type-A 端口数量 |
1 |
| USB3.1（第 2 代3.1）Type-C 端口数量 |
1 |
| PS/2连接埠数量 |
1 |
| USB2.0端口的数量 |
2 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI 插槽 |
1 |
| PCI Express X16（Gen 3.x）插槽 |
2 |
| PCI Express x1（Gen 3.x）插槽 |
3 |
联网
| 局域网控制器 |
Intel I219-V |
| 以太网接口类型 |
Gigabit Ethernet |
图像
| 并行处理技术支持 |
2-Way CrossFireX |
处理器
| 处理器插槽 |
LGA 1151 (Socket H4) |
| 英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-6xxx, i3-7xxx, i5-6xxx, i5-7xxx, i7-6xxx, i7-7xxx |
| 兼容处理器 |
Core i3, Core i5, Core i7 |
另外
| 主板晶片 |
Intel B250 |
| Intel Optane technology ready |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

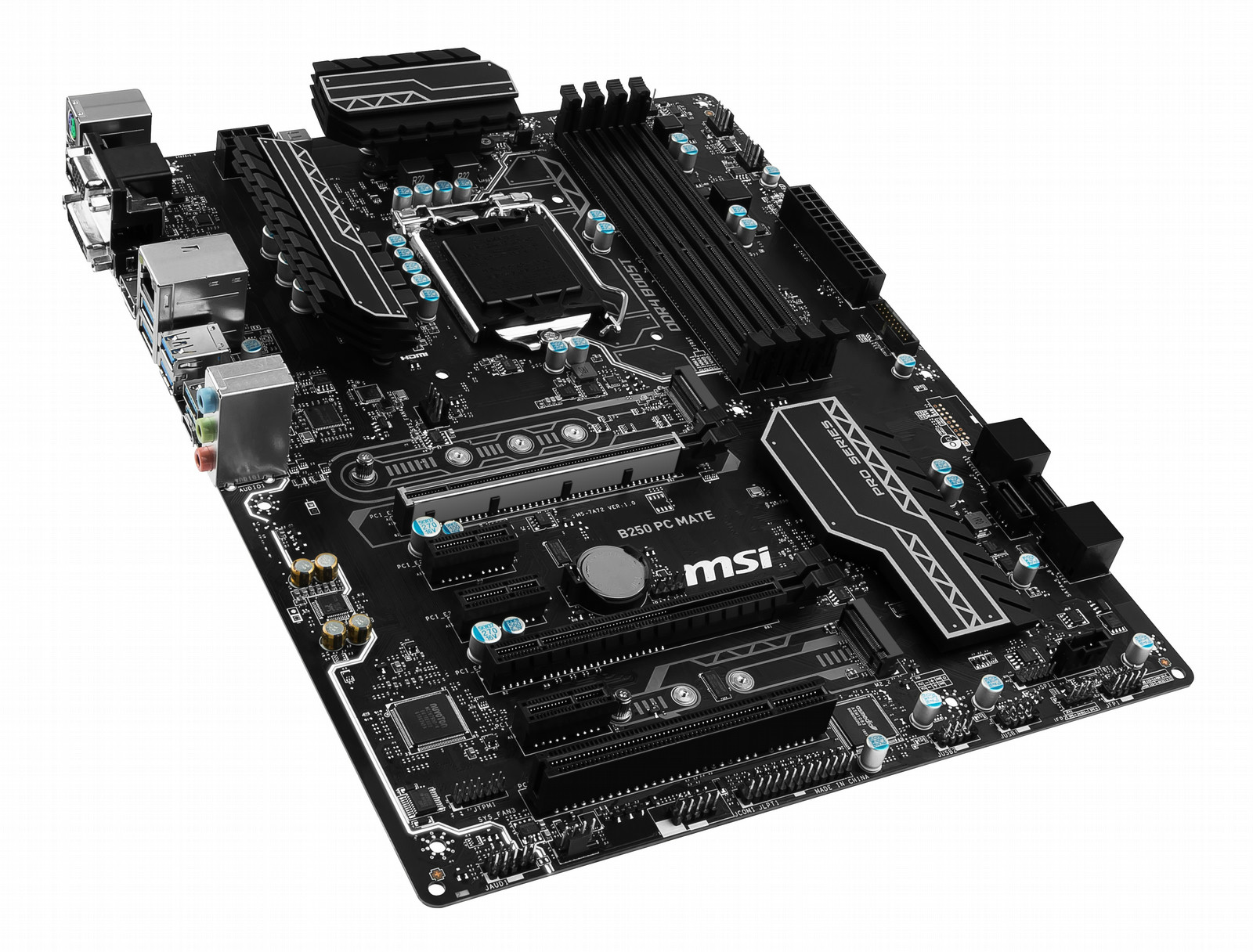

7th/6th Gen Intel Core™ i3/i5/i7, B250 Chipset, 4x DDR4, 3x PCIe 3.0 x16, 1x HDMI, 2-Way AMD CrossFire
STAY COOL
Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system to the max.
ENJOY THE LATEST VIDEO STANDARDS
Supporting the latest display connectors for new technologies (OLED, HDR) and legacy connectors for beamers, MSI motherboards are designed to make life easier for any professional user.
PROFESSIONAL SOUND QUALITY
Get the most immersive sound experience. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most dynamic soundscapes.
BE THE FIRST TO BOOT UP IN THE MORNING
This MSI product supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you noticeable benefits. Start programs faster, load data faster and increase productivity.
STABLE, SECURE & FAST NETWORKING
Optimized for professional and multimedia use, this generation comes equipped with a high quality network solution ready to serve you with 24/7 reliability when transferring big data.
UNMATCHED MEMORY PERFORMANCE
MSI motherboards are crammed with features to fuel your system's memory with more speed, higher overclockability and increased stability.
DESIGNED FOR LIMITLESS TUNING
Founded on experience and with a long history of creating the best performing motherboards packed with smart features, you can count on this motherboard to deliver the best performance under the most extreme conditions. Countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.
MAXIMIZE YOUR USB DEVICE PERFORMANCE
Transfer lots of data, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds!
APPS TO GREATLY IMPROVE EFFICIENCY
With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.
BUILT ON EVERLASTING QUALITY
Using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard.
TUNE YOUR SYSTEM WITH CLICK BIOS
The extensive features in MSI CLICK BIOS let you fine-tune your system to deliver reliable and maximum performance. From M-Flash for easy BIOS flashing to advanced data protection & system security, CLICK BIOS provides the tools to fully protect and optimize your system. MSI CLICK BIOS is faster than ever. By reducing the use of graphics in the UEFI shell, it boots faster, reacts instantly and feels smoother. Smart sorting makes this the easiest BIOS you’ll ever use.
