内置输入/输出系统
| 通过内部接头的串行端口 |
Y |
| USB 2.0接口 |
2 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| SATA III连接器数量 |
4 |
| SATA II连接器数量 |
2 |
| 并行接口 |
Y |
| CPU风扇接口 |
Y |
| 机箱风扇接头数量 |
2 |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
| 并行端口，通过内部头 |
Y |
性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 组件应用 |
PC |
| 冷却方式 |
Passive |
内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 无错误检测和更正 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.5 V |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 支持的内存模块容量 |
16GB |
| 內存插槽数量 |
4 |
| 最大内部存储 |
64 GB |
图像
| DirectX版本 |
11 |
| 最大图形显示内存 |
1760 MB |
| 图形适配器系列 |
Intel |
| 分立图形支持 |
Y |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI 插槽 |
1 |
| PCI Express x1（Gen 2.x）插槽 |
2 |
| PCI Express X16（Gen 3.x）插槽 |
1 |
另外
| 主板晶片 |
Intel B85 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

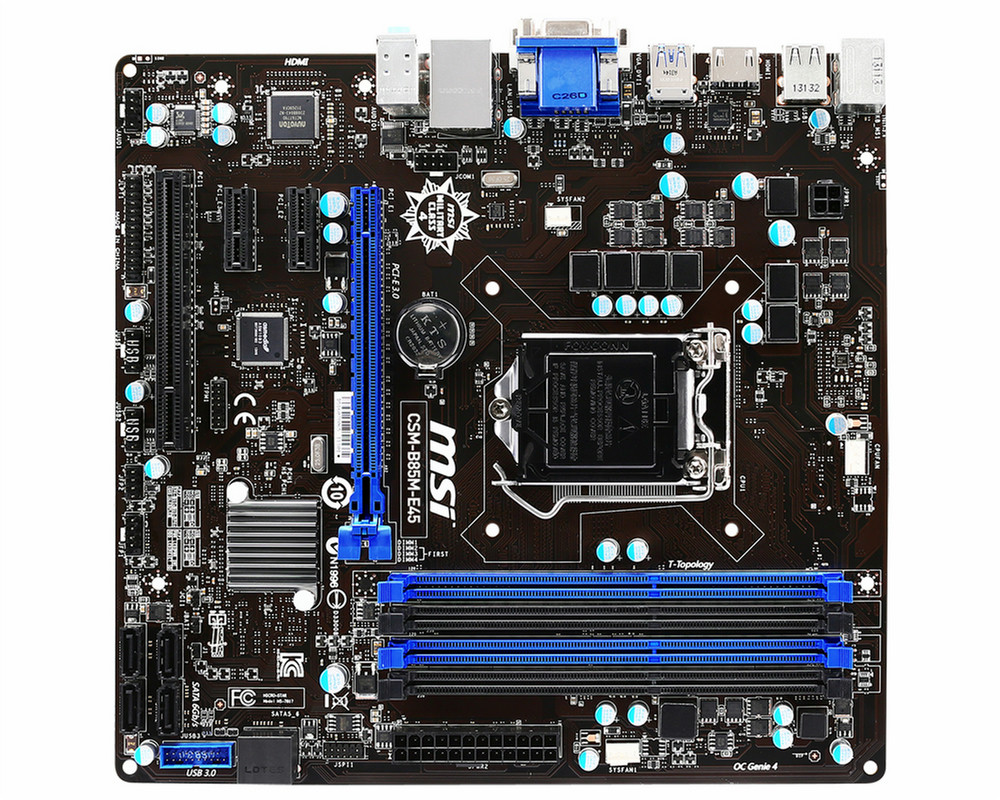

CSM-B85M-E45, LGA1150, B85 Express, 4x DIMM, XMP, PCI-Express 3.0, SATAII/SATAIII, Realtek ALC887, Gigabit Ethernet, USB 3.0, HDMI, DVI-D
- 14-Month Supply Guaranteed + Advances RMA Service
- Supports 4th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1150 socket
- Supports DDR3-1600 Memory
- USB 3.0 + SATA 6Gb/s
- Military Class 4: Top Quality & Stability
- Military Class Essentials: Total Protection for Military Class Motherboards
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- 4K UHD Support: Ultra-high Definition Visual Experience
- 3 Display Outputs: HDMI/DVI/D-Sub Support
- PCI Express Gen 3: World's 1st PCI Express Gen 3 Motherboard Brand
- Command Center: Control & Customize Your PC Settings
- Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
- M-Flash: Simply Update & Backup Your BIOS
- Live Update 5: Easily Update The Latest BIOS & Drivers
- Intel® Small Business Advantage 2.0: Streamline PC Maintenance & Security
USB 3.0
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.
Features
- 10X Faster Than USB 2.0
- Up to 5Gb/s Data Transfer Bandwidth
- Boost Transfer Rate Between Your PC and External Storage Devices
SATA 6Gb/s
SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC's performance.
Features
- 2X Faster Than SATA 3Gb/s
- Up to 6Gb/s Data Transfer Bandwidth
- Unleash True Performance of New HDDs/SSDs
Intel® Small Business Advantage
Intel® Small Business Advantage is a total solution to deliver the enhanced security & productivity for PCs that small businesses demand.
