设计
| 冷却方式 |
Active |
| 插槽数量 |
2 |
| 格式要素 |
ATX |
端口 & 界面
| DVI-I接口数量 |
1 |
| 接口类型 |
PCI Express 3.0 |
| HDMI端口数量 |
1 |
性能
| Full HD |
Y |
| 集成电视调谐器 |
N |
| HD3D技术 |
Y |
| PhysX |
N |
| DirectX版本 |
11.2 |
| OpenGL版本 |
4.3 |
处理器
| 处理器频率 |
1000 MHz |
| 处理器提高时钟速度 |
1100 MHz |
| 最大数字分辨率 |
4096 x 2160 pixels |
| 图形处理器系列 |
AMD |
| 最大模拟分辨率 |
2048 x 1536 pixels |
能量控制
| 最低系统供电 |
600 W |
| 补充电源连接器 |
1x 6-pin, 1x 8-pin |
内存参数
| 内存时钟速度 |
6000 MHz |
| 独立显卡适配器內存 |
3 GB |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
384 bit |
另外
| 双dvi（互应式数字视频） |
Y |
| 图形处理器 |
Radeon R9 280X |
| Mini DisplayPort的数量 |
2 |

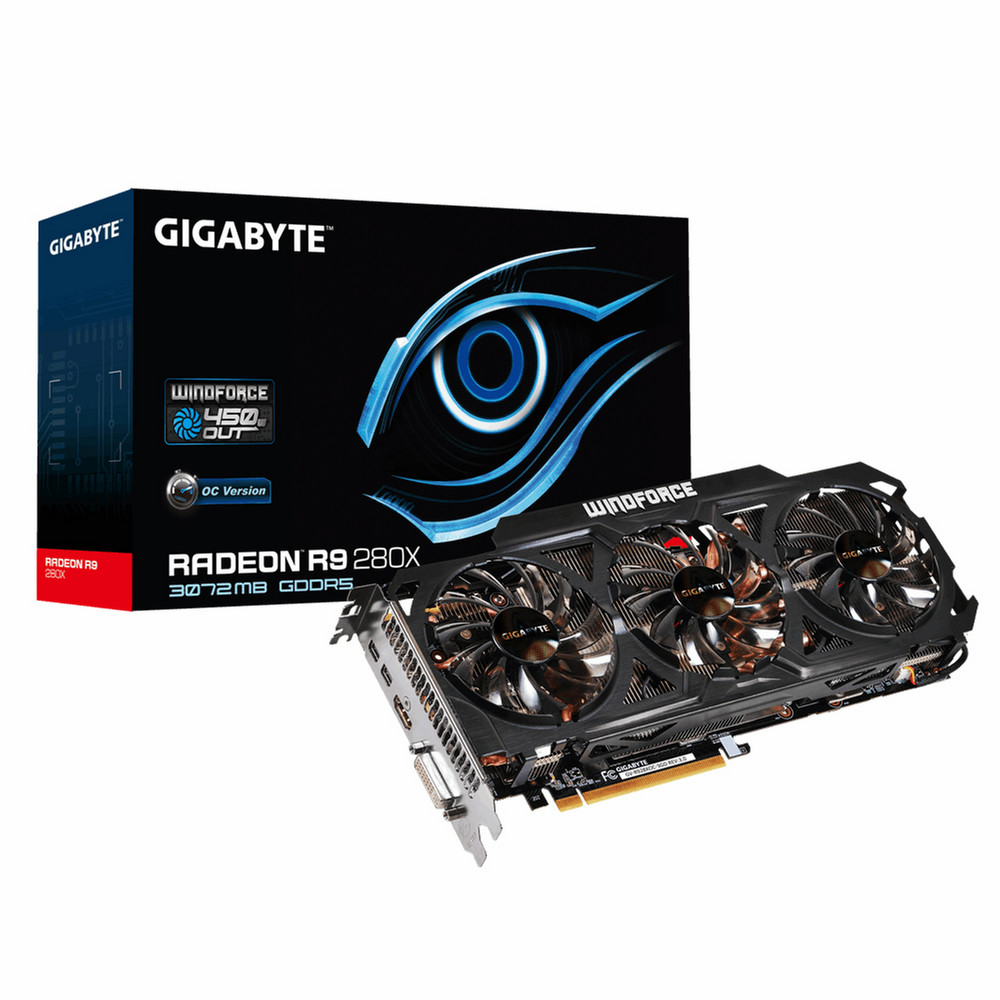

Radeon R9 280X, 3072 MB GDDR5, 384 bit, PCI-E 3.0, DVI-I, ,HDMI, mini DisplayPort x 2
<b>NEW WINDFORCE 3X 2 SLOT 450W cooling system</b>
Keeping the same 450W Cooling capacity using only 2 slots, the New WINDFORCE 3X 450W cooling system is equipped with two 8mm and four 6mm cooper heat-pipes , inclined fans, and GIGABYTE “Triangle Cool” technology. This not only provides an effective heat dissipation capacity but also enables higher performance due to a lower temperature.
<b>Ultra Durable VGA™</b>
<b>Lower GPU Temperature</b>
Ultra Durable VGA board provides dramatic cooling effect on lowering both GPU and memory temperature by doubling the copper inner layer of PCB.
<b>Better Overclocking Capability</b>
Ultra Durable VGA board reduces voltage ripples in normal and transient state, thus effectively lowers noises and ensures higher overclocking capability.
<b>Decrease Power Switching Loss</b>
Ultra Durable VGA board allows more bandwidth for electron passage and reduces circuit impedance. The less circuit impedance, the more stable flow of current and can effectively improve power efficiency.
<b>OC GURU ll</b>
Brand-new instinctive user interface, easier to monitoring and adjusting all important settings. Users can set up MONITORING, GPU CLOCK, MEMORY CLOCK,FAN, OSD, ONLINE SUPPORT and update driver, BIOS directly.
