存储介质
| 硬盘接口 |
Serial Attached SCSI (SAS) |
| RAID支持 |
N |
| 最大存储容量 |
4 TB |
| 热插拔 |
Y |
处理器
| 处理器频率 |
2.66 GHz |
| 处理器运行模式 |
64-bit |
| 可选用的嵌入式选项 |
N |
| FSB奇偶校验 |
N |
| 无冲突处理器 |
N |
| 处理器高速缓存类型 |
L3 |
| 核心的处理器数量 |
8 |
| 散热设计功耗 (TDP) |
130 W |
| 热监测技术 |
N |
| 执行禁止位 |
Y |
| 处理器加速频率 |
2.67 GHz |
| 处理器高速缓存 |
24 MB |
| 处理器安装数量 |
1 |
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
4 |
| 处理器光刻 |
45 nm |
| 总线类型 |
QPI |
| 处理器支持 ECC 功能 |
N |
处理器的特殊功能
| 英特尔®MID清晰视频技术 |
N |
| 英特尔® 我的WiFi技术 |
N |
| 英特尔® 增强暂停状态 |
N |
| 英特尔®超线程技术 |
Y |
| 英特尔® 防盗技术 |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
N |
| 英特尔® 双显示功能技术 |
N |
| 英特尔® 清晰视频技术 |
N |
| 英特尔®64 |
Y |
| 英特尔® 内线™ |
N |
| 英特尔®快速同步视频技术 |
N |
| Processor ARK ID |
46499 |
| 英特尔®可信执行技术 |
N |
| 英特尔®Turbo Boost技术 |
Y |
| 英特尔® Flex内存访问 |
N |
| 英特尔® 快速内存访问 |
N |
| 英特尔®快速存储技术 |
N |
| 英特尔®清晰视频高清技术 |
N |
| 英特尔®无线显示(WiDi)技术 |
N |
| 英特尔®基于需求开关 |
N |
| 增强型英特尔®SpeedStep动态节能技术 |
Y |
| 英特尔® FDI技术 |
N |
| 英特尔®VT-x的扩展页表（EPT） |
Y |
| 英特尔®vPro™ 技术 |
N |
内存参数
| 最大内部存储 |
1024 GB |
| 内存插槽数量 |
96 xDIMM |
| 内存时钟速度 |
1066 MHz |
| 内置存储器 |
32 GB |
| 内存类型 |
DDR3-SDRAM |
认证标准
| 遵守工业标准 |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
另外
| 系统总线 |
6.4 GT/s |
| InTru™3D技术 |
N |
| 以太网路(RJ-45)连接接口数量 |
2 |
| 英特尔®AES新指令 |
N |
| 以太网连接器 |
Y |
| 图形适配器 |
G200eV |

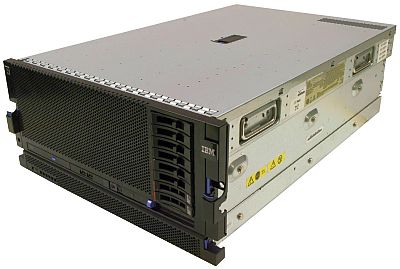

System x3950 X5, Intel Xeon X7560(2.26GHz), 32768MB DDR3, Matrox G200eV, Gigabit Ethernet, 4762g, Black
Highlights
- Unmatched flexibility to meet changing workload demands
- Optimized systems with customizable configurations for target workloads
- Achieve greater performance and utilization at a lower total cost
- Keep consolidated workloads up and running with mainframe-inspired reliability
- Easy-to-own, simplified power and systems management with an energy-smart design and remote access
Tailored to your workload demands
With rising costs, increasing workloads and demands for 24x7 availability, there’s no room in your organization for underutilized or unreliable servers. Built on the next generation of IBM® Enterprise X-Architecture® technology and Intel® Xeon® processors, the IBM System x3850 X5 offers superior performance and unbeatable reliability within an energy- and wallet-friendly design. Best of all, it offers ultimate flexibility to help you get what you need, when you need it.
You need to get solutions deployed in your data center―and generating return―faster than ever. The x3950 X5 workload-optimized systems are turnkey solutions configured for high-performing database or virtualization environments. Choose among models configured with the right balance of processing power, memory, high IOPS storage, networking and software for your virtualized environment or database application.
Grow as your business grows
The x3850 X5 server allows freedom of choice with extremely flexible configurations plus memory expansion and node partitioning capabilities. A modular building block design lets you customize your system for current needs while providing the ability to react to changing workloads. Expand your 4-socket, 64-DIMM x3850 X5 to 4 sockets and 96 DIMMs or up to 8 sockets and 192 DIMMs. Reallocate resources and repartition systems as your environment changes. The x3850 X5 meets your needs today, while providing an easy, cost-effective upgrade path to change your environment when you’re ready.
