显示器
| 独立h/v同步 |
Y |
| 垂直扫描范围 |
50 - 76 Hz |
| 可视尺寸，对角线 |
1766 mm |
| 数字垂直频率 |
50 - 76 Hz |
| 触摸屏技术 |
Infrared |
| 数字水平频率 |
30 - 83 kHz |
| 显示器可视区域 HxV |
865.62 x 1538.88 mm |
| LED背光源 |
Y |
| 显示类型 |
LED |
端口 & 界面
| 复合视频 |
1 |
| PC音频 |
Y |
| DVI-D接口数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
1 |
| HDMI端口数量 |
3 |
| VGA（D-SUB）端口数量 |
3 |
性能
| OmniTapps多点触控兼容性 |
N |
| 硬盘容量 |
2 GB |
| OSD语言数 |
9 |
| 触控技术 |
Multi-touch |
| 内置摄像头 |
N |
| 内置麦克风 |
N |
另外
| 水平扫描范围 |
30 - 83 kHz |
| RS-232接口 |
1 |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 能源效率等级 |
B |
176.53 cm (69.5 ") , 1920x1080, 4 000 : 1, 5 ms, 16:9, VGA, RS232C, RJ45, DVI-D, HDMI, USB, VESA, 1638 x 964.5 x 97.5 mm, 50.5 KG

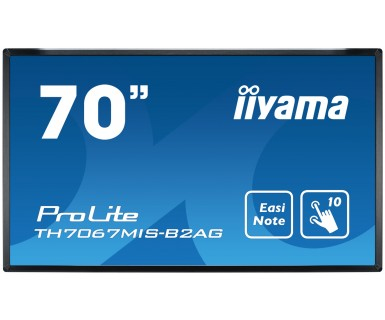

70’’ Interactive LCD Touchscreen with integrated annotation software and USB playback
The TH7067MIS-B2AG is a 70’’, 10-point touchscreen with integrated interactive EasiNote writing software allowing users to make annotations on files opened directly from a USB device or internal storage. The display supports also playback of presentations, video and almost any other type of content stored on the USB device or internal memory. The high quality commercial UV²A LCD screen guarantees great viewing angles from all sides and delivers superb image performance from anywhere in a class or meeting-room. The Anti Glare screen drastically reduces ambient reflection in high brightness environments without compromising sharp clarity of the content. Unlike interactive whiteboards, there are no shadows or reductions in image performance to contend with. The TH7067MIS-B2AG is a perfect solution for educational and corporate use.
AG Coating
The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
USB Playback
The monitor supports playback of presentations, video and almost any type of content stored on the USB device or internal memory.
Full HD
With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.
Touch technology - Infrared
The infrared technology uses infrared backlight. A touch event is registered with great accuracy when the infrared light is blocked by finger or stylus. This technology does not rely on an overlay or substrate, so it is impossible to physically "wear out" the touchscreen. Moreover the display characteristics remain virtually unaffected by the touch functionality.
EasiNote
The integrated interactive EasiNote software turns you monitor into an whiteboard incl. save as image option to internal memory or USB-stick.
