能量控制
| 功耗（读） |
9 W |
| 功耗（写） |
12 W |
| 功耗( idle) |
4 W |
其他功能
| 无法纠正的位错率（UBER） |
less than 1 sector per 1e17 bits read |
| 处理器光刻 |
20 nm |
| 耐力评级 |
4.38 PB |
| 內置式 |
Y |
性能
| SSD usage tag |
Data center |
| 内存类型 |
MLC |
| 读取速度 |
2600 MB/s |
| 写入速度 |
1000 MB/s |
| 固态磁盘驱动器的容量 |
800 GB |
| SSD ARK ID |
80998 |
| 随机写入（100％量程） |
50000 IOPS |
| 随机读取（100％量程） |
430000 IOPS |
| 英特尔®高耐用性技术（HET） |
Y |
| 顺序性书写 |
Y |
| PCI Express接口数据线 |
x4 |
| 随机写入（4KB） |
50000 IOPS |
| 随机读取（4KB） |
43000 IOPS |
| 延时（读取） |
20 µs |
| 延时（写入） |
20 µs |
| 增强功率损耗的数据保护技术 |
Y |
| SSD温度监控 |
Y |
| 端到端数据保护 |
Y |
| 光刻技术 |
20 nm |
| 固态磁盘驱动器 接口 |
PCI Express 3.0 |
技术细节
| 非操作性冲击 |
50 G |
| 操作冲击 |
50 G |
| 状态 |
Launched |
| 非运行性振动 |
3.13 G |
| 运行性震动 |
2.17 G |
设计
| 产品系列 |
Data center SSD |
| 产品系列 |
Intel DC P3600 |
| 产品代号 |
Fultondale |

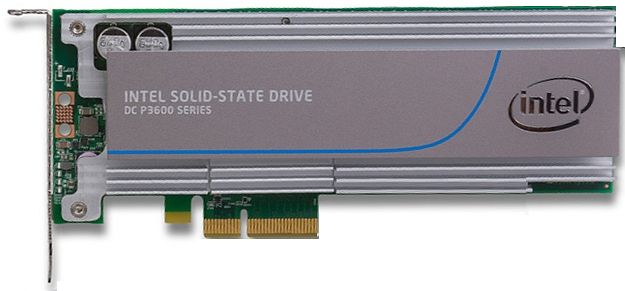

SSD DC P3600 Series (800GB, 1/2 Height PCIe 3.0, 20nm, MLC)
Series is a PCIe Gen3 SSD architected with the new high performance controller interface – NVMe (Non-Volatile Memory express) delivering leading performance, low latency and Quality of Service. Matching the performance with world-class reliability and endurance, P3600 Series offers a range of capacity – 400GB, 800GB, 1.2TB, 1.6TB and 2TB in both Add-In card and 2.5-inch form factor.
With PCIe Gen3 support and NVMe queuing interface, P3600 Series delivers excellent sequential read performance of up to 2.8 GB/s and sequential write speeds of up to 1700 MB /s.
P3600 Series delivers very high random read IOPS of 450K and random write IOPS of 70K for 4KB operations. Taking advantage of the direct path from the storage to the CPU by means of NVMe, P3600 Series exhibits low latency of less than 20 μs for sequential access to the SSD.
The 2.5-inch P3600 Series takes advantage of the 8639 connector and provides hot-pluggable removal and insertion providing in-service replacement options.
