性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 音频系统 |
Realtek ALC887 |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
2133 MHz |
| 错误更正代码 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
64 GB |
基本輸出輸入系統/BIOS
| BIOS内存大小 |
8 MB |
| 基本输入输出系统类型 |
UEFI AMI |
| 清除CMOS跳线 |
Y |
| ACPI的版本 |
5.0 |
内置输入/输出系统
| USB 2.0接口 |
1 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| SATA III连接器数量 |
6 |
| 并行接口 |
Y |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
| USB3.1（第 2 代3.1）连接器 |
1 |
| 前面板接头 |
Y |
| 12V 电源接头 |
Y |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| DisplayPort 数量 |
2 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
扩展槽
| PCI 插槽 |
1 |
| PCI Express X16（Gen 3.x）插槽 |
1 |
| PCI Express X4（Gen 3.x）插槽 |
1 |
| PCI Express x1（Gen 3.x）插槽 |
1 |
处理器
| 英特尔®酷睿™ i3/ i5 / i7 系列 |
i3-6xxx, i5-6xxx, i7-6xxx |
另外
| 主板晶片 |
Intel B150 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

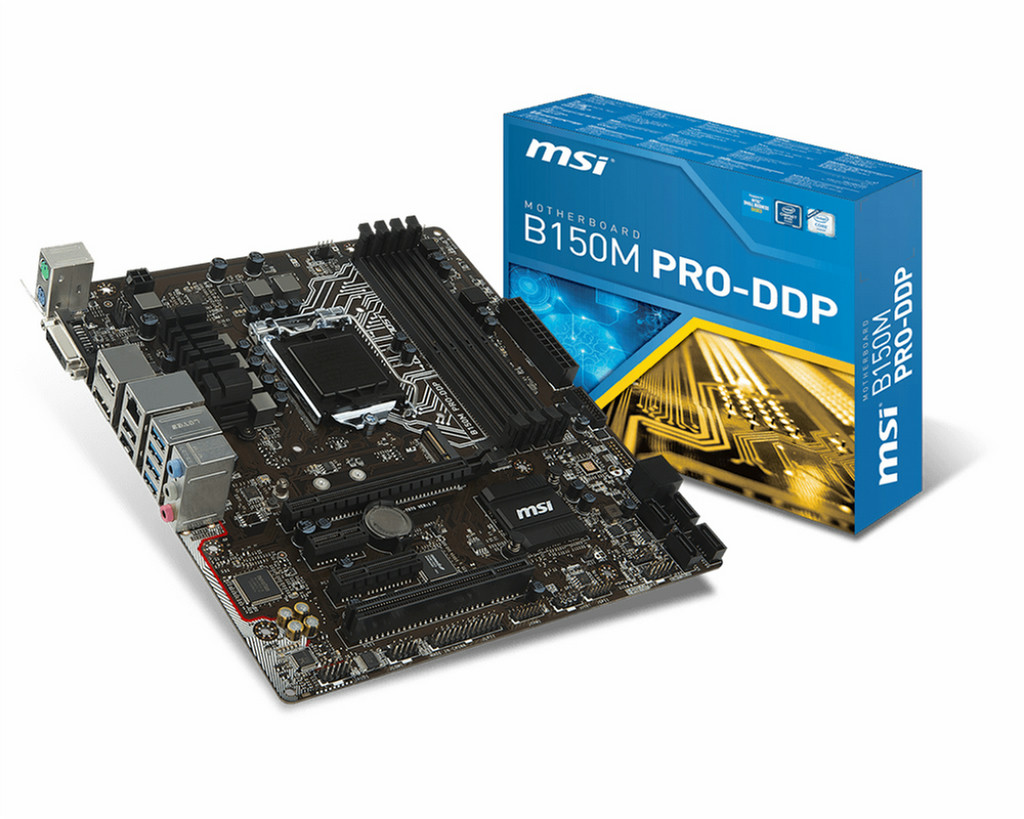

Intel Core i3/i5/i7/Pentium/Celeron, LGA1151, Intel B150, 4 x DDR4, Realtek ALC887, Realtek RTL8111GN, m-ATX, 244 x 223mm
MAKING YOUR LIFE EASIER IS OUR BUSINESS
The PRO Series motherboards fit in any PC. Quality you can trust with top performance and clever business solutions are key aspects of these motherboards. Make your life easier and boost your business with the super stable, reliable and long-lasting PRO Series motherboards.
Unmatched memory performance and stability
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
Turbo M.2
Delivering speeds up to 32Gb/s using Gen3 x4, Turbo M.2 is over 5 times faster than a regular SATA III connection! Enjoy a blazing fast system boot up and insanely fast loading of applications and games with MSI motherboards.
Turbo U.2 Host Card (optional)
The U.2 Host Card delivers performance up to 32 Gb/s and allows support for next gen 2.5-inch SSDs using the U.2 connector. A redriver chip is added to increase data transfer speed.
M-CLOUD
MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.
DARK CHOKE
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.
DARK CAP
With their aluminum core design, Dark CAPs has been a staple in high-end motherboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year Lifespan.
HUMIDITY PROTECTION
Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.
HIGH TEMPERATURE
PROTECTION
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.
CIRCUIT PROTECTION
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for MSI motherboards.
ESD PROTECTION
Each and every I/O port is protected against the hazards of Electro Static Discharge.
EMI PROTECTION
All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.
EASY DIAGNOSTIC
MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.
ENHANCED CPU OVERVOLTAGE PROTECTION
Onboard overcurrent protection prevents overcurrent and short-circuit damage of the CPU and other components. There shows a warning message let’s you know that overcurrent protection is activated for easier troubleshooting.
VGA ARMOR: REINFORCED PCI EXPRESS SLOT
With the increased size and weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet VGA Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots.
