性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 可信任平台模组(全面生产管理) |
Y |
| 音频系统 |
HD |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存电压 |
1.5 V |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
2 |
| 最大内部存储 |
32 GB |
处理器
| SMP（适用于表面安装的封装形式）处理器的最大数量 |
1 |
内置输入/输出系统
| USB 2.0接口 |
2 |
| ATX电源接头 |
Y |
| 风扇电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| SATA III连接器数量 |
2 |
| SATA II连接器数量 |
2 |
| CPU风扇接口 |
Y |
| 前面板音频接头 |
Y |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
2 |
| 耳机输出端口 |
1 |
| 麦克风/音频输入插孔 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
2 |
扩展槽
| PCI Express x16 插槽 |
1 |
| PCI Express × 1插槽 |
1 |
| PCI Express插槽版本 |
2.0, 3.0 |
另外
| 主板晶片 |
Intel B85 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

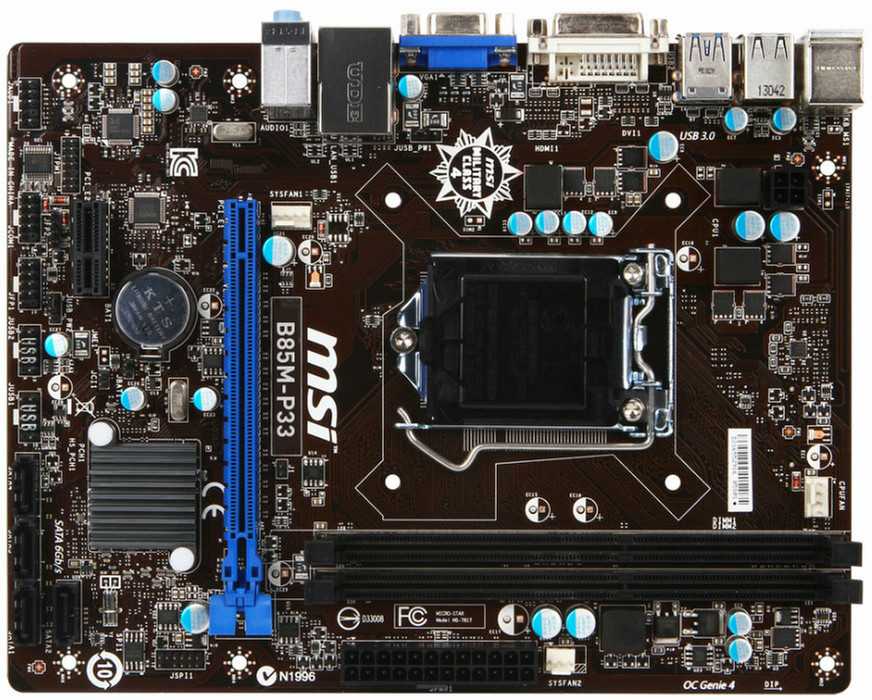

Intel B85 Express, LGA 1150, DDR3, PCI-E 3.0, SATA 3, USB 3.0, Gigabit Ethernet, Micro-ATX
Military Class 4
MSI's new Military Class 4 components support you while you are questing, racing, battling and shooting your way to the top. MSI's Military Class 4 components deliver record-breaking stability when you need to keep cool in the heat of battle. The new standard in stability built on a proven technology of high quality components.
Military Class Essentials
The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.
OC Genie 4
OC Genie 4 supercharges your speed experience! When used, OC Genie 4 accelerates your entire system and puts it into overdrive! Tuned by the professional overclockers, OC Genie 4 hands you record-breaking performance on a silver plate.
Click BIOS 4
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only reacting faster and running smoother, it also has better mouse support. This is all comes with many cool features, such as Hardware Monitor, Board Explorer, and OC Profile Preview.
Intel Small Business Advantage 2.0
Intel Small Business Advantage 2.0 is a total solution to deliver the enhanced security & productivity for PCs that small businesses demand.
World's 1st PCI Express Gen 3 motherboard brand
With ultra-high 32GB/s transfer bandwidth, PCI Express Gen 3 provides a 2X faster transfer rate than the previous generation, this delivers amazing capabilities for true next generation extreme gaming.
USB 3.0
Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.
SATA 6Gb/s
SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.
Command Center
Command Center is the next-gen multi-function software platform and allows easy visual adjustment of system settings, automatically tune fans or give complete freedom. It features an integrated unlimited RAM disk. With the Command Center mobile version, you can remote and monitor your PC wirelessly via your iPhone or Android phone.
Fast Boot
No more waiting for entering O/S! MSI Fast Boot helps to make motherboards boot lightning fast. MSI also adds the GO2BIOS button with-in. Simply click it to reset your PC and then go straight to the system BIOS.
Live Update 5
MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving your time and lowering the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website.
M-Flash
Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.
