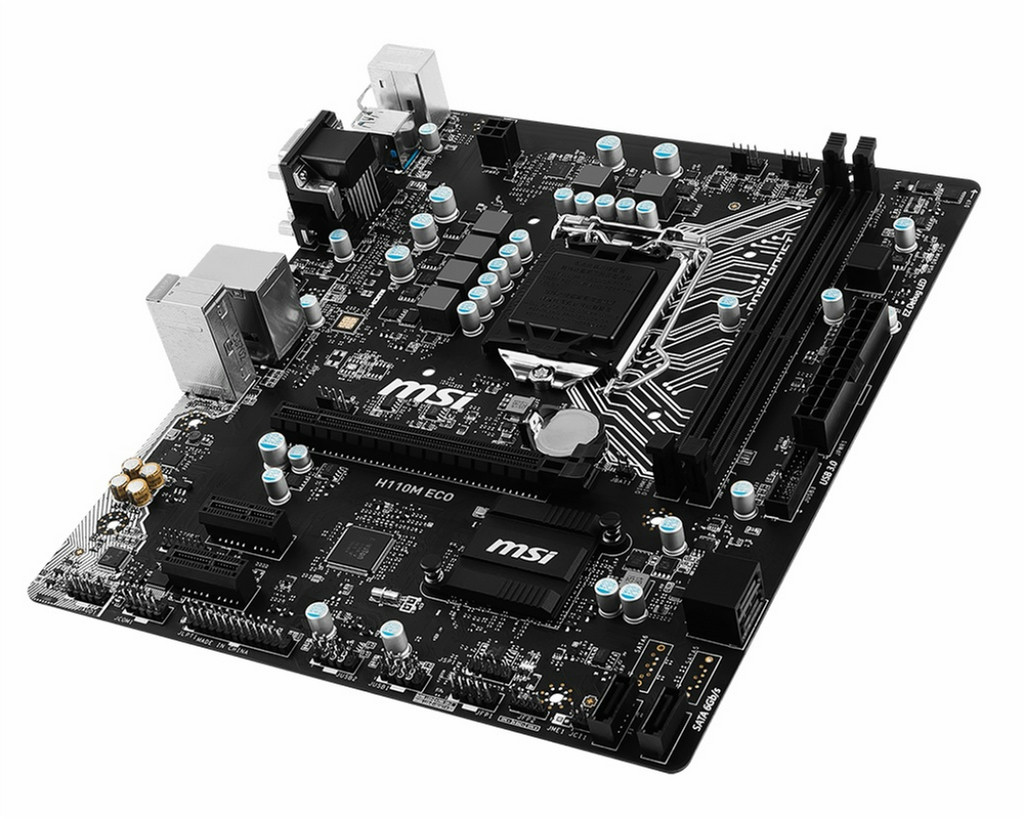

MSI H110M ECO Intel H110 LGA1151 Micro ATX motherboard

Socket 1151, Intel H110, DDR4 2133MHz, 2x DIMM, 1x PCI-Ex16, 2x PCI-Ex1, 2x SATAIII, 4x USB 3.1, 6x USB 2.0, VGA, HDMI, DVI, mATX ECO MOTHERBOARDS

Industry leading power saving design and server optimizations, together with smart business solutions make the ECO motherboards the perfect solution for your business. Save power, save money and save the planet at the same time.

- ECO Certified Tech Design
- Extreme Power Saving
- 100% Performance
- 100% Compatibility
- DDR4 Boost

NDUSTY LEADING POWER SAVING & LONG-TERM STABILITY

- OPTIMIZED POWER SAVING
- 100% PERFORMANCE
- 100% COMPATIBILITY
- 100% FEATURES

MSI uses unique techniques in hardware and software design for ECO Series to use up less power than a light bulb,while retaining 100% performance!

ECO GENIE

Efficiency at your control; saving energy immediately through ECO Genie. With the option to toggle ECO Genie in BIOS or the ECO Center PRO application for more convenience.

ECO CENTER PRO

Completely cut power to devices to save heavily on power.

ECO Mode

ECO mode is the default mode to save energy. It enables all of the motherboards functions and only turns off all LEDs and PCI slots.

Lounge Mode

For multimedia solutions to decode/encode audio & video at full performance. Lounge mode lowers fan speed for a mode quiet environment, disables LEDs & LAN.

Server Mode

A mode for personal cloud service or servers for small business. Server mode lowers CPU power consumption, fan speed, turns LEDs, audio & video functionality off.

- power saving preset mode
- With one click turn on all saving
- Turn fans on/off
- Turn LEDs on/off
- Save to BIOS and make default

UNMATCHED MEMORY PERFORMANCE AND STABILITY

With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.

100% COMPATIBILITY

- Supports all CPUs like any other motherboard
- Optimized for Intel S and T power efficient CPUs
- Supports all DDR4 memory

WHQL CERTIFIED. WINDOWS 10 READY.

Benefit from great compatibility and a worry-free user experience when using Microsoft Windows 8 / 8.1 or Windows 10 with MSI ECO motherboards.

MSI is world’s first motherboard manufacturer to receive official Microsoft Windows 10 WHQL certification. With a true testament to compatibility and performance, the MSI R&D team ensures a worry-free experience when using the latest version of Microsoft Windows on any MSI ECO motherboard.

SECURE AND RELIABLE UEFI BIOS SOLUTION

This next generation UEFI BIOS is completely rebuilt and features a plethora of system builders’ favorite options. From M-Flash for easy BIOS flashing to advanced data protection & system security, CLICK BIOS hands you the tools to fully protect and optimize the system.

Through smart design and optimizations for Windows 10, CLICK BIOS is faster than ever. By reducing the use of graphics in the UEFI shell, it boots faster, reacts faster and adds a smooth experience when changing settings. Smart categorizing of functions and settings make this the easiest BIOS you’ll ever see.

- Next gen UEFI BIOS
- Perfect for system builders
- Easy to use
- Windows 10 optimized
- Packed with security features

STABLE, SECURE NETWORKING

This high quality networking solution is optimized for professional and multimedia use with outstanding performance to deliver a secure, stable and fast network connection.

MSI ECO motherboards feature an Intel® i219V Gigabit network adapter.

Featured with LAN PROTECT, supports up to 15-KV anti-surge.

M-CLOUD

MSI M-Cloud is a convenient and secure way of saving personal files in the cloud. M-Cloud simplifies complicated settings with a user friendly interface and is easy to learn. Build and maintain your personal cloud with ease. M-Cloud can also turn your PC into an Access Point. You can easily share a wireless network or internet signal to other devices through just a few simple steps.

MILITARY CLASS 4 COMPONENTS

DARK CHOKE
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.

SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.

EASY DIAGNOSTIC

MSI EZ Debug LED is an easy troubleshooting tool using 3 LEDs to indicate CPU / Memory / VGA operation every time you boot up your system. Run into trouble? Use the LEDs to easily identify the source of your problem and get back into operation quickly.

ENHANCED CPU OVERVOLTAGE PROTECTION

Onboard overvoltage protection prevents overvoltage and short-circuit damage of the CPU and other components. A red LED near the 24 pin CPU power connector let you know that overvoltage protection is activated for easier troubleshooting.

VGA ARMOR: REINFORCED PCI EXPRESS SLOT

With the increased size and weight of modern high end graphics cards, traditional PCI Express slots often show signs of bending or even breaking. Meet VGA Armor, strengthened PCI Express slots using more solder points to make sure you never have to worry about breaking off any of the slots.

TOTAL FAN CONTROL

Total Fan Control gives you complete control of all your fans connected to the motherboard, through a revolutionary and easy to use interface.

- Full control of fans through 4-pin fan headers
- Real-time monitor fan speeds & temperatures
- Intuitive, easy to use application design
- Log fan speed, voltage and temperature status

BENEFIT FROM THE NEW

INTEL® SMALL BUSINESS BASICS

SOLUTION with MSI® MOTHERBOARDS

Intel® SBB is a unique, customizable solution that helps improve small businesses data security, maximizes employee productivity and boosts overall office computers’ performance.

A simple and intuitive interface which improves security and productivity – With USB blocker, screen sharing, file sharing, and chat.

STUDIO GRADE SOUND WITH AUDIO BOOST

With Audio Boost we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 6-channel Audio or high impendence headphones and truly dominate the game.

ISOLATED AUDIO PCB

Audio Boost acts like a dedicated soundcard by physically isolating the audio circuitry to give you a more clear audio signal.

CHEMI-CON AUDIO CAPACITORS

Delivering high fidelity crystal clear sound with exceptional acoustics and realism.

SEPARATED AUDIO LAYERS

Equal and perfect sound quality for left & right channel audio through the use of seperated layers in the PCB.

ANTI-POPCORN NOISE

Audio Boost protects your ears against annoying loud popping sounds when you plug devices in or out or turn your PC on/off.

5.1 Audio Jacks
7.1 via front

With high quality audio connectors you get the best possible signal output with less chance of distortion.

FRONT DEDICATED HEADPHONE OUT

Convenient use of the front panel audio output while retaining high quality amplified sound.

2X FRONT USB 3.1 GEN1

With a clever placed USB 3.1 Gen1 front pin header, available on MSI motherboards, you can connect up to 2 USB 3.1 Gen1 devices directly to the front of your PC Chassis. This way you can easily enjoy fast USB speeds without having to use the hard-to-reach USB ports on the rear.

PERFECT FOR INDUSTRIAL AND COMMERCIAL USE

Thanks to its flexibility in connectivity through the availability of a COM and LPT port, this MSI motherboard is suitable for an endless variety of applications in your business or in commercial markets.
The COM/LPT port found on this MSI motherboard ensures high compatibility through support of a wide variety of legacy devices.

LEGACY DVI / VGA VIDEO SUPPORT

To support professional monitors, TV's, beamers and other displays, this MSI motherboard features DVI and a VGA video output. No matter what screen type you want to connect, using a dedicated graphics card or an onboard connector, MSI motherboards have you covered.

4K UHD
Enjoy awesome 4K UHD (2160p ultra-high definition) video playback with MSI motherboards.

HDMI
This motherboard is equipped with a HDMI port supporting the latest 4K Ultra-HD 4096×2160p resolution @ 30Hz to provide a breathtaking visual experience.
