性能
| 主板元件 |
Micro ATX |
| 主板芯片组系列 |
Intel |
| 音频系统 |
Realtek ALC892 |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600 MHz |
| 无错误检测和更正 |
Y |
| 无缓冲内存 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
4 |
| 最大内部存储 |
32 GB |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
UEFI |
| 清除CMOS跳线 |
Y |
内置输入/输出系统
| USB 2.0接口 |
3 |
| 串列ATA连接器数量 |
6 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| 周边（莫仕）电 源连接器（4针） |
1 |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 机箱风扇接头数量 |
1 |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
1 |
| S/PDIF输出接口 |
Y |
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| HDMI端口数量 |
1 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI Express x16 插槽 |
2 |
| PCI Express × 1插槽 |
2 |
| PCI Express x1（Gen 2.x）插槽 |
2 |
| PCI Express X16（Gen 2.x）插槽 |
1 |
| PCI Express X16（Gen 3.x）插槽 |
1 |
另外
| 主板晶片 |
Intel H97 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

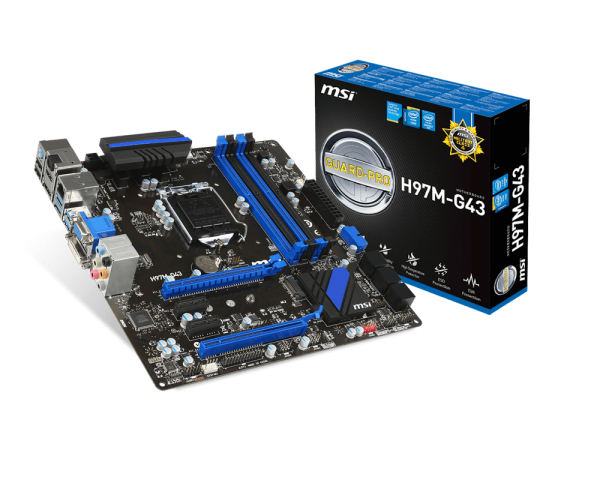

Intel H97 Express, DIMM x 4, DDR3, 1066/1333/1600 MHz, non-ECC, un-buffered, PCIe 3.0 x16, PCIe 2.0 x16, 2 x PCIe 2.0 x1, PS/2, 2 x USB 2.0, 4 x USB 3.0, VGA, DVI-D, DisplayPort, HDMI, LAN, Micro-ATX
Push your SSD to the limit
Enjoy a blazing fast system boot up and insanely fast loading of applications and games with selected MSI motherboards. We offer the next generation of high speed storage support through M.2 and SATA Express. M.2 and SATA Express transfer data through a PCI Express 2.0 x2 interface up to 10 Gb/s, making it 67% faster than SATA 3.0 solutions.
Faster storage solutions with M.2
M.2 is the successor to mSATA, offering a 67% performance increase up to 10 Gb/s. M.2 is packed in a small form factor and is compatible with 3 different sizes to fit most storage solutions.
Flexible fast storage with SATA Express
SATA Express introduces a new solution in high speed storage through PCI Express, providing more bandwidth for the latest generation SSDs. We offer flexible solutions with a M.2 to SATA Express converter for more convenience
M.2 to SATA Express
Optimized for multiple graphics cards
MSI motherboards feature one or more PCI Express 3.0 slots, perfectly aligned and with enough space for an optimal airflow when using multiple graphics cards. That way, you will never have to worry about an overheating PC, while you are enjoying the best graphics jumping off from your monitor when running a AMD CrossFire™ gaming setup.
Military Class 4
Military Class 4 is the next step in high quality components. The Dark Choke and Solid CAP will make sure that your PC runs more stable under extreme gaming conditions.
Dark Choke
Dark Choke uses the special core design and allows the Dark Choke to run at a lower temperature with higher capacity and better power efficiency and stability.
SOLID CAP
With their aluminum core design and Japanese made quality, Solid CAPs are made for high-end design motherboard. Not only do Solid CAPs could provide lower Equivalent Series Resistance (ESR), but also work firmly for over-10-year.
ECO Power
ECO Power helps users to manage their hardware and power usage. Save up to 29% power consumption by completely disabling unnecessary hardware. ECO Power not only lowers the power consumption but also avoids short circuiting and signal noise.
Circuit Protection
With specially designed circuit protection, the MSI motherboard protects the CPU against overheating and USB devices from short circuiting.
Circuit Protection
Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for our motherboards.
Humidity Protection
10% Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.
High Temperature Protection
All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.
ESD Protection
Each and every I/O port is protected against the hazards of Electro Static Discharge.
ECO Power
With MSI ECO Center you can physically cut the power to unused chips to save up to 29% power usage.
EMI Protection
All MSI motherboards comply with stringent American FCC regulations and reduce the impact of Electromagnetic Interference.
OC Genie 4
With the one-second overclocking option OC Genie we're giving you even more performance. Just hit the button and your PC gets another adrenalin shot straight away. Give your system an awesome performance boost with ease.
CLICK BIOS 4
The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.
Software
COMMAND CENTER
MSI's Command Center software is a very powerful tool to push your motherboard to the max. With a very intuitive touch ready interface, Command Center allows users to tune settings to increase system stability, maximize overclocking performance and adjust cooling features.
LIVE UPDATE 6
MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.
UNLIMITED RAMDISK
MSI Command Center integrates an unlimited RAMdisk. With a RAMdisk you can create a virtual drive from your system memory enabling speeds 20x faster than a modern SSD.
- Speed up system performance
- Load complete game images
- Speed up games, apps and browser
ECO CENTER
Save the planet, lower your electrical bill. ECO Center lets you disable unused chips and functions used on your motherboard. By cutting off the power entirely, your motherboard will run more efficient, up to 29%!
Intel Small Business Advantage
Intel® Small Business Advantage is a total solution to deliver the enhanced security & productivity for PCs that small businesses demand.
SECURITY
Software Monitor
Keeps Critical Software Runing.
Data Backup and Restore
Protects Small Business Data.
USB Blocker
Enhances Small Business Security.
PRODUCTIVITY
PC Health Center
Keeps PCs Running at Their Peak.
Energy Saver
Lowers Energt Usage.
Intel® Wireless Display
Enhances Employee Productivity
SMART UTILITIES
The MSI Smart Utilities application helps to easily setup, configure and boost your systems’ performance and more through 3 Intel® key technologies:
- Intel® Rapid Start
- Intel® Smart Response
- Intel® Smart Connect
FAST BOOT
No more seamless waiting for your O/S to be loaded! MSI Fast Boot helps to make your system boot lightning fast. MSI Fast Boot also features a GO2BIOS button. Simply click it to restart your PC and go straight to the system BIOS.
4K UHD SUPPORT
Enjoy awesome 4K UHD video playback with MSI 9 series motherboards. MSI motherboards that are equipped with HDMI port(s) support the latest 4K UHD (2160p ultra-high definition) resolution to provide an unprecedented breathtaking visual experience.
HDMI
Enjoy the awesome HD video playback now! MSI motherboards that equip with HDMI port(s) supports the latest and the most innovative signal outputs to provide an unprecedented visual experience.
