性能
| 主板元件 |
ATX |
| 英特尔®快速存储技术 |
Y |
| 主板芯片组系列 |
Intel |
| 音频输出通道数量 |
7.1 channels |
| 英特尔® 极限内存认证标准 （Intel® XMP) |
Y |
| 英特尔®远程电脑辅助技术（RPAT） |
N |
| 英特尔®静音系统技术（QST） |
N |
| 音频系统 |
Realtek ALC1150 |
| RAID 配置 |
1, 5, 10 |
| 组件应用 |
PC |
| 英特尔® 矩阵存储技术 |
N |
内存参数
| 可支持内存时钟速度 |
2133, 2200, 2400, 2600, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466 MHz |
| 支持的内存类型 |
DDR4-SDRAM |
| 内存通道支持 |
Quad |
| 内存插槽类型 |
DIMM |
| 內存插槽数量 |
8 |
| 最大内部存储 |
128 GB |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
UEFI |
| 清除CMOS按钮 |
Y |
| 清除CMOS跳线 |
Y |
内置输入/输出系统
| USB 2.0接口 |
2 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
2 |
| SATA III连接器数量 |
10 |
| 支持存储驱动器界面 |
M.2, Serial ATA III |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 前面板音频接头 |
Y |
| M.2 (M) 插槽数量 |
1 |
| SATA Express 端口数量 |
1 |
图像
| DirectX版本 |
12.0 |
| 并行处理技术支持 |
3-Way CrossFireX, 3-Way SLI |
处理器的特殊功能
| 英特尔®可信执行技术 |
N |
| 无冲突处理器设计 |
Y |
| 英特尔®智能响应技术 |
Y |
| 英特尔®虚拟化技术 |
VT-d |
| 英特尔®vPro™ 技术 |
N |
扩展槽
| PCI Express x1（Gen 2.x）插槽 |
2 |
| PCI Express X16（Gen 3.x）插槽 |
4 |
技术细节
| 英特尔® 快速存储技术企业版（Intel® RSTe） |
N |
| 英特尔®直接输入/输出硬件辅助虚拟化技术 (Intel® VT-d) |
Y |
联网
| 局域网控制器 |
Intel I218V |
| 以太网接口类型 |
Gigabit Ethernet |
背板输出端口
| USB3.1（第 2 代3.1）Type-A 端口数量 |
1 |
| USB3.1（第 2 代3.1）Type-C 端口数量 |
1 |
| PS/2连接埠数量 |
1 |
| USB2.0端口的数量 |
4 |
| S/PDIF输出接口 |
Y |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
处理器
| 处理器插槽 |
LGA 2011-v3 |
| 兼容处理器 |
Core i7 |
另外
| 主板晶片 |
Intel X99 |
| 英特尔® 高保真音频技术 |
Y |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |

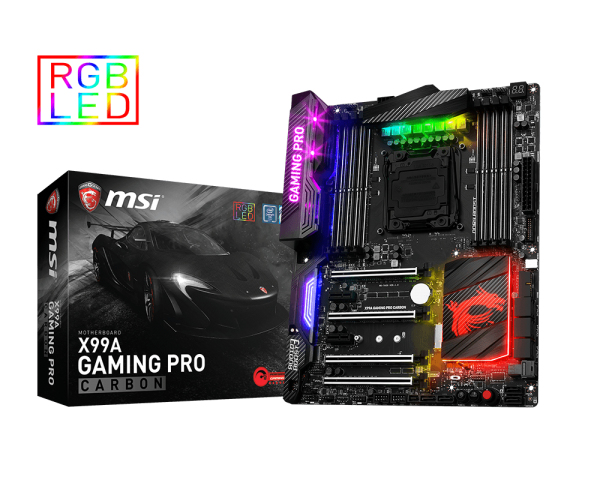

Chipset Intel X99, Socket LGA2100-3, 8 x DDR4 DIMM, 128GB, Quad channel, ATX
BLACK WITH CARBON SKIN
Carbon-fiber-reinforced polymer is used extensively the world of car racing, where each second counts. Besides its strength and futuristic look, carbon-fiber is also very light for ultimate performance to pursue track records. MSI GAMING motherboards are dedicated to ultimate performance and the best gaming experience. The CARBON motherboards black scheme combines flashiness with sophistication that is sure to make your pc stand out in looks and performance.
Mystic Light
Customize and set up your own color scheme with Mystic Light. Make your build look on fire or cold as ice. You are in control. You can select any of the colors from the palette to match your systems’ design. Tired of always the same color? Just change it to another one using the easy to use Mystic Light APP available on PC, phone and tablet, and make your PC look & feel brand new!
Mystic Light Extension
Dedicated HEADER for 4-PIN RGB-STRIP & LIGHTING CONTROL
Designed for anyone who simply wants to have a perfectly stylish gaming rig. With MSI's Mystic Light Extension header, it provides the most intuitive way to control the fascinated LED strip without the ordinary controller. Just install the standard 12V RGB strips onto the 4-pin Mystic Light Extension RGB-strip header, then control your lighting to any style you want. Extend the Mystic Light to whole gaming rig and your gaming room.
Unmatched Memory Performance and Stability
With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.
Steel Armor technology is now also available for DDR4 Boost, offering better EMI-shielding and even better signal strength, for optimal memory performance.
Dominate the game with lowest latency
Get ready to crush your enemies on the battlefield with MSI® GAMING LAN, featuring carefully selected components to ensure the best online gaming experience without lag.
DEDICATED GAMING LAN WITH INTEL®
Experience a more fluid game with Intel® i218 LAN. Intel® i218 LAN is designed to deliver high performance when gaming, delivering more throughput than other solutions.
Intel® i218 LAN is optimized for championship level online and LAN eSports by reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This way, your CPU can be used more effectively and you can enjoy more FPS when gaming.
Gaming optimized bandwith management
Dedicated to giving you the best online gaming experience with optimized traffic prioritization and low latency, MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games.
MSI GAMING LAN Manager
- Automatically prioritizes games above other applications
- Allows you to change applications' traffic priority
- Allows you to customize bandwidth for each application
LAN Protect
Featuring 15KV anti-surge protection to shield your network from lightning strikes and static electricity, LAN Protect is a LAN connector designed to give you the best networking experience. It's highlighted with a red LED inside the RJ45 connector to show its functionality.
Reward your ears with studio grade sound quality
With Audio Boost 3, powered by Nahimic Sound Technology, we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 8-channel HD Audio or high impendaㄇnce headphones and truly dominate the game.
2X FASTER MSI USB 3.1 GEN2
Transfer your favorite games, music and movies over USB faster than ever. USB 3.1 Gen2 enables lightning-fast transfer speeds up to 10Gb/s!
Benefits
- 2X faster than USB 3.1 Gen1
- 20X faster than USB 2.0
- Up to 10Gbps data transfer bandwidth
- Boost transfer rate for your PC and peripherals
FRONT USB TYPE-C
FRONT USB TYPE-C is compatible with next generation PC chassis, perfect for the latest smartphones and great for next generation mobile storage devices, the X99A GAMING PRO CARBON is world’s first motherboard to feature front USB 3.1 Type-C.
MILITARY CLASS 5 COMPONENTS
Military Class 5 is the latest evolution in high quality components. The Titanium Choke and Dark CAP ensure that your PC runs stable under extreme gaming conditions.
Titanium Choke
Titanium Choke uses a Titanium core that has better ability in thermal and higher temperature tolerance. This allows the Titanium Choke to run at a 220 degree Celsius high temperature, have a 40% higher current capacity, a 30% improvement in power efficiency and better overclocking power stability.
DARK CAP
With their aluminum core design, Dark CAPs has been a staple in high-end motherboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.
