性能
| 主板元件 |
ATX |
| 主板芯片组系列 |
Intel |
| 组件应用 |
PC |
内存参数
| 可支持内存时钟速度 |
1066, 1333, 1600, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 3000 MHz |
| 无错误检测和更正 |
Y |
| 支持的内存类型 |
DDR3-SDRAM |
| 内存通道支持 |
Dual |
| 内存插槽类型 |
DIMM |
| 内置存储器 |
32 GB |
基本輸出輸入系統/BIOS
| 基本输入输出系统类型 |
AMI |
| 清除CMOS跳线 |
Y |
内置输入/输出系统
| USB 2.0接口 |
2 |
| ATX电源接头 |
Y |
| TPM（可信任安全平台模组）接口 |
Y |
| USB 3.0（第 1代3.1）连接器 |
1 |
| 并行接口 |
Y |
| CPU风扇接口 |
Y |
| 机箱防盗接口 |
Y |
| 前面板音频接头 |
Y |
| 串行端口接头连接器 |
1 |
背板输出端口
| DVI-D接口数量 |
1 |
| PS/2连接埠数量 |
1 |
| 数字音频光学输出 |
6 |
| DisplayPort 数量 |
1 |
| USB 3.0（第 1代3.1）Type-A 端口数量 |
4 |
| VGA（D-SUB）端口数量 |
1 |
扩展槽
| PCI Express x1（Gen 2.x）插槽 |
4 |
| PCI Express X16（Gen 2.x）插槽 |
1 |
| PCI Express X16（Gen 3.x）插槽 |
1 |
另外
| 主板晶片 |
Intel Z97 |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
Intel Z97 Express Chipset, DDR3 DIMMs 1066-3300 MHz, 32GB Max, Dual-Channel, non-ECC, XMP, Gigabit LAN, ATX Form Factor, 9 mounting holes
- Supports 4th and 5th Gen Intel Core/Pentium/Celeron processors for LGA 1150 socket
- Supports DDR3-3300(OC) Memory
- M.2 + USB 3.0 + SATA 6Gb/s
- Guard-Pro: Improved Protection and Power Efficiency
- Military Class 4: Top Quality & Stability
- USB Steel Power: Surve Stable 5V Power & Better Signal Transmission over USB
- OC Genie 4: Overclock in 1 Second
- Click BIOS 4: Easily Fine-tune Your System
- 4K UHD Support: Ultra-high Definition Visual Experience
- Multi-GPU: AMD CrossFire Support
- Command Center: Control & Customize Your PC Settings
- Fast Boot: Quickly Boot Up & Enter OS in A Few Seconds
- Smart Utilities: Easily Setup & Configure Intel Technologies
Push your SSD to the limit
Enjoy a blazing fast system boot up and insanely fast loading of applications and games with selected MSI motherboards. We offer the next generation of high speed storage support through M.2 and SATA Express. M.2 and SATA Express transfer data through a PCI Express 2.0 x2 interface up to 10 Gb/s, making it 67% faster than SATA 3.0 solutions.
Faster storage solutions with M.2
M.2 is the successor to mSATA, offering a 67% performance increase up to 10 Gb/s. M.2 is packed in a small form factor and is compatible with 3 different sizes to fit most storage solutions.
Flexible fast storage with SATA Express
SATA Express introduces a new solution in high speed storage through PCI Express, providing more bandwidth for the latest generation SSDs. We offer flexible solutions with a M.2 to SATA Express converter for more convenience
Optimized for multiple graphics cards
MSI motherboards feature one or more PCI Express 3.0 slots, perfectly aligned and with enough space for an optimal airflow when using multiple graphics cards. That way, you will never have to worry about an overheating PC, while you are enjoying the best graphics jumping off from your monitor when running a AMD CrossFire gaming setup.

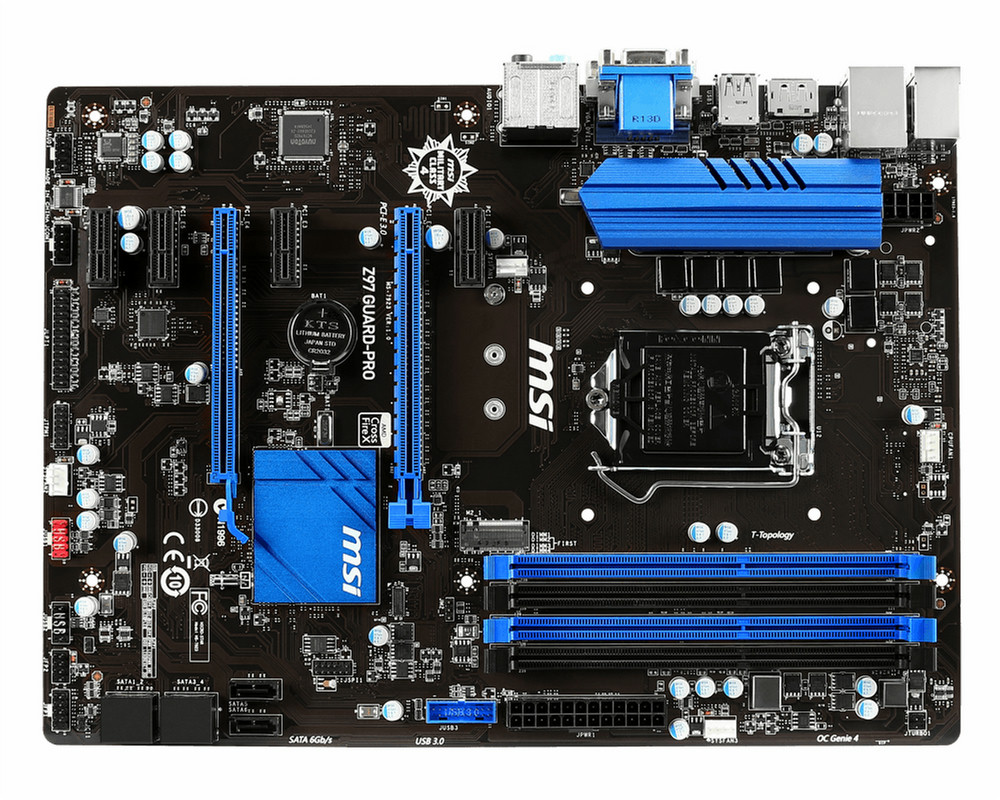

The MSI H97/Z97 GUARD-PRO motherboard is the ideal high performance solution for mining crypto currencies. You get a total of 6 PCI Express slots perfectly aligned to make sure you are able to use them all at once at optimal operation.
