能量控制
| 电源 |
0.6 W |
| 最大电流 |
0.05 A |
| 电压 |
12 V |
性能
| 速度调节设置 |
3 |
| 适用于 |
Processor |
| 最大气流 |
92.3 cfm |
| 最小气流 |
63.4 cfm |
| 气流 |
92.3 m³/h |
| 最低空气压力 |
1.21 mmH2O |
| 最大空气压力 |
1.68 mmH2O |
| 噪音水平（高速） |
19.8 dB |
| 转速（最小） |
300 RPM |
| 转速（最大） |
1300 RPM |
| 类型 |
Fan |
| 风扇数量 |
4 |
| 风扇直径 |
120 mm |
重量和尺寸
| 散热片尺寸（宽x深x高） |
120 x 25 x 120 mm |

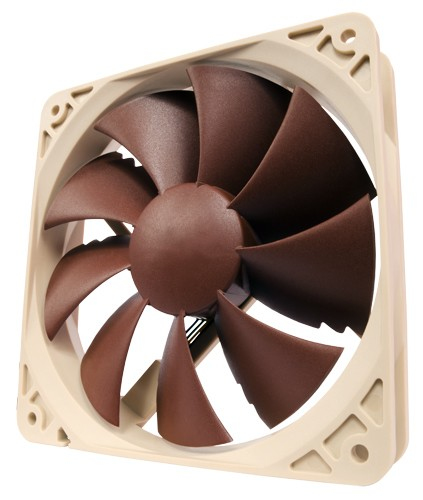

Specifically conceived for pressure demanding applications such as CPU cooling, the classic NF-P12 120mm fan helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components and still impresses users with its exquisite quietness and superb performance. The new PWM version features Noctua’s novel, custom designed PWM IC for fully automatic control and ultra-low power consumption. Equipped with Noctua’s signature SSO bearing and topped off with a 6 years manufacturer’s warranty, the NF-P12 PWM is a proven premium choice for the highest demands.
Proven NF-P12 Design
Tens of thousands of quiet cooling enthusiasts swear by Noctua’s classic NF-P12. Its impressive
quietness, excellent performance and impeccable, time-tested quality made the P12 a default
choice for 120mm quiet cooling.
Pressure-optimized Nine-Blade Design
Specifically developed for high-impedance applications such as CPU coolers, water-cooling
radiators or cases with tight fan grills, the NF-P12 PWM provides outstanding pressure and
airflow performance.
Vortex-Control Notches
Noctua’s signature Vortex-Control Notches split up trailing edge vortices and thus spread the
fan’s noise emission over a wider range of frequencies. This measure makes the NF-P12 PWM
sound more pleasant to the human ear.
Custom designed PWM IC with SCD
Supporting fully automatic PWM speed control, the NF-P12 PWM uses Noctua’s novel, custom
designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By
providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes
the fan quieter at lower speeds.
Ultra-Low Power Consumption
The NF-P12 PWM draws only 0.6W, which is more than 50% less than many other PWM
fans. This doesn’t only make it eco-friendly but also cuts down the electricity bill: Compared
to a typical 2W fan, this allows you to save about half the price of the NF-P12 after 5 years
of continuous use.
