能量控制
| 补充电源连接器 |
1x 6-pin |
| 最低系统供电 |
400 W |
内存参数
| 内存带宽(最大) |
192 GB/s |
| 图形适配器内存类型 |
GDDR5 |
| 数据宽度 |
192 bit |
| 独立显卡适配器內存 |
6 GB |
| 内存时钟速度 |
4000 MHz |
端口 & 界面
| DVI-D接口数量 |
1 |
| 接口类型 |
PCI Express x16 3.0 |
| HDMI端口数量 |
1 |
| DisplayPort 数量 |
3 |
性能
| NVIDIA® G-SYNC 技术配置 |
Y |
| DirectX版本 |
12.0 |
| OpenGL版本 |
4.5 |
| HDCP |
N |
| 集成电视调谐器 |
N |
| PhysX |
Y |
| NVIDIA 3D Vision |
Y |
处理器
| 图形处理器系列 |
NVIDIA |
| 处理器频率 |
1506 MHz |
| FireStream |
N |
| 处理器提高时钟速度 |
1708 MHz |
| CUDA |
Y |
设计
| 格式要素 |
ATX |
| 冷却方式 |
Active |
| 插槽数量 |
2 |
另外
| 双dvi(互应式数字视频) |
Y |
| 图形处理器 |
GeForce GTX 1060 |

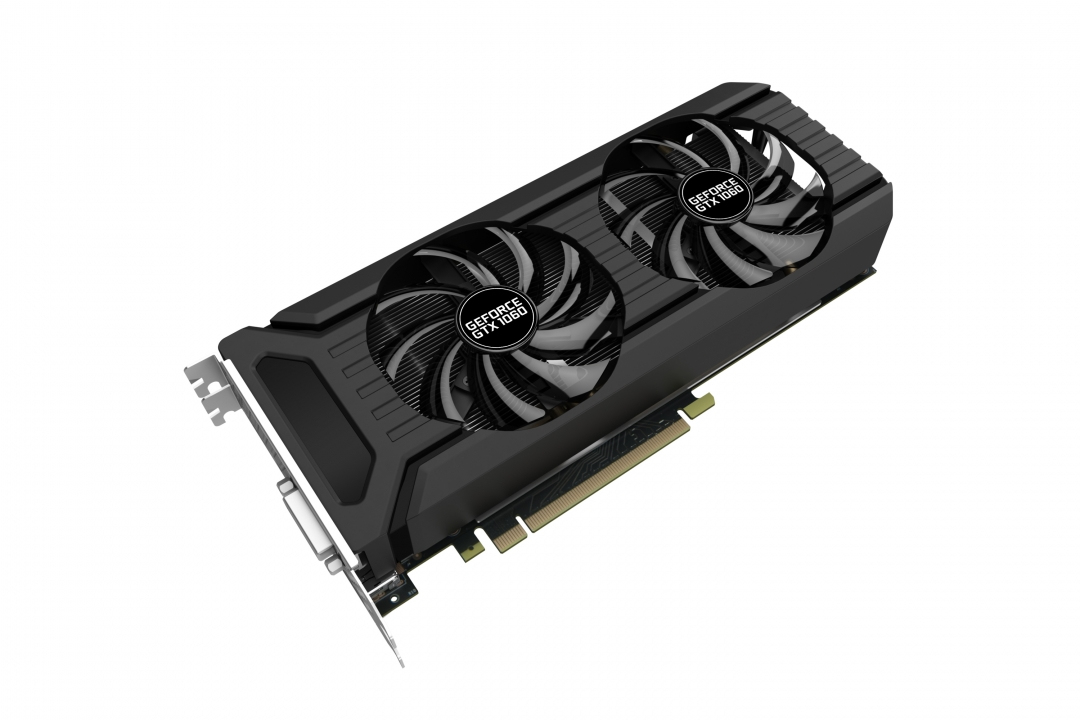

GeForce GTX 1060 Dual, PCI Express x16 3.0, 6GB GDDR5, 192bit, 1506MHz, HDMI, 3x DisplayPort, 120W
Palit GeForce®GTX 1060 DUAL is build with "Dual Fan" and is loaded with innovative new gaming technologies, making it the perfect choice for the latest high-definition games. Powered by NVIDIA Pascal™—the most advanced GPU architecture ever created—the GeForce®GTX 1060 delivers brilliant performance that opens the door to virtual reality and beyond.
<b>Honeycomb Bracket </b>
The design of honeycomb bracket increases airflow by up to 15%, allowing the heat generated from GPU to be exhausted via the honeycomb design bracket. This enables more efficient cooling effects.
<b>Dual Fan</b>
A Dual Fan design offers double the cooling performance, and combined with the 9CM-9CM Smart Fans, heat is effectively drawn away from hot spots.
<b>4k</b>
With its HDMI and DisplayPort ports, the Palit provides a flawless, jaw dropping experience at Dual 4K monitors.
