数据传输
| MAC 地址表 |
8000 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10/ 100/1000Base-T |
| 交换容量 |
48 Gbit/s |
| 最大数据传输率 |
1 Gbit/s |
| 吞吐量 |
35.7 Mpps |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 网络标准 |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| 流量控制支持 |
Y |
| 10G支持 |
N |
能量控制
| 功耗（一般操作） |
18 W |
| 交流电（AC）输入电压 |
100-240 V |
| 交流电（AC）输入频率 |
50/60 Hz |
| 能源之星认证 |
N |
端口 & 界面
| 基本交换 RJ-45 以太网端口数量 |
24 |
| DC-IN插口 |
Y |
环境条件
| 运行湿度范围(H-H) |
5 - 90% |
| 储存温度范围 (T-T) |
-40 - 70 °C |
| 储存相对湿度范围（H - H） |
5 - 90% |
重量和尺寸
| 深度 |
180 mm |
| 重量 |
2440 g |
| 宽度 |
440 mm |
| 高度 |
45 mm |
设计
| 认证 |
FCC, CE |
| 格式要素 |
1U |
| 机架安装 |
Y |
另外
| 产品色彩 |
Black |
| 巨型帧 |
Y |
| 运行温度范围（T - T） |
0 - 50 °C |

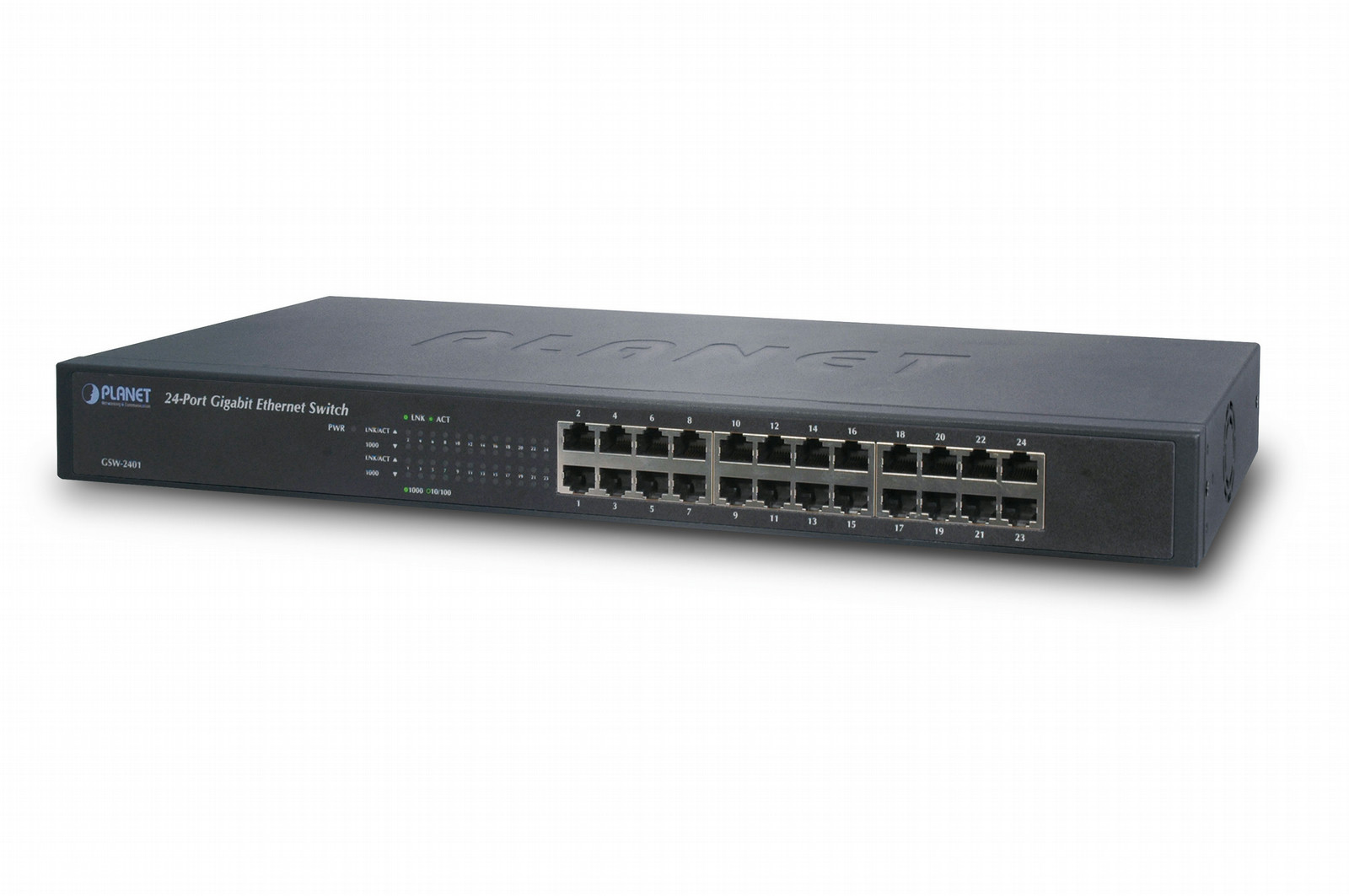

GSW-2401 - 24-Port 10/100/1000Mbps, 48Gbps, 8K MAC, Jumbo, full duplex, 18 W, 2.44kg
Cost-Effective Gigabit Solution for Enterprise Backbone and Data Center Networking
The PLANET GSW-2401 provides 24 RJ-45 10/100/1000Mbps ports for high-speed network connectivity. It automatically identify and determine the correct transmission speed and half / full duplex mode of the attached devices with its 24 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSW-2401 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
High Performance
The GSW-2401 provides high performance architecture of switch that is capable of providing the non-blocking switch fabric and wire-speed throughput as high as 48Gbps, which greatly simplifies the tasks of upgrading the LAN for catering to increasing bandwidth demands. Besides, the Flow Control function of the GSW-2401 enables routers and Servers directly connect to the Switch for fast and reliable data transfer.
All RJ-45 copper interfaces in the GSW-2401 support 10/100/1000Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 6, 5 or 5e cables. It also supports standard for Auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.
Excellent Traffic Transmission
The GSW-2401 supports Store-and-Forward forwarding scheme to ensure low latency and high data integrity, which eliminates unnecessary traffic and relieves congestion on critical network paths. With an intelligent address recognition algorithm, the GSW-2401 could recognize up to 8K different MAC address and enables filtering and forwarding at full wire speed. The high data throughput and 48Gbps internal switching fabric makes it ideal for most Gigabit environments, especially when network upgrades to a Gigabit environment.
Key Features
- Comply with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T Ethernet standard
- 24 10/100/1000Mbps Gigabit Ethernet ports
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
- IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
- Integrated address look-up engine, support 8K absolute MAC addresses
- 9K Jumbo packet support
- Automatic address learning and address aging
- Supports Auto MDI/MDI-X function
- Supports CSMA / CD protocol
- 100-240V AC, 0.6A, 50/60Hz universal Power input
- FCC, CE class A compliant
