数据传输
| MAC 地址表 |
8000 entries |
| 存储转发 |
Y |
| 支持数据传输率 |
10/20/100/200Mbit/s |
| 最大数据传输率 |
0.2 Gbit/s |
其他功能
| 带宽 |
9.6 Gbit/s |
| 安装端口 |
48 |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 接受频率 |
50/60 Hz |
| 液晶显示器功率 |
Y |
| 无线局域网连接 |
N |
| 网路功能 |
Ethernet, Fast Ethernet |
端口 & 界面
| Express卡插槽 |
N |
| 基本交换 RJ-45 以太网端口数量 |
48 |
| 以太网铜缆技术 |
100BASE-TX, 10BASE-T |
| 千兆以太网(铜)端口数量 |
48 |
联网
| 自动 MDI / MDI - X 检测功能 |
Y |
| 10G支持 |
N |
| 全双工传输 |
Y |
能量控制
| 输出功率 |
30 W |
| 输入电压 |
100 - 240 V |
| 输入电流 |
0.3 A |

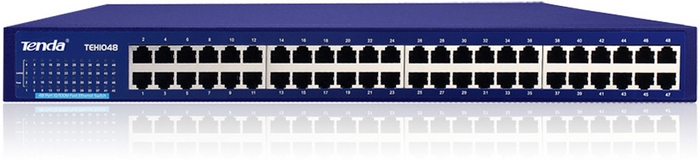

48-port 10/100Mbps Ethernet Switch, IEEE802.3, IEEE802.3u, IEEE 802.3x, Store-&-forward, 8K MAC Address Table, Auto MDI/MDIX, 10/100Mbps, 9.6Gbps Backplane Bandwidth, 48x RJ45
TEH1048 provides 48 10/100Mbps RJ-45 ports. All of the ports support Auto MDI/MDIX, auto-negotiation on transmission mode and speed, and wire-speed non-blocking switching. Furthermore, featuring easy installation and use, high performance and cost effective and 10/100Mbps network’s seamless connection, it fully meets diversified applications and is an ideal choice for small-medium-sized enterprise, education and home network environment.
- Complies with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX fast Ethernet Standards.
- 48 10/100Mbps Auto-Negotiation RJ45 ports (auto-negotiation on duplex mode and speed).
- Auto MDI/MDIX on all ports.
- 8K MAC address table, MAC address learning and auto-aging.
- Built-in high-performance switching mode Power supply: 100~240V 50/60Hz input.
- Standard 19-inch rack-mountable.
