内置输入/输出系统
SATA III连接器数量 |
2 |
SATA II连接器数量 |
4 |
TPM(可信任安全平台模组)接口 |
Y |
USB 2.0接口 |
6 |
集成的SAS端口 |
8 |
串行端口接头连接器 |
1 |
联网
无线局域网连接 |
N |
局域网控制器 |
Intel I210, Realtek RTL8201F |
以太网接口类型 |
Gigabit Ethernet |
基本輸出輸入系統/BIOS
ACPI的版本 |
4.0 |
基本输入输出系统类型 |
UEFI AMI |
背板输出端口
VGA(D-SUB)端口数量 |
1 |
串口数量 |
1 |
IPMI LAN端口(RJ-45) |
Y |
存储控制器
硬盘接口 |
Serial ATA II, Serial ATA III, Serial Attached SCSI (SAS) |
内存参数
可支持内存时钟速度 |
800, 1066, 1333, 1600 MHz |
无错误检测和更正 |
Y |
错误更正代码 |
Y |
DIMM插槽数量 |
12 |
支持的内存类型 |
DDR3-SDRAM |
支持的DIMM大小 |
16GB, 1GB, 2GB, 32GB, 4GB, 8GB |
内存电压 |
1.5, 1.35 V |
支持UDIMM模组容量 |
16GB, 1GB, 2GB, 32GB, 4GB, 8GB |
最大UDIMM内存 |
96 GB |
最大RDIMM内存 |
384 GB |
最大 LRDIMM 内存 |
768 GB |
最大内部存储 |
768 GB |
处理器
可支持处理器数量 |
2 |
英特尔® 至强® 系列 |
E5-2400 |
支持QPI |
8 GT/s |
处理器生产厂商 |
Intel |
扩展槽
PCI Express X 8(Gen 3.x)插槽 |
2 |
PCI 插槽 |
1 |
PCI Express X16(Gen 3.x)插槽 |
1 |
PCI Express X4(Gen 3.x)插槽 |
1 |
PCI Express X 4(Gen 2.x)插槽 |
1 |
另外
以太网连接器 |
Y |
以太网路(RJ-45)连接接口数量 |
2 |
主板晶片 |
Intel C606 |

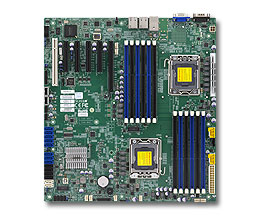

2 x LGA 1356, Intel C606, max. 768GB DDR3 ECC 1600/1333/1066/800MHz ECC SDRAM, 2 x Gigabit LAN, 2x SATA III, 4x SATA II, 8x SAS, Standard Retail Pack
Xeon® E5 Family BOARDS / Socket B2 (LGA 1356)
Supermicro's New Generation X9 Serverboards offer the highest levels of performance, efficiency and scalability in the industry. The Supermicro X9 Serverboards are available in a variety of architectures including Twin, Data Center Optimized, I/O Optimized, and SuperWorkstation Solutions. These Serverboards offers numerous advantages including up to 384GB of Reg. ECC DDR3-1600MHz memory in 12 DIMM slots, SATA 3.0 and SAS 2.0 (6Gb/s) HDD support, PCI-E 3.0 technology, IPMI 2.0, and Intel® Xeon® processor E5-2400 v2 series for highest performance. With this New Generation X9 Serverboard Platform Supermicro offers the most extensive selection of solutions for Data Center, Enterprise IT, Cloud Computing, Graphics, Technical Computing, and HPC environments.
