安全
| 防火墙 |
DoS, SPI |
| 支持虚拟专用网 |
PPTP, L2TP, IPSec |
| MAC（媒体存储控制）地址过滤 |
Y |
以太网LAN特性
| 布线技术 |
10/100/1000Base-T(X) |
| 以太网LAN接口类型 |
Gigabit Ethernet |
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
无线局域网的特点
| Wi-Fi 频段 |
Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi标准 |
IEEE 802.11ac |
| 无线局域网类型 |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
其他功能
| 带宽（第二） |
5 GHz |
| 带宽（第一） |
2.4 GHz |
协议
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
另外
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
AC1350 - 802.11ac/b/g/n/a, 2.4GHz/5GHz, 4 x RJ-45, 2 USB 2.0, 867Mbps, 64/128-bit WEP, WPA / WPA2, DHCP
- Supports 802.11ac standard - the next generation of Wi-Fi
- Simultaneous 2.4GHz 450Mbps and 5GHz 867Mbps connections for 1.35Gbps of total available bandwidth
- Dual USB Ports - easily share printers, files or media with your friends or family locally or over the internet
- Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network
- Easy network management at your fingertips with TP-LINK Tether
802.11ac - The Next Generation of Wi-Fi

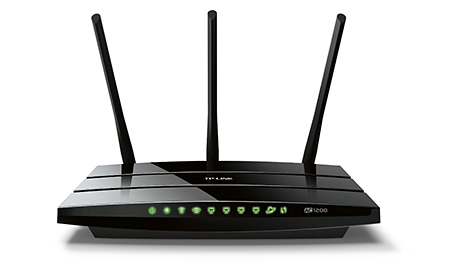

TP-LINK’s Archer C5 comes with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speeds and delivering a combined wireless data transfer rate of up to 1.35Gbps. With 867Mbps wireless speeds over the crystal clear 5GHz band and 450Mbps over the 2.4GHz band, the Archer C5 is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
1.35Gbps Dual Band Connections for Lag-Free Work and Entertainment
The Archer C5 operates over both the 2.4GHz and 5GHz bands, ensuring amazing wireless performance. Simultaneous Dual Band offers you the flexibility of two dedicated networks – with multiple times the bandwidth for your needs. Simple tasks like sending e-mails or web browsing can be handled by the 2.4GHz band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band – all at the same time.
5 Antennas for Fully Expanded Coverage
With 2 external 5dBi antennas serving the 5GHz band and 3 internal antennas serving the 2.4GHz band combined with higher quality antenna technology, you can maintain high speeds across greater distances. This provides you with incredible wireless coverage and reliability from anywhere in your large home or office.
Full Gigabit Wired Connections for Ultrafast Data Transfer Speeds
With one gigabit WAN port and four gigabit LAN ports, speeds can be up to 10× faster than fast Ethernet connections. The Archer C5 is a powerful hub to support a robust and extremely fast wired network.
Dual Multifunctional USB Ports for Storage and Sharing
With the two multi-functional USB 2.0 ports, you can share printers, files and media with different devices through your local network or via the ftp server while away from home.
TP-lINK Tether - Easy Network Management
TP-LINK's Tether App provides the easiest way to access, manage and share your router's resources with your iOS and android devices. From setup, to parental control, to media sharing, Tether provides a simple, intuitive user interface to see what the status of your router is, who's online and what their privileges are.
Guest Network
Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network.
Easy Set-up
Included in the resource CD, TP-LINK's optimized configuration utility can help users complete the entire software installation and wireless network settings in just a few minutes.
IPv6 Supported
Archer C5 supports IPv6, which is foundational to the next generation Internet and enables a range of new services and improved user experiences.
