内容包装
| 包含电缆 |
LAN (RJ-45) |
| 每包装商品数量 |
2 pc(s) |
| 快速安装向导 |
Y |
系统要求
| 可支持的Linux操作系统 |
Y |
| 可支持的Mac操作系统 |
Y |
| 可支持的Windows操作系统 |
Y |
性能
| 以太网的数据传输率 |
10, 100, 1000 Mbit/s |
| 以太网LAN接口类型 |
Gigabit Ethernet |
| 内置电源插座 |
Y |
| 电力线标准 |
HomePlug AV2 |
| 支持安全算法 |
128-bit AES |
| 网络标准 |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| 无线局域网连接 |
N |
| 最高操作距离 |
300 m |
| 调制 |
OFDM |
能量控制
| 功耗（一般操作） |
4.7 W |
| 功耗（待机） |
1.4 W |
| 交流电（AC）输入电压 |
220 V |
| 交流电（AC）输入频率 |
50 Hz |
重量和尺寸
| 深度 |
68 mm |
| 宽度 |
123 mm |
| 高度 |
30 mm |
设计
| RoHS符合性 |
Y |
| 液晶显示器指示灯 |
PLC |
| 认证 |
CE, RoHS |
环境条件
| 储存温度范围 (T-T) |
-40 - 70 °C |
| 运行湿度范围(H-H) |
10 - 90% |
| 储存相对湿度范围（H - H） |
5 - 90% |
另外
| 产品色彩 |
White |
| 数据传输率（最大） |
1200 Mbit/s |
| 以太网连接器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
1 |
| 运行温度范围（T - T） |
0 - 40 °C |

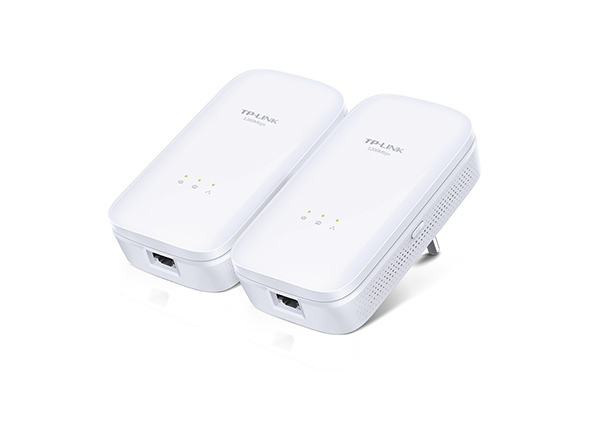

AV1200 Gigabit Powerline Starter Kit
1200Mbps!
Perfect for Bandwidth Demanding Activities
Advanced HomePlug AV2 technology means the TL-PA8010 KIT supports 2x2 MIMO* , so users benefit from ultra-fast data transfer speeds of up to 1200Mbps. Perfect for bandwidth demanding activities like streaming Ultra HD video to multiple devices simultaneously, online gaming and large file transfers.
Larger Range
MIMO Technology maximizes the performance on the independent streams, which improves coverage throughout the home, particularly for previously hard to reach outlets.
Long Distance Long Distance
Higher Transmission Capacity & More Stable Connections
MIMO Technology means the TL-PA8010 KIT can use the 3 wires, including the live, neutral and earth to create multiple data paths, meaning that you benefit from faster data throughput and more stable connections.
Gigabit Port
for Ultra-fast Datasheet Transfer
With one Gigabit Ethernet port, TL-PA8010 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA8010 KIT the perfect home entertainment companion.
Plug and Play,
No Configuration Required
Connect a powerline adapter to the router; plug another powerline adapter into a wall socket in another room, and connect it to your Internet enabled device via Ethernet - and you’re done!
Power Save by Up to 85%
TL-PA8010 KIT is a new-generation of Powerline adapter.
Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.
