以太网LAN特性
| 布线技术 |
10/100Base-T(X) |
| 以太网的数据传输率 |
10, 100 Mbit/s |
| 以太网LAN接口类型 |
Fast Ethernet |
联网
| 接收机灵敏度 |
270M: -68dBm@10% PER\n130M: -68dBm@10% PER\n108M: -68dBm@10% PER\n54M: -68dBm@10% PER\n11M: -85dBm@8% PER\n6M: -88dBm@10% PER\n1M: -90dBm@8% PER |
安全
| 支持虚拟专用网 |
PPTP, L2TP, IPSec |
| 防火墙 |
Y |
| MAC（媒体存储控制）地址过滤 |
Y |
其他功能
| xDSL connection |
N |
| 频率范围 |
2.4 - 2.4835 GHz |
| 机架安装 |
N |
| 输入电流 |
0.6 A |
管理功能
| 支持服务质量（QoS） |
Y |
| 重启按钮 |
Y |
| 最小曲线半径 |
Y |
| 网上管理 |
Y |
| 通用即插即用（UPnP） |
Y |
协议
| 动态主机配置协议客户 |
Y |
| 动态主机配置协议服务器 |
Y |
| DMZ支持 |
Y |
软件
| 可支持的Mac操作系统 |
Y |
| 可支持的Linux操作系统 |
Y |
无线局域网的特点
| 无线局域网类型 |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi标准 |
IEEE 802.11n |
| WLAN的数据传输率（最大值） |
300 Mbit/s |
另外
| 以太网连接器 |
Y |
| 开/关切换钮 |
Y |
| 包括 AC 适配器 |
Y |
| 以太网路(RJ-45)连接接口数量 |
4 |

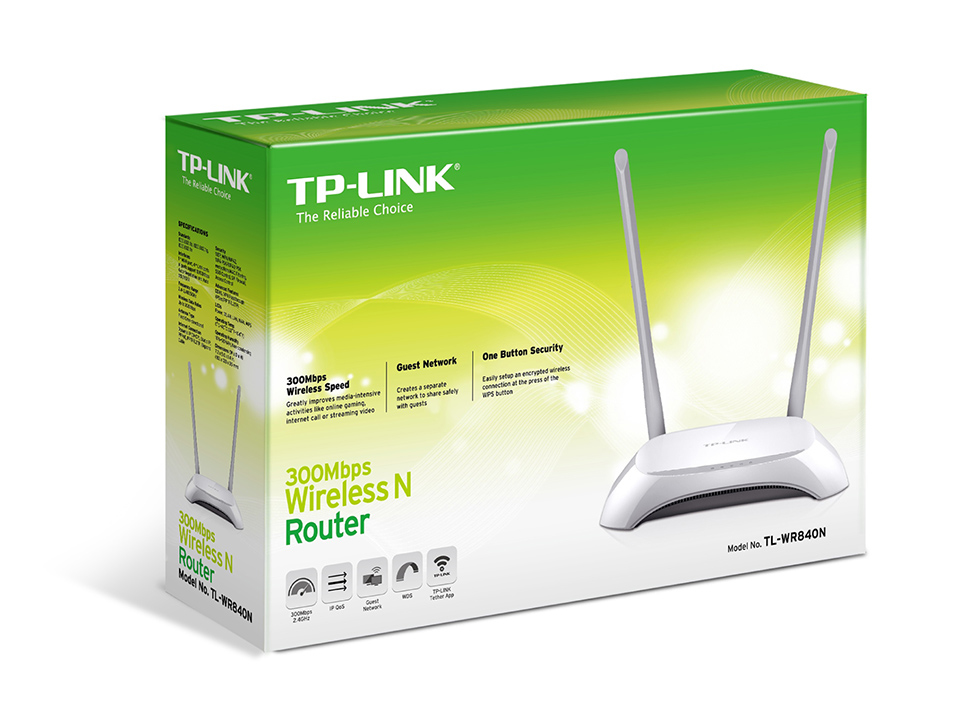

TL-WR840N - 4x RJ-45, 1x WAN, IEEE 802.11b/g/n, 2.4-2.4835 GHz, 300Mb/s, DHCP, 9VDC/0.6A, White/Grey
Highlights:
- 300Mbps wireless transmission rate ideal for both bandwidth sensitive tasks and basic work;
- Easy wireless security encryption at a push of WPS button;
- IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC;
- WDS wireless bridge provides seamless bridging to expand your wireless network.
What This Product Does
The 300Mbps Wireless N Router TL-WR840N is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. The TL-WR840N creates an exceptional and advanced wireless performance, making it ideal for streaming HD video, VoIP and online gaming. Also, Wi-Fi Protected Setup (WPS) button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.
300Mbps Wireless N Speed - Fast Download Speed
TP-LINK’s TL-WR840N is a high speed solution that is compatible with IEEE 802.11b/g/n. Based on 802.11n technology, TL-WR840N gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.
CCA Technology - Stable Wireless Signals
Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhancing wireless performance.
IP QoS -- Manage your Bandwidth
Within the wireless network, indiscriminate Internet surfing and bandwidth-guzzling downloads by internal users often leave homes or small offices with insufficient bandwidth. TL-WR840N supports an IP QoS function, allowing optimum utilization of bandwidth and offering bandwidth control over congestion, preventing bandwidth abuse. In this way, users of a small network receive committed and specific bandwidth, preventing non-critical applications from degrading network performance.
Easy To Use
With the TL-WR840N even novice users can setup their networks. The device comes with a CD featuring an Easy Setup Assistant that leads users through the setup process step-by-step, and even helps with wireless network settings and security configurations.
Features:
- Wireless N speed of up to 300Mbps makes it ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming and VoIP;
- 2T2R MIMO™ delivers greater throughput at range versus conventional 1T1R;
- Easily setup a WPA encrypted secure connection at a push of the QSS button;
- WDS wireless bridge provides seamless bridging to expand your wireless network;
- QoS function assures the quality of VoIP and multimedia streaming;
- Wi-Fi On/Off Button allows users to simply turn their wireless radio on or off;
- Features parental control function managing the internet access of children or employee's computer;
- Supports virtual server, special application and DMZ host ideal for creating a website within your LAN;
- Offers Auto-mail function for system log, convenient for managing the router;
- Backward compatible with 802.11b/g products;
- Easy Setup Assistant provides quick & hassle free installation;
- Sleek exterior, can be mounted on a wall or placed horizontally on a table or desk.
