Display
| Display diagonal |
42 " |
| Touchscreen technology |
Projected capacitive system |
| Response time |
8 ms |
| Contrast ratio (typical) |
4000:1 |
| Display resolution |
1920 x 1080 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Pixel pitch |
0.485 x 0.485 mm |
| Display viewable area HxV |
930.24 x 523.26 mm |
| Display brightness |
700 cd/m² |
| Full HD |
Y |
| High frequency rate |
60 Hz |
| Backlight type |
LED |
| Display type |
LCD |
Performance
| Linux operating systems supported |
Y |
| Number of speakers |
2 |
| Number of simultaneous touchpoints |
60 |
| RMS rated power |
10 W |
| HDCP |
Y |
| Touch technology |
Multi-touch |
| Mac operating systems supported |
Y |
| Built-in speaker(s) |
Y |
| Windows operating systems supported |
Y |
Power
| Power consumption (typical) |
100 W |
| Power consumption (max) |
130 W |
| AC input voltage |
100-220 V |
Ergonomics
| VESA mounting |
Y |
| VESA mounting interfaces |
400 x 400 mm |
| Wall mountable |
Y |
Operational conditions
| Operating relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-10 - 60 °C |
Weight & dimensions
| Depth |
585.5 mm |
| Weight |
23000 g |
| Width |
993.5 mm |
| Height |
66.4 mm |
Certificates
| RoHS compliance |
Y |
| Certification |
FCC-B, CE, TUV (IEC 60950), C-TICK |
Ports & interfaces
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Packaging data
| Package depth |
192 mm |
| Package weight |
26000 g |
| Package width |
1095 mm |
| Package height |
700 mm |
Additionally
| Display number of colors |
1.073 billion colours |
| Colour of product |
Black |
| Operating temperature range (T-T) |
0 - 40 °C |
LCD, 106.68 cm (42 ") , 1920x1080px, 700 cd/m2, 60Hz
Details

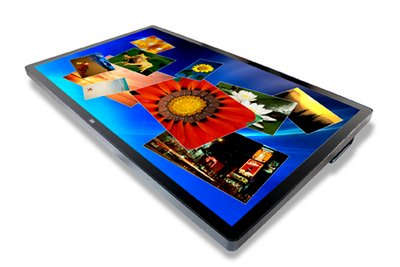

3M takes interactive display technology to the next level by combining uncompromising multi-touch performance, brilliant high-definition graphics, wide viewing angles and elegant product design into a fully-integrated, easy-to-use multi-touch device.
Multi-finger touch‚ ultra-fast response time‚ palm rejection‚ and sleek flat front surface (FFS) capability make 3M Projected Capacitive Technology (3M PCT) a leading high-performance multi-touch solution for immersive multi-finger user interfaces and multi-user‚ collaborative applications. Projected Capacitive Technology is fast becoming the standard for multi-touch interactivity and used by most popular interactive mobile and tablet devices. 3M Projected Capacitive Technology has been specifically developed to provide high performance multi-touch interactivity for display sizes currently ranging from 15 to 32 inches.
3M offers a wide array of fully-integrated Multi-Touch desktop and chassis displays to meet customer requirements for today’s evolving touch applications and tomorrow’s multi-touch user interfaces.
