Performance
Linux operating systems supported |
Y |
Mac operating systems supported |
Y |
Other features
Interface type |
USB |
On Screen Display (OSD) |
Y |
Display
Display viewable area HxV |
304.1 x 228.1 mm |
Touchscreen technology |
Capacitive |
Display type |
TFT |
Ports & interfaces
USB required |
Y |
VGA (D-Sub) ports quantity |
1 |
Power
AC adapter output voltage |
12 V |
Power supply type |
DC |

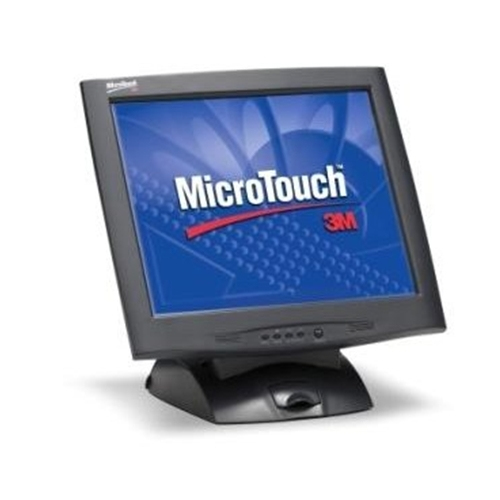

M1500SS - 15" LCD TFT Active Matrix, 1024 x 768, 500:1, 250 cd/m², 30W, USB, 7.4 kg
The 3M MicroTouch Display M1500SS 15" LCD Touch Monitor delivers maximum touch stability. The patented design uses a spine, yoke and positive locking mechanism to keep the display head in place under rapid transactional input. A keyhole pattern in the base provides additional security and stability when needed.
The M1500SS uses the 3M™ MicroTouch™ System SCT3250EX (surface capacitive touch technology) which provides superior optics, durability from contaminants like dust, liquid and grime and speed for high transaction based environments.
- Unaffected by UV light that can cause degradation of optics and yellowing of film-based touch sensors over time
- 3M™ ClearTek™ Hard Coat - Low surface energy coating promotes smooth finger drag, unaffected by surface contaminants
- 3M owns, understands, and warranties the entire system for an unlimited amount of touches for 3 years.
- LCD Technology: TFT, Active Matrix
- Display Colors: 16.2 million
- Pixel Pitch: .297 mm
- Contrast Ratio: 500:1
- Video Response Time: 12 ms typical
- Touch Response Time: 5.4 ms typical
- Brightness without touch screen: 250 cd/m2 (nit) typical
- Brightness with touch screen (max.)(1): 225 cd/m2 (nit) typical
- Viewing Angle (from center)*: Horizontal ±75 degrees typical; Vertical: ±75 degrees typical
- On-screen Display: Controls Brightness, Contrast, Horizontal/Vertical Position, Clock, Phase, Auto configuration, Color, Lockable OSD
- Maximum Resolution: 1024 x 768
- Operating Environment: 0 to 40 degrees C. Relative Humidity, Non-condensing 85%
- Storage Environment: -20 to +60 degrees C.
* Measured at a contrast ratio of 5
(1) Brightness measured using a 3M MicroTouch Sensor SCT3250.
(2) DPMS: Display power management signaling for reduced power consumption during non-use.
