Display
| Display diagonal |
18.5 " |
| Aspect ratio |
16:9 |
| HD-Ready |
Y |
| Touchscreen technology |
Capacitive |
| Response time |
9 ms |
| Contrast ratio (typical) |
1000:1 |
| Display resolution |
1366 x 768 pixels |
| Viewing angle, horizontal |
178 ° |
| Viewing angle, vertical |
178 ° |
| Pixel pitch |
0.100 x 0.300 mm |
| Display viewable area HxV |
409.8 x 230.4 mm |
| Display brightness |
250 cd/m² |
| Backlight type |
LED |
| Display |
IPS |
| LED backlight |
Y |
| Display type |
LCD |
Performance
| Linux operating systems supported |
Y |
| Number of speakers |
1 |
| OmniTapps Multitouch compatibility |
N |
| RMS rated power |
3 W |
| Mac operating systems supported |
Y |
| Built-in speaker(s) |
Y |
| Windows operating systems supported |
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Ergonomics
| Placement supported |
Horizontal |
| VESA mounting interfaces |
100 x 100 mm |
| Wall mountable |
Y |
Power
| Power consumption (typical) |
34.5 W |
| AC input frequency |
50/60 Hz |
| Power supply type |
AC |
Operational conditions
| Operating relative humidity (H-H) |
5 - 90% |
| Storage temperature (T-T) |
-10 - 60 °C |
Weight & dimensions
| Depth |
355 mm |
| Weight |
4900 g |
| Width |
453 mm |
| Height |
180 mm |
Ports & interfaces
| Audio input |
1 |
| USB 2.0 ports quantity |
1 |
| DisplayPorts quantity |
1 |
| USB required |
Y |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Certificates
| Certification |
RoHS, FCC-B, CE, TUV, C-Tick |
Other features
| On Screen Display (OSD) |
Y |
| Package dimensions (WxDxH) |
527 x 447 x 232 mm |
Additionally
| Display number of colors |
16.78 million colours |
| Colour of product |
Black |
| Operating temperature range (T-T) |
0 - 40 °C |
46.99 cm (18.5 ") IPS, 1366 x 768, 16.7M, 250 cd/m2, 9ms, HDMI, VGA, DisplayPort, USB, 34.5 W

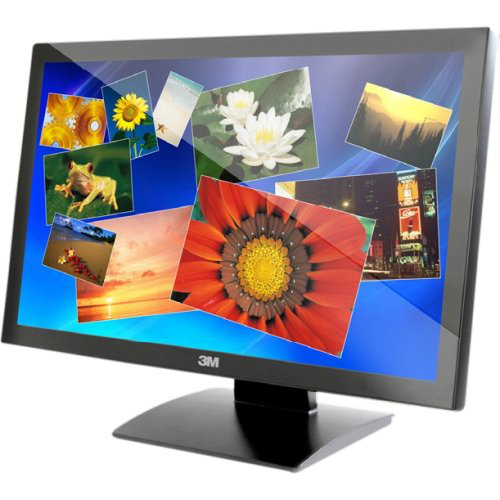

The 18.5-inch 3M™ Multi-Touch Display M1866PW takes interactive display technology to the next level by combining uncompromising multi-touch performance, brilliant high-definition graphics, wide viewing angles and elegant product design into a fully-integrated, easy-to-use, plug-and-play multi-touch desktop device.
The 3M Multi-Touch Display M1866PW incorporates 3M Projected Capacitive Technology and offers full multi-touch capabilities with less than 6 millisecond response time for 20 simultaneous touches. This means fast, accurate touch response over the entire touch surface.
- 20-touch multi-touch performance for intuitive on-screen collaboration
- Ultra-fast 6 ms touch response time for advanced multi-touch applications
- Palm rejection creates natural user operation when using one or two hands
- Superior touch accuracy (99% of true position) enables precise touch performance, even at display edge and corners.
