Features
| Cable standard |
Cat6a |
| Cable shielding |
S/FTP (S-STP) |
| Data transfer rate |
10000 Mbit/s |
| Input impedance |
200 Ω |
| Cable class |
Ea |
STP Jack, RJ-45, 3m

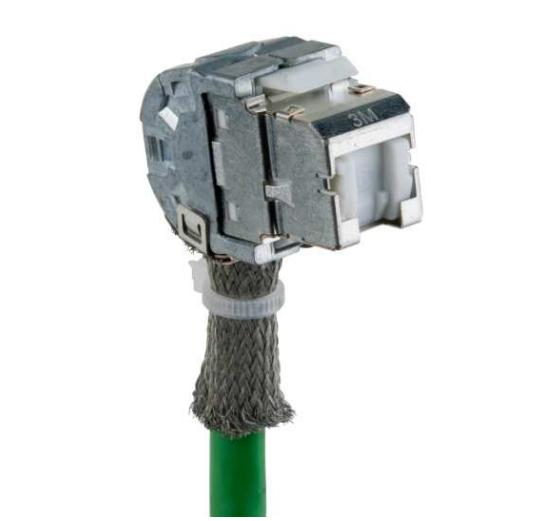

3M™ Volition™ K6A RJ45 STP Jack
,
New Design, with three cable entries The new K6A RJ45 Jack is a key component of the VolitionCategory6A/Class EA system, fully compliant with Category 6A ISO/IEC, EN and TIA standards for hardware performance, confirmed by multiple independent lab certifications (Delta and GHMT).
Its top-class electrical performance guarantees consistently high headroom at any link length, down to 3m links. The unique three cable entry points make it possible to install the jack anywhere.
The 360° shielding of the jack facilitates a worry-free Class EA / Category 6A
installation.
The traditional 3M ‘one click’ design allows an easy, tool-less termination on Volition
Category 6A F/UTP, U/FTP, F/FTP and Category 7 S/FTP cables.
Less cable bending required -
better compliance with minimum bend radius.
Allows selection of the cable entry according to the best cable path: floor,
ceiling, duct, patch panel.
Out performs standards, high reliability - positive permanent link headroom
down to 3m links.
- Assurance that the 3M K6A Jack complies with standards.
- Total immunity to alien crosstalk, by design - no need to test ANEXT on the
- field, dramatic reduction in testing time.
- Tool-less termination • No specialised tools required - termination performance independent of tool
- quality.
- No additional expenditure on tools - No delays caused by lack of tools or
- damaged tools.
- Re-usable jack
- If a wiring mistake is made there is no need to use a new jack - no time wasted waiting for another delivery.
- No untwisting of pairs before termination
- Minimised stripping length - very limited pair untwist - pairs kept together.
- Easy fitting of the pairs without threading through a wire guide.
- Termination performance not affected by operator skills.
- Connector can be terminated with both solid and stranded wire
- Enables ‘jack to plug’ cables to be manufactured using stranded conductors
- (for use in open office architectures and consolidation points).
- Integrated automatic dust shutter
- No additional shuttering required on faceplates.
- Allows direct mounting into floor boxes - protects jacks in the patch panels.
- Same format as other 3M RJ45 connectors.
- Easy mounting onto:
- 3M branded face plates, patch panels, adaptors and other accessories.
- Keystone format, face plates, patch panels, adaptors and other accessories.
- Compact size allows easier cable management and more space to ensure the cable minimum bend radius is never compromised.
- POE+ compliant Supports PoE plus applications according to latest IEEE standards.
