Performance
| Motherboard form factor |
ATX |
Internal I/O
| USB 2.0 connectors |
3 |
| Number of SATA connectors |
6 |
| Number of Parallel ATA connectors |
1 |
| Number of IEEE1394 connectors |
1 |
| Floppy disk drive connector |
Y |
Memory
| Number of memory slots |
4 |
| Maximum internal memory |
8 GB |
Back panel I/O ports
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
Y |
| Microphone in |
Y |
| eSATA ports quantity |
2 |
Expansion slots
| Expansion slots |
1 x PCI-E X16, 1 x PCI-E X16, 1 x PCI-E X1, 2 x PCI |
Networking
| Networking features |
10/100/1000M |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |

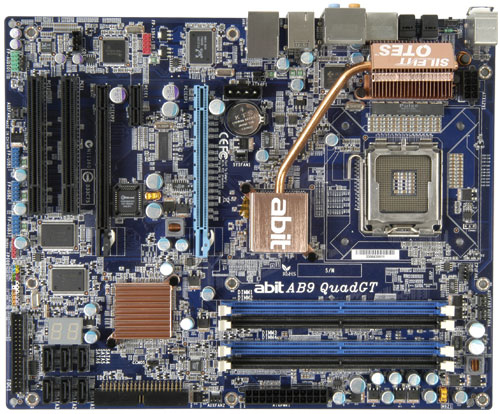

AB9 QuadGT LGA 775 / Intel® 965 / FSB1066 / Dual DDR2 800 / 7.1 CH HD Audio / µGuru™ Tech
With abit's unique µGuru technology now even the most novice users can fully monitor and control their system including voltages, fans and temperatures; it's all just a click away. The more advanced you become, the more you will appreciate the multitude of fine tuning features abit's µGuru technology holds for you.
