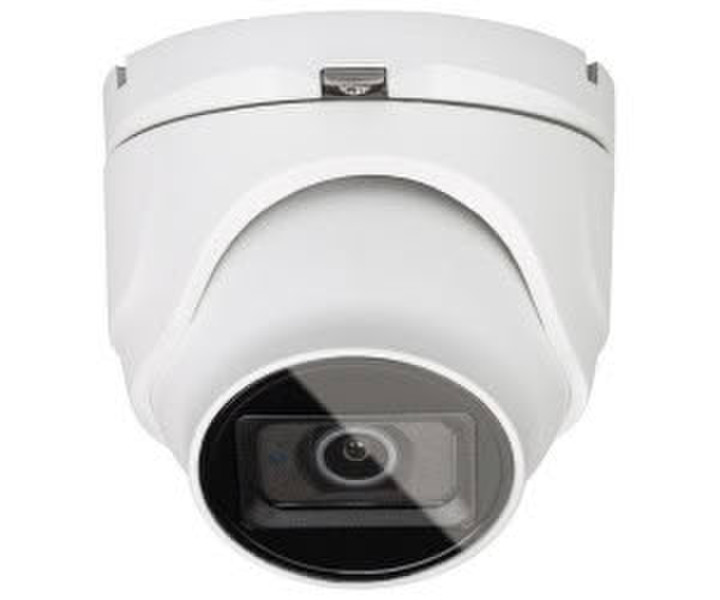

ABUS HDCC35500

Camera types: Dome camera, infrared camera, analog surveillance camera

Equipment
Video function: with night vision function
Number of cameras: 1
Connections: BNC, FBAS
Power supply: Network operation

Housing
Housing color: white
Mounting types: Surface mounting, ceiling mounting, wall mounting
Protection class: IP20
Areas of application: inside, outside
Temperature range: -40 to 60 °C
Weight: 300 g
Dimensions (W x H x D): 90 x 83 x 80 mm

Lens
Objective focal length: 2,8 mm
Lens properties: fixed focal length
Lens mount: M12
Light sensitivity IR: 0 Lux
Light sensitivity without IR: 0,01 Lux
Aperture: 1,2

Video & Image
IR range: 20 m
Resolution: 2.592 x 1.944 Pixel
Images per sec.: 20
horizontal field of view: 98 °
Sensor type: 1/2,7" Progressive Scan CMOS
Image sensor: 5 Megapixel
Image enhancements: Wide Dynamic Range (WDR), Backlight Compensation (BLC), Automatic White Balance (ATW), 3D Digital Noise Reduction (3D-DNR)
Video formats: HD-TVI
Video recordings: Color, HD

Further properties
Scope of delivery: Operating instructions, mounting hardware, drilling template, installation tool
suitable for: Darkness
