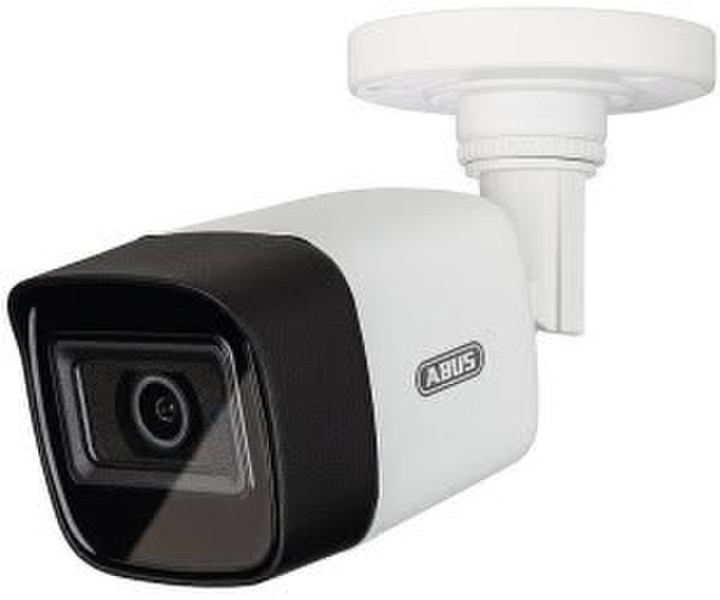

Camera types: Infrared camera, analog surveillance camera
Equipment
Functions: with notification function
Video function: with night vision function
Number of cameras: 1
Notification type: Email
Connections: BNC, FBAS
Power supply: Network operation
Housing
Housing color: white
Mounting types: Surface mounting, ceiling mounting, wall mounting
Protection class: IP20
Areas of application: inside, outside
Temperature range: -40 to 60 °C
Weight: 350 g
Dimensions (W x H x D): 154 x 59 x 56 mm
Lens
Objective focal length: 2,8 mm
Lens properties: fixed focal length
Lens mount: M12
Light sensitivity IR: 0 Lux
Light sensitivity without IR: 0,1 Lux
Aperture: 1,2
Video & Image
IR range: 20 m
Resolution: 2.592 x 1.944 Pixel
Images per sec.: 20
vertical field of view: 98 °
Sensor type: 1/2,7" Progressive Scan CMOS
Image sensor: 5 Megapixel
Image enhancements: Wide Dynamic Range (WDR), backlight compensation (BLC), strong light compensation (HLC), digital noise reduction (3D-DNR)
Video formats: HD-TVI, AHD
Video recording: HD
Further properties
Scope of delivery: Operating instructions, mounting hardware, installation tool, drilling template
suitable for: Darkness
