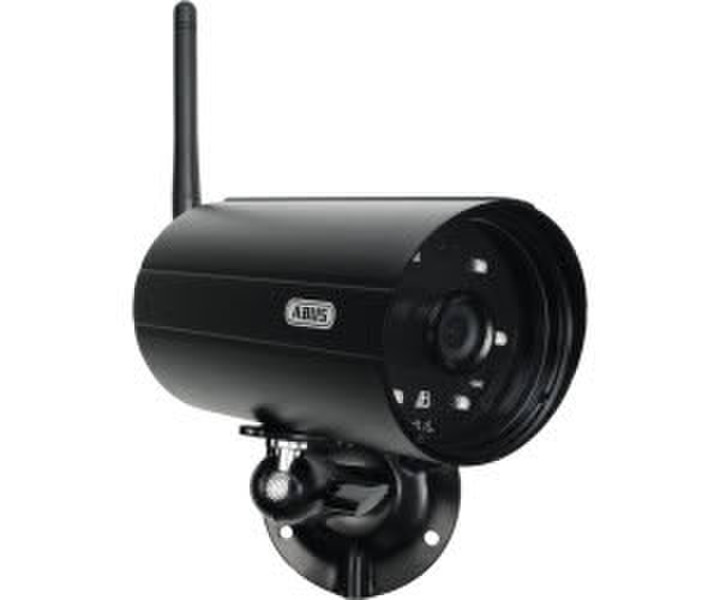

ABUS TVAC14010A

Camera types: Wireless surveillance camera, infrared camera

Equipment
Equipment: with microphone
Functions: IR-Cut Filter
Video function: with night vision function
Power supply: Mains operation

Housing
Housing color: black
Mounting types: Surface mounting, ceiling mounting, wall mounting
Protection type: IP20
Areas of application: inside, outside
Outdoor functions: weatherproof, dustproof
Temperature range: -10 to 50 °C
Weight: 390 g
Dimensions (W x H x D): 68 x 74 x 150 mm

Network
Wireless range (outdoor): 100 m
Frequency Range: 2400 MHz

Lens
Objective focal length: 3,6 mm
Lens properties: Fixed focal length

Video & Image
Infrared range: 5 m
Number of infrared LEDs: 6
Resolution: 640 x 480 Pixel
Images per sec.: 20
horizontal field of view: 60 degrees
Sensor Type: 1/4" CMOS
Image sensor: 0.3 Megapixel
Video Formats: MPEG-4
Video recordings: VGA, Color, Black and White

Further properties
Scope of delivery: Camera mount, Mounting material, Power supply, Antenna
Operating voltage: 5 V
suitable for: Darkness
Additional image resolution: 320 x 240 Pixel
