Video
| Video capturing speed |
30 fps |
Technical details
| Channels quantity |
20 |
| Maximum recording time |
70 h |
Ports & interfaces
| VGA (D-Sub) output ports |
1 |
| RS-485 ports |
1 |
| BNC input ports |
16 |
Hard drive
| Number of hard drives supported |
8 |
| Hard drive interface |
Serial ATA |
Additionally
| RS-232 port |
1 |
| Ethernet LAN (RJ-45) ports quantity |
1 |
16Ch, NTSC/PAL, 704x576, 1920x1080 Live, USB 2.0, BNC, Gigabit Ethernet
<b>Special product features:</b>
- Up to 16 analog + 8 ABUS network cameras (at VGA resolution) can be connected
- Real-time recording at full resolution: 4CIF @ 25 fps
- Status LED indicates the recorder status
- Installation wizard for easy initial start-up
- Up to eight S-ATA hard disk drives can be connected
- Redundant data recording
- Integrated VGS & HDMI output

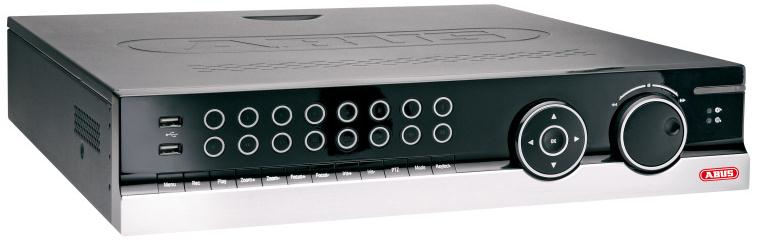

Increased performance for professional video recording: With the 16-channel HDRplus, ABUS Security-Center is setting new trends in hybrid video recording. Using the HDRplus, it is possible for the user to record all channels in full resolution and in real time - for even more precision and exact detail when replaying and analysing stored video data. This ability is in demand for applications with fast-moving scenes, such as in a casino (ball dropping, quick hand movements) - you can't afford to miss details of what occurred and all 25 frames per second count. With real-time recording, you will not miss any images or details. Additionally, the HDRplus also has the same functions and equipment features as the Eytron HDR, and with it the typical user-friendly recorder software from ABUS, plus the option of mobile image access using the iDVR application for iPhone. Mobile users can then access all of the cameras connected to the HDRplus from wherever they are. PTZ control is included, as is the option of storing up to 15 recorders and viewing up to 4 cameras live.
