Technical details
| Bandwidth |
6.75 Gbit/s |
| Type |
AV transmitter & receiver |
| Cable types supported |
Cat5e, Cat6 |
| Maximum transfer distance |
100 m |
| Audio system |
Multichannel |
Ports & interfaces
| Serial ports quantity |
1 |
| RJ-45 input ports |
2 |
| RJ-45 output ports |
4 |
| HDMI in |
4 |
| DC-in jack |
Y |
Weight & dimensions
| Receiver dimensions (WxDxH) |
112 x 76 x 23 mm |
| Transmitter dimensions (WxDxH) |
440 x 20 x 51 mm |
Additionally
| On/Off switch |
Y |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
UltraAV, HDMI, Audio/Video Matrix and Distribution Amplifier with HDBaseT
<b>For Use With HDMI HDTV's, Projectors & Home Theater Components</b>
The UltraAV HDMI Matrix and Distribution Amplifier with HDBaseT accepts signals from up to 4 HDMI enabled audio/video sources and distributes the signal to up to 4 HDMI enabled displays over a single Cat5e cable for each output. The matrix can be configured to send any input to any output, supporting all HDMI displays, monitors, projectors and TV’s.

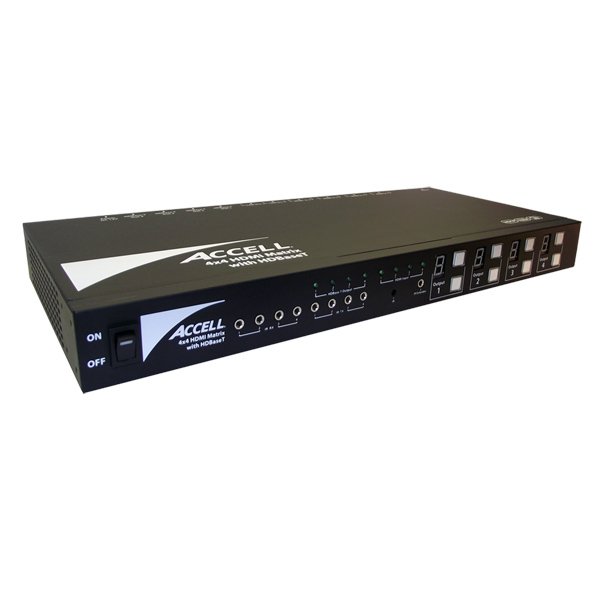

<b>4x4 HDMI Matrix with HDBaseT</b>
With the UltraAV 4x4 HDMI Matrix with HDBaseT, you can control the Matrix by using the included remote control, push-buttons or with a control system connected to the RS-232 port. The Matrix features HDBaseT technology, sending uncompressed HD audio, video, Ethernet and IR control signals of up to 326ft./100m over a single Cat5e cable.
<b>Over-Current and Over-Voltage Protection</b>
The circuit boards are equipped with both over-current and over-voltage protection and will automatically power down if encountered. The circuit boards will restore automatically once the excessive current or voltage has passed.
- Send 4 HDMI Sources Independently to 4 HDMI Displays
- Send HDMI, Ethernet and IR to 328ft. (100m) over Single Cat5e Cable
- Fully HDMI Compatible - Throughput up to 6.75Gbps (225 MHz)
- Works With HD Resolutions Including 1080p and 3D
- Operate Using Remote Control, Manual Push Button or RS-232
