Processor special features
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Clear Video Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Processor ARK ID |
28035 |
| Intel Trusted Execution Technology |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel Demand Based Switching |
Y |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
N |
| Intel vPro Technology |
N |
Ports & interfaces
| PS/2 ports quantity |
2 |
| Parallel ports quantity |
1 |
| Serial ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
Memory
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR2-SDRAM |
| Internal memory |
2 GB |
| ECC |
Y |
Processor
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
Y |
| Number of Processing Die Transistors |
582 M |
| Thermal Monitoring Technologies |
Y |
| Execute Disable Bit |
Y |
| Processor cache |
8 MB |
| Number of processors installed |
1 |
| Processor cores |
4 |
| Thermal Design Power (TDP) |
120 W |
| CPU multiplier (bus/core ratio) |
8 |
| Processor lithography |
65 nm |
| Processor package size |
37.5 mm |
| Processor front side bus |
1333 MHz |
| Conflict Free processor |
N |
| Processor cache type |
L2 |
| Physical Address Extension (PAE) |
32 bit |
| Bus type |
FSB |
| ECC supported by processor |
N |
| Tcase |
70 °C |
| Processor frequency |
2.66 GHz |
Other features
| Hard disk controller |
SATA/SAS |
Design
| Chassis type |
Tower |
| Optical drive type |
DVD-ROM |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| Processing die size |
286 mm² |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| InTru™ 3D Technology |
N |
| Intel AES New Instructions |
N |

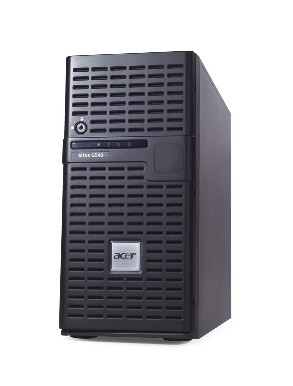

Altos G540 Xeon X5355 2.66GHz/1333 MHz/8MB, 2x1GB FBD 667, 1xSAS/SATA HDD cage (4 bays, second cage optional), SATA 6 ch on board, no HDD, DVD, 2xLAN gigabit onboard, EURO power cable, PS2 mouse, NO KB, EasyBuild 7.1
The Acer Altos G540 provides outstanding value to workgroups by combining scalable performance and new availability features at an affordable price. Advanced capabilities make the server easy to manage, which can help control IT expenses. Redundancy features such as redundant power supplies and native RAID solutions are offered on the Acer Altos G540. The G540 also offers you the possibility to upgrade to enterprise server features such as redundant arrays of storage, in a flexible and affordable manner.
Dual Core 64 Bit Performance
Flexible systems design methodologies allow you to configure the G540 to match your budget. The Acer Altos G540 is based the Intel Xeon 5000 Series processor with 64 Bit processing technology, This platform enables you to run tomorrows 64 bit applications and boost throughput using Dual Core technology. Indeed, the G540 is built to support next generation Quad Core processors when they become available. System performance can be scaled in line with your business growth, by the addition of a second processor. Redundant power supplies and redundant Hot-swap hard disk drives provide affordable performance and data protection. The G540 introduces Serial Attached SCSI technology to the Acer Altos Range, with throughputs of up to 3Gb/s per channel. The Acer Altos G540, as with all the Acer Altos family, is fully convertible from a tower to a rack mountable form factor.
Best in class redundancy and scalability solutions
The G540 allows you to configure the system, to adapt to your business requirements. Hot-swap features allow you to perform system maintenance without any system downtime.
- Native SATA Raid 0/1 support
- Optional SAS or SATA RAID 5 support
- Up to 8 Hot-swap hard disk drive support
- Up to 32GB of ECC DDR II Memory support
- Memory sparing and memory mirroring
- Hot-swap power supply support
- Six PCI slots to increase I/O bandwidth for improved performance and productivity
- Integrated Dual Gigabit Ethernet with fault tolerance
Easy to install and manage
Acer Easybuild simplifies the installation and set-up, by providing an intuitive GUI based process and by providing all relevant tools to set up your Acer Altos G540. Advanced Server Manager 7.1 software makes comprehensive systems management easy. ASM provides performance management and critical event management and remote console services to network administrators. These components help you control IT expenses by making the G540 simple and efficient to manage.
