Processor special features
| Processor ARK ID |
27219 |
| Intel Virtualization Technology (VT-x) |
Y |
| Intel Trusted Execution Technology |
N |
| Intel Flex Memory Access |
N |
| Intel Fast Memory Access |
N |
| Intel Rapid Storage Technology |
N |
| Intel 64 |
Y |
| Intel® Insider™ |
N |
| Intel® Quick Sync Video Technology |
N |
| Intel Enhanced Halt State |
Y |
| Intel Hyper-Threading Technology |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Dual Display Capable Technology |
N |
| Intel Clear Video Technology |
N |
| Intel® Turbo Boost Technology |
N |
| Intel Demand Based Switching |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel FDI Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel vPro Technology |
N |
| Intel Clear Video Technology for MID |
N |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
Processor
| Physical Address Extension (PAE) |
32 bit |
| Thermal Monitoring Technologies |
Y |
| Idle States |
Y |
| Execute Disable Bit |
Y |
| Processor cache |
4 MB |
| Thermal Design Power (TDP) |
80 W |
| Processor lithography |
65 nm |
| Processor package size |
37.5 mm |
| Number of processors installed |
1 |
| Maximum number of SMP processors |
2 |
| Conflict Free processor |
N |
| Physical Address Extension (PAE) |
Y |
| Processor cache type |
L2 |
| Processor operating modes |
64-bit |
| Embedded options available |
N |
| FSB Parity |
Y |
| Number of Processing Die Transistors |
291 M |
| Processor front side bus |
1333 MHz |
| CPU multiplier (bus/core ratio) |
9 |
| ECC supported by processor |
N |
| Tcase |
65 °C |
| Processor frequency |
3 GHz |
| Processor cores |
2 |
| Bus type |
FSB |
Other features
| Hard disk controller |
SATA |
Ports & interfaces
| Serial ports quantity |
1 |
| PS/2 ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
Memory
| ECC |
Y |
| Maximum internal memory |
32 GB |
| Internal memory type |
DDR2-SDRAM |
| Internal memory |
1 GB |
Networking
| Networking features |
Gigabit Ethernet |
Additionally
| InTru™ 3D Technology |
N |
| Processing die size |
143 mm² |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

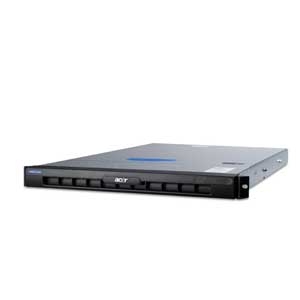

Altos R520, Rack 1U, Xeon 5160 3.0GHZ/1333/4MB, 1x1GB FBD 667, SATA 6ch on board (SW RAID 0,1,10), no DVD, no HDD, EURO power cable, 2x LAN gigabit on board, NO rack rail kit, no KB, no mouse, EasyBuild 7.1
The Acer Altos R520 is a value-packed, 1U server for Web and network infrastructures. The Acer Altos R520 is designed with all the performance a fast paced, fast growing front-end and single-function application demands in a 1U server The 1U size and the 2-way processor capability provide the customers with a highly available, rack-optimized solution for single function and front-end applications.
Exceptional price performance
Flexible systems design methodologies allow you to configure the Acer Altos R520 to match you’re the application requirement. The performance features include the Intel® Xeon® processor with Dual Core™ technology, Registered ECC DDR SDRAM DIMMs expandable to 16GB or 32GB for future investment protection. In addition, the increased number of memory channel increases the memory throughput performance fourfold over the previous generation product. The Acer Altos R520 introduces 2.5 inch disk drive technology, in both SATA and Serial Attached SCSI (SAS) variants. Modular system designs support an upgradeable RAID 5 path and also the ability to switch between PCI Express and legacy PCI interfaces.
Rack optimised
The Acer Altos R520 is a rack optimised solution, which will integrate smoothly into any standards based computing environment. When you're adding an Acer Altos R520 server to your existing network, you can do so with confidence, knowing that your server is built using proven Acer and Intel® technologies. Acer also offers a full range of Acer Altos rack equipment, which is designed for highest serviceability and optimum manageability.
Easy to install and manage
Acer Easybuild simplifies the installation and set-up, by providing an intuitive GUI based process and by providing all relevant tools to set up your Acer Altos R520. Advanced Server Manager Software makes comprehensive systems management easy. ASM provides performance management and critical event management services to network administrators.These components help you control IT expenses by making the Acer Altos R520 simple and efficient to manage.
