Other features
| Link/Act LED |
Y |
| Connectivity LEDs |
Y |
| Networking features |
Gigabit Ethernet |
Processor
| Number of processors installed |
1 |
| Processor cache |
0.512 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
10 W |
| Physical Address Extension (PAE) |
32 bit |
| Processor package size |
22 mm |
| Processor ARK ID |
43517 |
| Processor code |
SLBMH |
| Processor cache type |
L2 |
| Memory bandwidth supported by processor (max) |
6.4 GB/s |
| Conflict Free processor |
N |
| Tjunction |
100 °C |
| Processor operating modes |
64-bit |
| L2 cache |
0.5 MB |
| Stepping |
A0 |
| Processor cores |
1 |
| Processor frequency |
1.66 GHz |
| Maximum internal memory supported by processor |
4 GB |
| ECC supported by processor |
N |
| Bus type |
DMI |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Number of Processing Die Transistors |
123 M |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Intel Enhanced Halt State |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Storage
| Maximum supported storage capacity |
8 TB |
| Hard drive speed |
7200 RPM |
| Total installed storage capacity |
2000 GB |
| Storage drive capacity |
1000 GB |
| Number of storage drives installed |
2 |
| Number of storage drives supported |
4 |
Memory
| Maximum RAM supported |
2 GB |
| Flash memory |
256 MB |
Power
| Power supply unit (PSU) capacity |
220 W |
Networking
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Additionally
| Processing die size |
66 mm² |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Internal RAM |
2 GB |
| Transfer rate (Mbps) |
1000 Mbit/s |

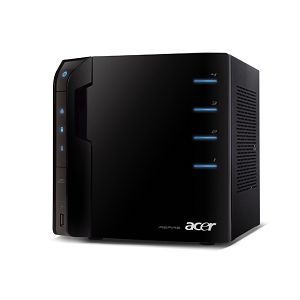

Acer Aspire easyStore H341. Total installed storage capacity: 2000 GB, Storage drive interface: Serial ATA, Storage drive capacity: 1000 GB. Processor family: Intel® Atom™, Processor model: D410, Processor frequency: 1.66 GHz. Internal RAM: 2 GB, Maximum RAM supported: 2 GB, Flash memory: 256 MB. Compliance industry standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, Data transfer rate (max): 1000 Mbit/s. Operating system installed: Windows Home Server
