Networking
| Modem speed |
56 Kbit/s |
| Wi-Fi |
N |
Other features
| Modem type |
V.92 |
| Floppy drive installed |
N |
| TV tuner integrated |
N |
| Networking features |
Gigabit Ethernet |
| Graphics adapter family |
NVIDIA |
Ports & interfaces
| DVI port |
N |
| Modem (RJ-11) ports |
1 |
| PS/2 ports quantity |
2 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Processor special features
| Intel 64 |
Y |
| Intel Rapid Storage Technology |
N |
| Intel Fast Memory Access |
N |
| Intel Flex Memory Access |
N |
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Physical Address Extension (PAE) |
36 bit |
| Processor package size |
42.5 mm |
| Processor ARK ID |
37148 |
| Processor code |
SLBCK |
| Intel® Quick Sync Video Technology |
N |
| Intel® Insider™ |
N |
| Intel Clear Video Technology |
N |
| Intel Dual Display Capable Technology |
N |
| CPU configuration (max) |
1 |
| Embedded options available |
N |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel® Anti-Theft Technology (Intel® AT) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
Y |
| Intel Enhanced Halt State |
Y |
| Intel® My WiFi Technology (Intel® MWT) |
N |
| Intel Clear Video Technology for MID |
N |
| Intel vPro Technology |
N |
| Intel VT-x with Extended Page Tables (EPT) |
Y |
| Intel FDI Technology |
N |
| Enhanced Intel SpeedStep Technology |
Y |
| Intel Demand Based Switching |
N |
| Intel® Wireless Display (Intel® WiDi) |
N |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
N |
| Supported instruction sets |
SSE4.2 |
Packaging content
| Display included |
N |
| Handheld remote control |
N |
Processor
| Processor boost frequency |
3.20 GHz |
| Number of QPI links |
1 |
| Processor cache |
8 MB |
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
130 W |
| Processor codename |
Bloomfield |
| Conflict Free processor |
N |
| FSB Parity |
N |
| CPU multiplier (bus/core ratio) |
22 |
| Processor operating modes |
64-bit |
| Stepping |
C0 |
| Processor cores |
4 |
| Processor frequency |
2.93 GHz |
| Tcase |
67.9 °C |
| ECC supported by processor |
N |
| Bus type |
QPI |
| Memory bandwidth supported by processor (max) |
25.6 GB/s |
| Maximum internal memory supported by processor |
24 GB |
| Processor front side bus |
1600 MHz |
| Processor cache type |
Smart Cache |
| Number of Processing Die Transistors |
731 M |
Graphics
| On-board graphics adapter |
N |
| Discrete graphics adapter model |
NVIDIA GeForce GTX 260 |
Performance
| Audio output channels |
7.1 channels |
| Audio system |
HD Audio |
Memory
| Memory layout (slots x size) |
3 x 2 GB |
| Memory slots |
6x DIMM |
| Maximum internal memory |
12 GB |
| Internal memory |
6 GB |
| Internal memory type |
DDR3-SDRAM |
Optical drive
| Optical drive type |
DVD Super Multi |
Storage
| Total storage capacity |
1000 GB |
| Card reader integrated |
Y |
| Hard drive interface |
Serial ATA |
Additionally
| InTru™ 3D Technology |
N |
| Ethernet LAN connection |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| System bus data transfer rate |
4.8 GT/s |
| Processing die size |
263 mm² |
Windows Vista Home Premium (64-bit);Intel Core i7-940 Processor (8MB L2 cache, 2.93GHz, 4.80 GT/s Intel QPI) ;6GB (2/2/2/0/0/0) DDR3 SDRAM;1TB SATA hard drive (up to four supported), Super-Multi drive, multi-in-one card reader;One discrete NVIDIA GeForce GTX 260 graphics card (up to two supported);Gigabit LAN, V.92 modem

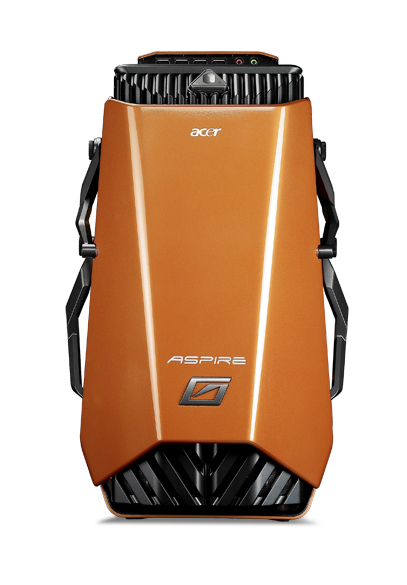

The Aspire Predator's bulging, muscular body pushes the boundaries of case design to make an immediate impression on anyone. A solid exterior and mechanical front cover maintain a strong, one-piece look. Lifting the lid transforms the machine into a fierce hi-tech wonder, complete with blue LEDs and claw-like ODD doors. Hidden beneath the attractive blue glow is the Acer EasySwap HDD cage, conveniently located for fast expansion and replacement of hard drives. RAID capable, EasySwap technology offers hot-swap functionality when RAID is enabled. Radical angles dance across the orange surface, contrasting with the rugged, patterned black under-layer. A triangular power button and convenient front-mounted USB and audio ports, as well as a built-in 14-in-1 card reader, place key controls and jacks right at your fingertips. The Predator is prepared to rip into the most extreme action out there -- are you?
To the upper limits and beyond - Overclocking
Intel® Core™2 Extreme, two-way/three-way NVIDIA® SLI®, 8 GB of DDR2 RAM, could the Aspire Predator get any faster? Well, yes. Acer's Aspire Predator offers minimum risk overclocking capabilities, so you can fiddle, tweak, and push it to the limits of performance. NVIDIA® nTune™ technology offers easy overclocking, and underclocking management for your system. nTune automatically detects the application running and dynamically optimizes the PC settings. Faster than tuning by hand, nTune delivers optimal settings for bus speeds, HyperTransport, memory timings, CPU registers, fans, and voltages in a safe, easy-to-use Microsoft® Windows® interface. The Aspire Predator was designed to be pressed, and comes with a CMOS hard reset on the rear of the computer. Using this hard-reset you can restore your CMOS settings to the factory defaults in the event that tweaking with the settings causes the computer to shutdown.
Complete cool system - What is liquid cooling?
Liquid cooling offers significant performance advantages to traditional, fan-based cooling methods. Using a constant flow of water and rear-mounted heatsink, liquid cooling ensures your CPU runs cool even under the most demanding conditions. Additionally, the design requires only one large, slower-moving fan for the entire case, which greatly reduces system noise. The Acer Aspire Predator features a two-part liquid cooling design for completely cool system performance. The rear-mounted heat sink connects to a pump located on the CPU, while copper pipes use natural entropy to cool the MOSFET, North Bridge, South Bridge and PCIe Expander. A quiet-running case fan tops off this system so you can confidently push the limits of gaming and entertainment.
Superior storage and expansion
Expansive storage The Aspire Predator features a wealth of ports, slots and jacks so you never have to even think about where to plug-in your various devices. Nine USB ports, six audio jacks with 7.1-channel and SPDIF support, a 14-in-1 card reader, two external eSATA ports and a front-mounted Acer EasySwap HDD cage, provide tremendous room for storage and expansion. Acer EasySwap HD The Acer EasySwap HDD cage makes switching hard-drives easy for great expansion and simple exchange. Mounted behind an illuminated door, EasySwap allows up to four 3.25" hard drives to be simultaneously used. Easy to switch, you can save movies, games, music and more on multiple HDDs, and switch them in a snap. Want to save ten movies on an HDD, and then take it to your friend's house to enjoy? No problem!
