Storage
Number of storage drives supported |
2 |

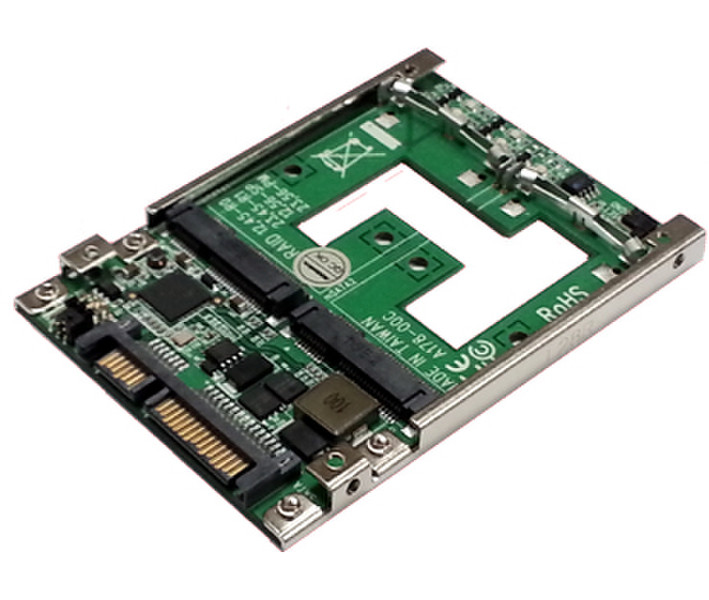

Dual mSATA - SATA Adapter, 6.35 cm (2.5 ") , RAID 1, 41 g
This Dual mSATA - SATA Adapter is designed to enable two mSATA (mini SATA) SSDs to be installed into the space of a 2.5" hard drive. The two mSATA SSD can be configured to form a single RAID volume and used as a direct replacement for the 2.5" SATA hard drive. The Dual mSATA - SATA adapter is capable of performance up to 6 Gbps and allows the mSATA card to be used as bootable SSD. The adapter comes with two 7 mm height mounting rails that have the same mounting holes location as on standard 2.5" hard drive. As a result, any equipment such as Notebook computer that uses a 2.5" SATA hard drive as thin as 7 mm., can be easily replaced with the low power, high performance and shock resistant mSATA card, When connecting to a Port Multiplier compatible SATA port, the two mSATA SSDs can also be set up to operate as two independent drives.
- Install up to two mSATA (mini SATA) SSDs
- The two mSATA cards can be configured as RAID ), RAID 1, BIG DRIVE (SPAN) or as two individual drives*
- The resulted RAID volume can be used as direct replacement for 2.5" hard drive
- Maximum height: 7 mm including the mSATA card
- Support maximum data transfer of 6 Gbps when connects to SATA III port
- Can be the primary bootable device containing the OS and applications
- No special tool required to mount the mSATA cards onto the adapter
- OS independent with no software driver to install
