Ports & interfaces
FireWire 400 |
N |
FireWire 800 |
N |
Interface |
eSATA |
eSATA ports quantity |
1 |
Storage
Card reader integrated |
N |
Number of storage drives supported |
4 |
Hot-swap |
Y |
System requirements
Minimum hard disk space |
10 MB |
Minimum RAM |
32 MB |
Minimum processor |
Pentium |

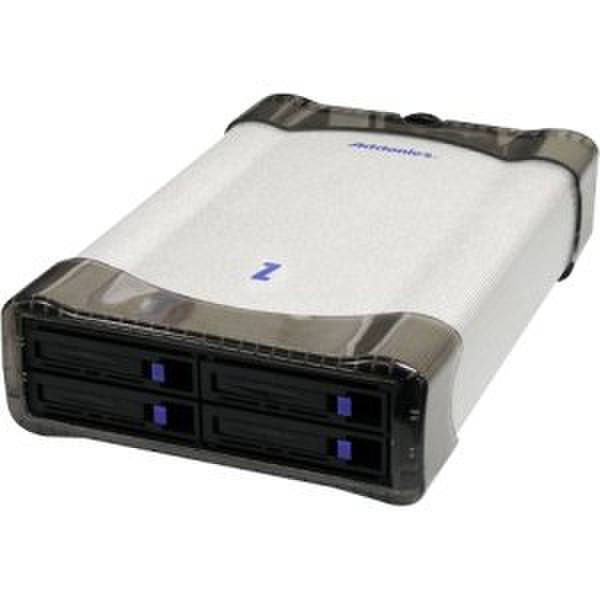

F / 4 x 2.5" HDD, SATA, w/5x1 eSATA Port Multiplier, RAID 0/1/5/10/JBOD, USB, 3 ft eSATA Cable, Aluminum
Looking for a high performance external storage device with expandable capacity and RAID capability? The Z Disk Array is just the perfect solution. Utilizing the latest SATA technologies, the Z Disk Array offers the fastest external storage performance with data throughput up to 3Gbps via either a single eSATA or Multilane connection to a computer. By integrating the Addonics latest 2.5" Disk Array and a SATA Port Multiplier or Multilane connector into the the compact Z drive enclosure, up to 4 SATA hard drives or SSDs can be installed to the Z Disk Array via the 4 convenient removable drive trays. You can swap drives in and out of the Z Disk Array, just like using tape cassette. You can also start with as little as 1 hard drive and expand to 2, 3 or 4 drives to meet the need of your application.
When connecting the Z Disk Array to an eSATA or Multilane RAID controller, the 4 hard drive inside the Disk Array can be set up as a RAID set, combined together to form 1 large volume hard drive or use as 4 independent drives. The eSATA connection can also converted to the latest USB 3.0 connection using the optional USB 3.0 - eSATA adapter. Constructed in a light weight sturdy aluminum housing with an integrated cooling fan for efficient heat dissipation, the Z Disk Array is a great portable storage solution for a wide range of applications that demand high performance and large amount of storage out in the field.
Z Disk Array with integrated regular 5x1 eSATA Port Multiplier
Work with PM compatible controller only. The 4 drives in the Disk Array can be set up as RAID 0, 1, 5, 10, JBOD when connected to a PM compatible RAID controller or as individual drives via USB port.
Package content: Z Disk Array with built-in regular Port Multiplier, 110/220 AC/DC 12/5V power adapter (AAP12V5V2.5A), 3 ft. eSATA -eSATA cable, user guide.
Optional USB 3.0 - eSATA adapter (ADU3ESA)
